CONFIGURATION

161

7. Press Threshold from the lower

bezel to edit the High and Low
threshold.

Range

High: -XXV~XV

Low: -XXV~XXV

Set to TTL 1.4V

Set to ECL -1.3V

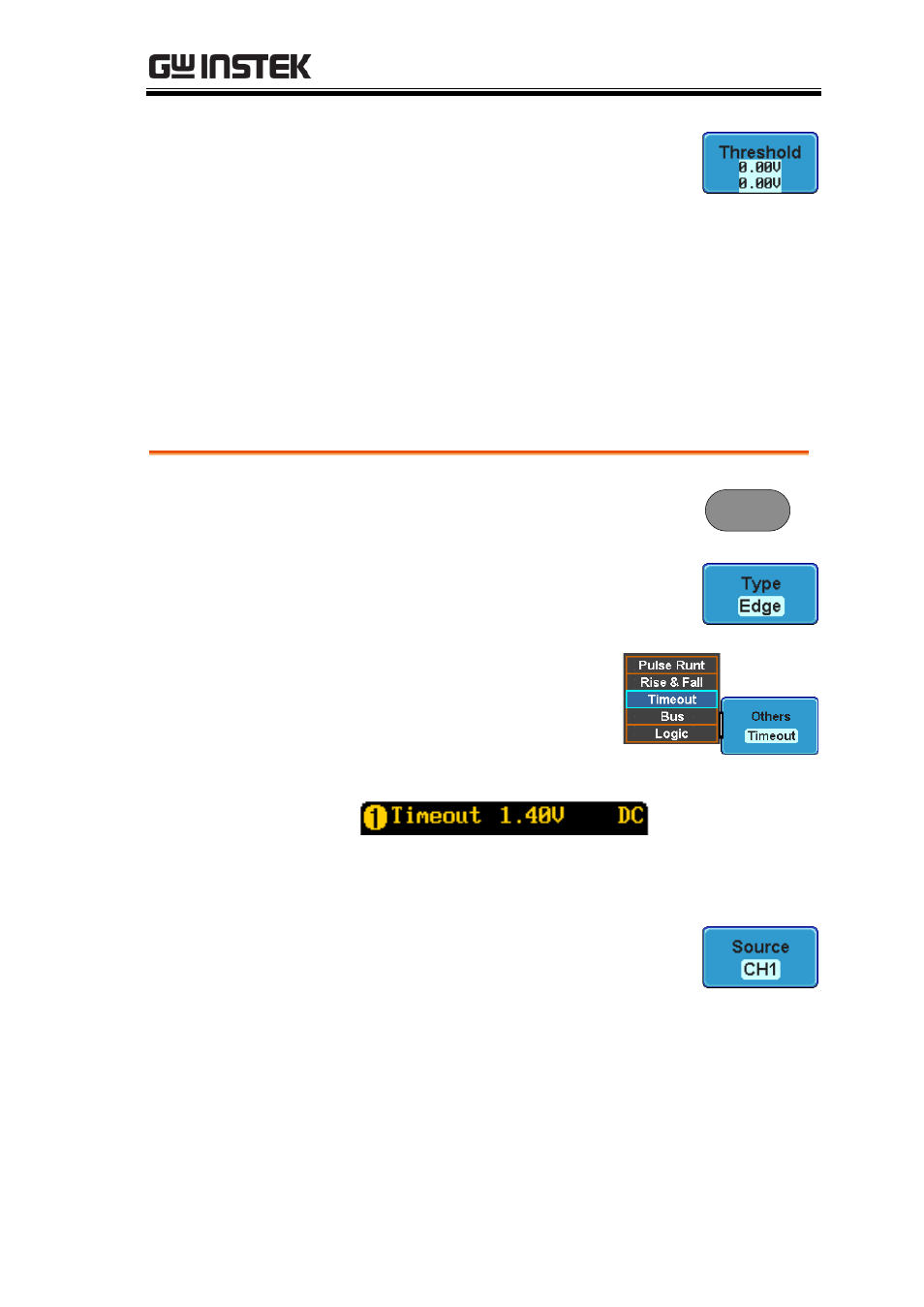

Using the Timeout Trigger

Panel Operation

1. Press the trigger Menu key.

Menu

2. Press the Type key from the lower

bezel menu.

3. Select Others

Timeout

from the side menu. The
Timeout indicator appears
at the bottom of the
display.

From left: Source, Trigger type, threshold
level, coupling

4. Press Source from the lower menu.

Use the side menu to select a source.

Range

Channel 1 ~ 4, D0~D15, EXT (Ext
Probe: Volt/Current, Attenuation:
1mX~1kX ), AC Line
