GDS-2000A Series User Manual

218

H

ARDCOPY KEY

The Hardcopy key is used as quick-save or quick-print key. The
Hardcopy key can be assigned either to printout screenshots or to
save files.
When assigned to “Print” the screen image can be printed to a
PictBridge compatible printer using the USB device port. To reduce
the amount of printer ink used for each print, images can be
printed using the Ink Saver function.
When assigned to “Save”, pressing the Hardcopy key can be used
to save a screen shot, a waveform, or the current setup, depending
on the configuration.

Printer I/O Configuration

Panel Operation

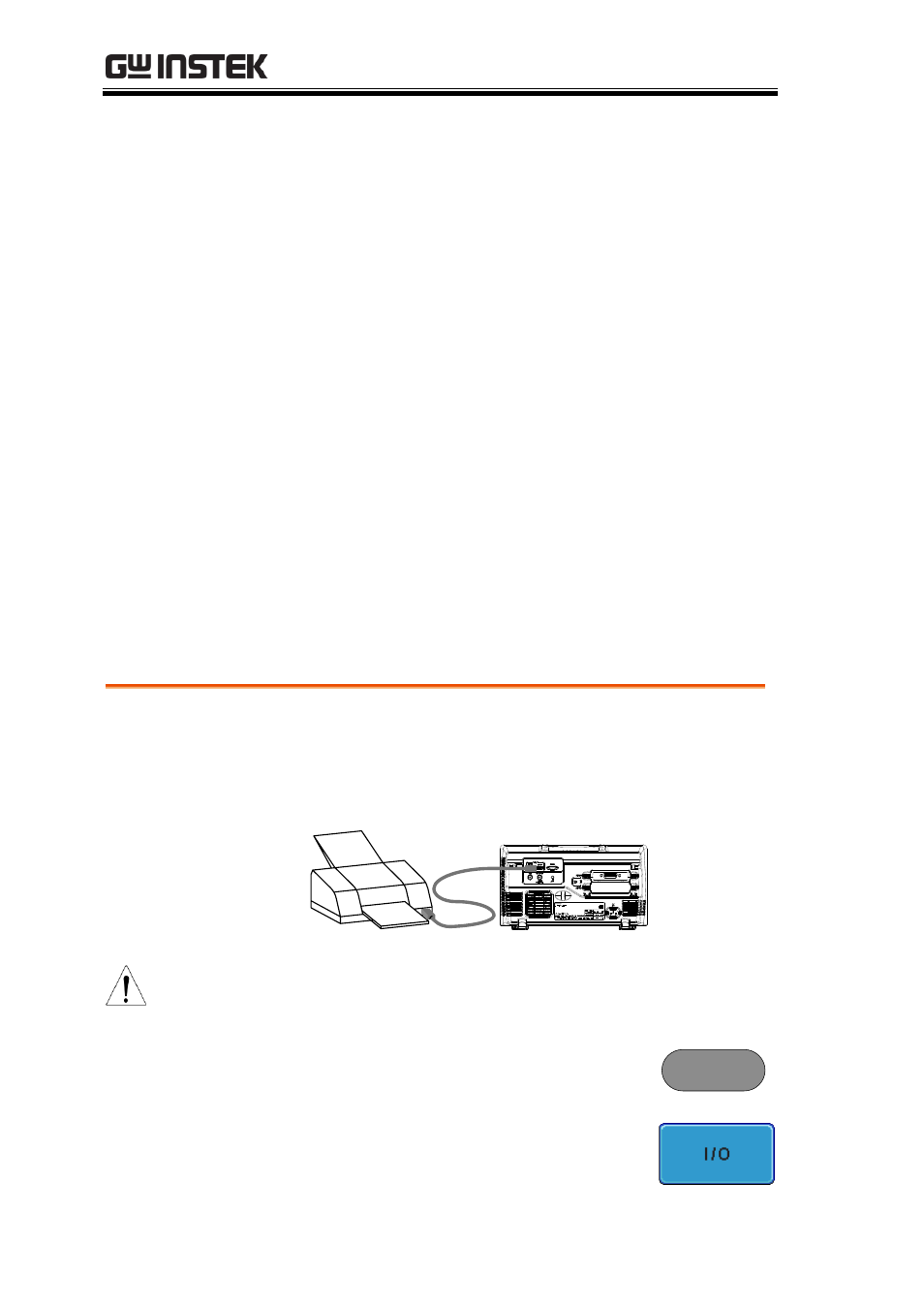

1. Connect a PictBridge printer to the USB device

port on the rear panel.

Note

The USB Device port on the rear panel cannot be used
concurrently with the USB Host port on the rear panel.

2. Press the Utility key.

Utility

3. Press I/O from the bottom menu.
