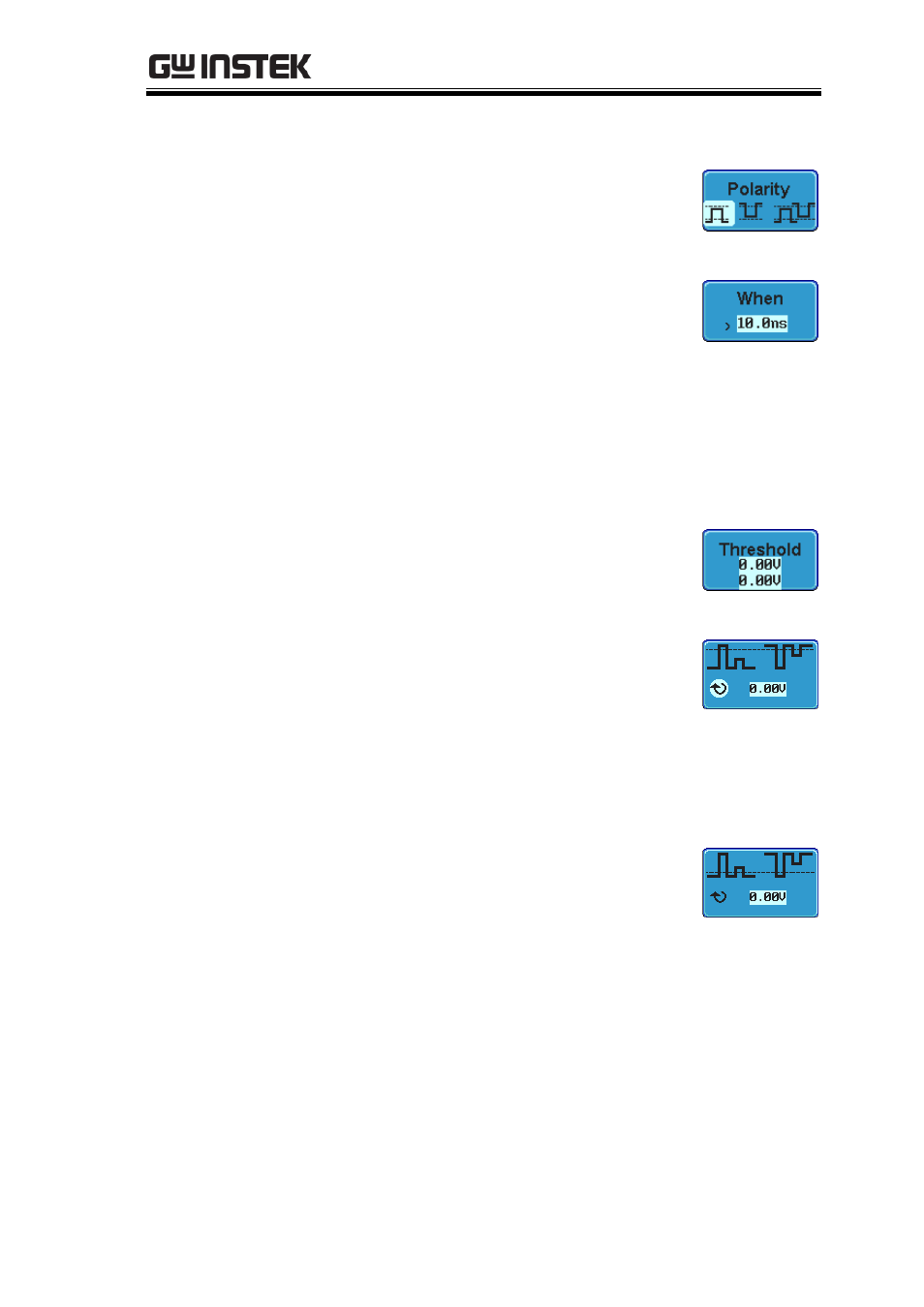

CONFIGURATION

159

Range

Channel 1 ~ 4

5. Press Polarity to toggle the polarity.

Range

Rising edge, falling edge, either.

6. Press When from the lower menu.

Then use the side menu to select the condition
and width.

Condition

> , < , = , ≠

Width

10ns ~ 10s

7. Press Threshold from the lower

bezel to edit the threshold for the
upper and lower threshold.

8. Use the side menu to set the upper

threshold.

Range

-XXV~XXV
Set to TTL 1.4V
Set to ECL -1.3V

9. Use the side menu to set the lower

threshold.

Range

-XXV~XXV
Set to TTL 1.4V
Set to ECL -1.3V
