Search

The search feature can be used to search for events on both the
analog and digital input channels. The events that can be searched
for are similar to the events that are used for the trigger system. The
only difference is that the search feature uses the measurement
threshold levels rather than the trigger level to determine events.

Configuring Search Events

Background

Similar to configuring the trigger system, the
Search events must first be configured before they
can be found.

Luckily the trigger system configuration settings
can also be used for the search events. The types of
searches are listed below. Please note that a full
description of the events can be found in the
Trigger section on page 144.

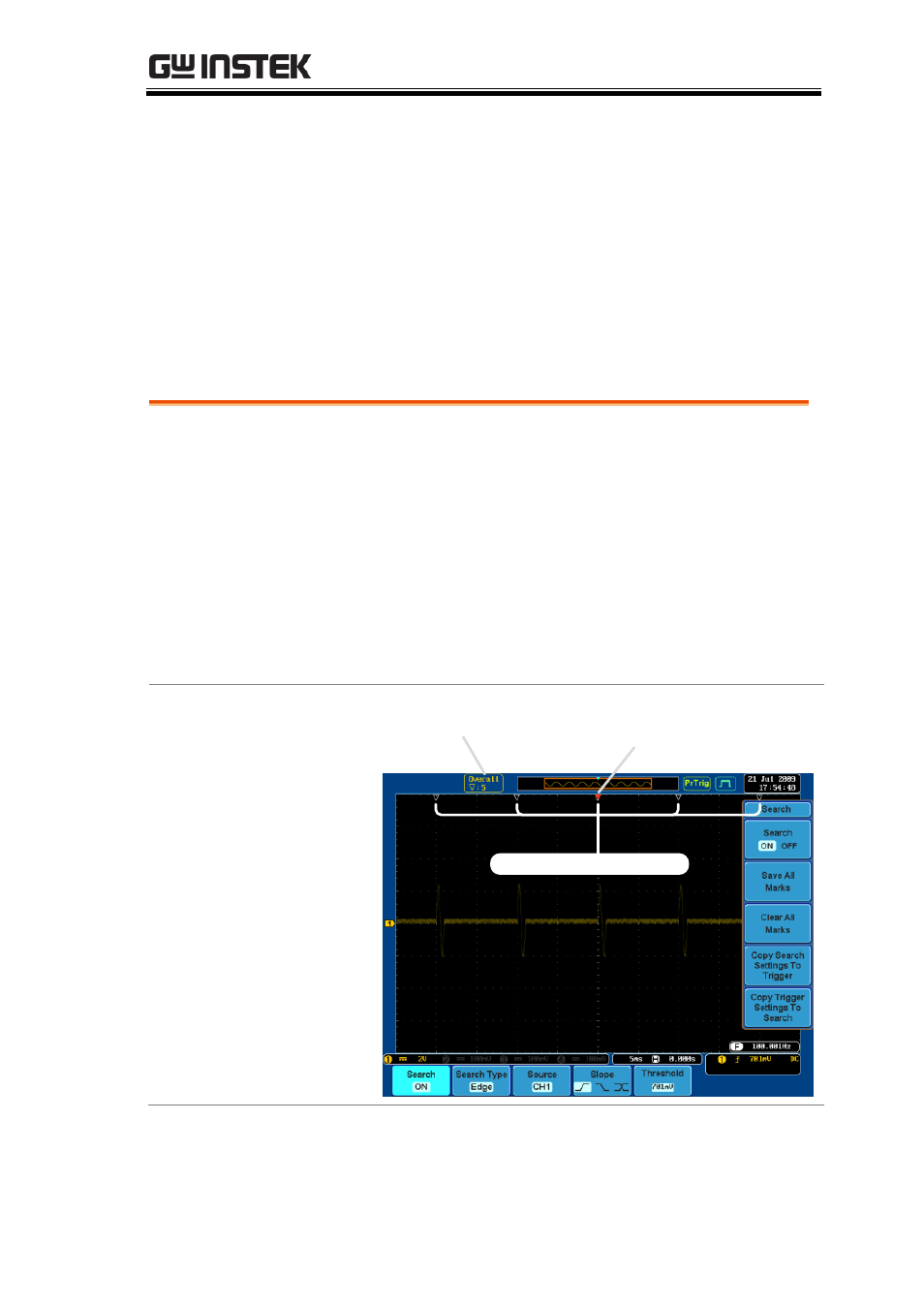

Display

Number of

search events

Search event markers

Trigger point
