CONFIGURATION

107

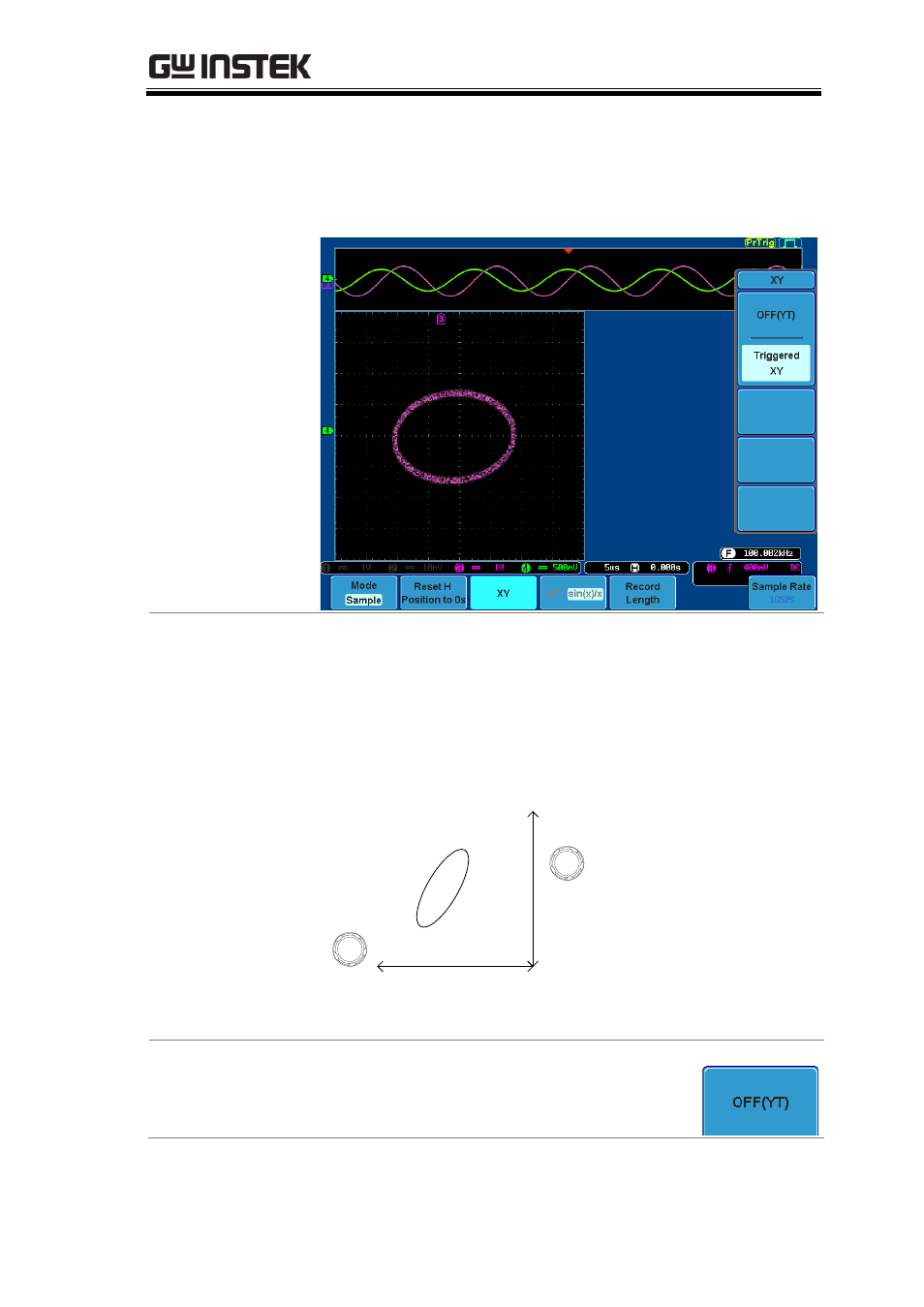

X-Y mode is split into two windows. The top window
shows the signals over the full time range. The bottom
window shows XY mode.

To move the X Y waveform position, use the
vertical position knob: Channel 1 knob moves the
X Y waveform horizontally, Channel 2 knob moves
the X Y waveform vertically. Similarly, the X2 and
Y2 axis can be positioned using the channel 3 and
channel 4 vertical position knobs.

POSITION

CH1

POSITION

CH2

The horizontal position knob and Time/Div knob can
still be used under the XY mode.

Turn Off XY Mode

To turn off XY mode, choose OFF (YT)
mode.
