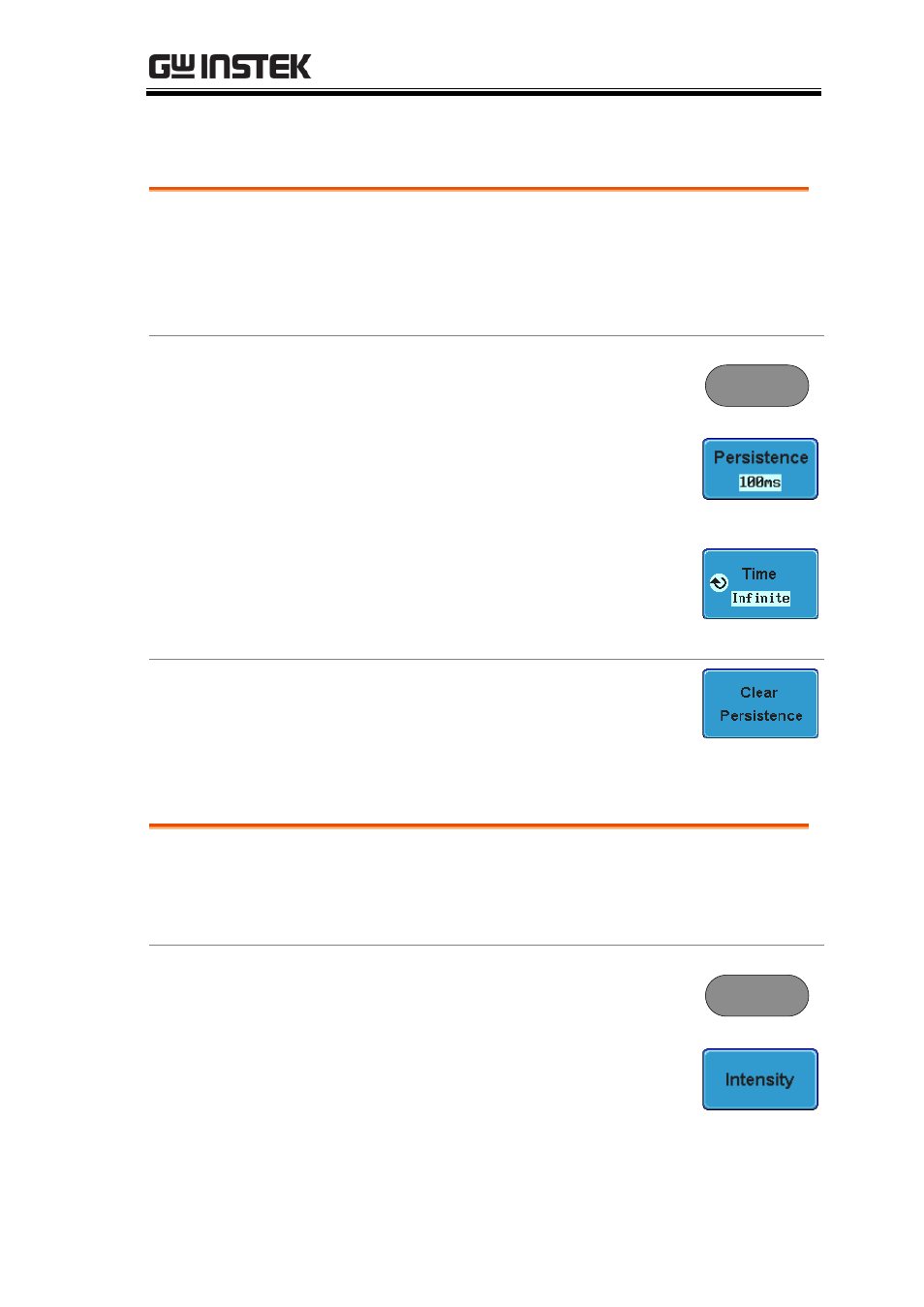

background image

CONFIGURATION

125

Set the Level of Persistence

Background

The persistence function allows the GDS-2000A to
mimic the trace of a traditional analog oscilloscope.
A waveform trace can be configured to “persist”
for designated amount of time.

Panel Operation

1. Press the Display menu key.

Display

2. To set the persistence time, press

the Persistence menu button on the
bottom bezel.

3. Use the Variable knob to select a

persistence time.

Time

16ms~10s, Infinite, Off

Clear

To clear persistence, press Clear
Persistence
.

Set the Intensity Level

Background

The intensity level of a signal can also be set to
mimic the intensity of an analog oscilloscope by
setting the digital intensity level.

Panel Operation

1. Press the Display menu key.

Display

2. Press Intensity from the bottom

menu.

Waveform
Intensity

3. To set the waveform intensity, press Waveform

Intensity and edit the intensity.
