GETTING STARTED
21

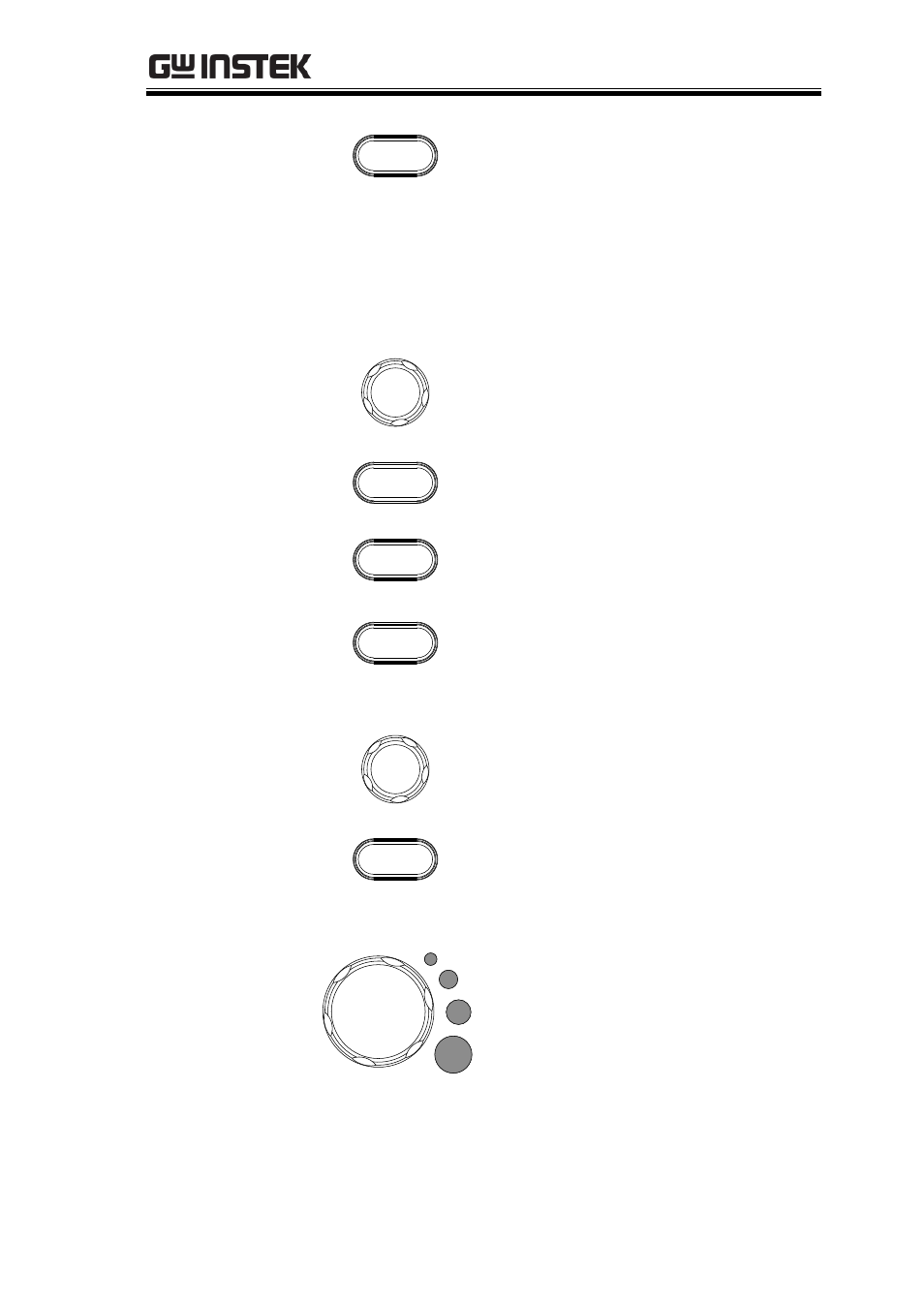

Set/Clear
Set/Clear
Use the Set/Clear key to set or
clear points of interest when using
the search function.
Trigger Controls The trigger controls are used to control the trigger
level and options.
Level Knob LEVEL Used to set the trigger level.
Trigger Menu Key
Menu
Used to bring up the trigger menu.
50% Key
50 %
Sets the trigger level to the half
way point (50%).
Force - Trig
Force-Trig
Press to force an immediate trigger
of the waveform.
Vertical
POSITION POSITION Sets the vertical position of the
waveform.
Channel Menu
Key
CH1
Press the CH1~4 key to set and
configure the channel.
VOLTS/DIV Knob VOLTS/DIV Sets the vertical scale of the
channel.
