Zoom waveform horizontally – GW Instek GDS-2000A series User Manual User Manual
Page 133
CONFIGURATION
133
Zoom Waveform Horizontally
Background

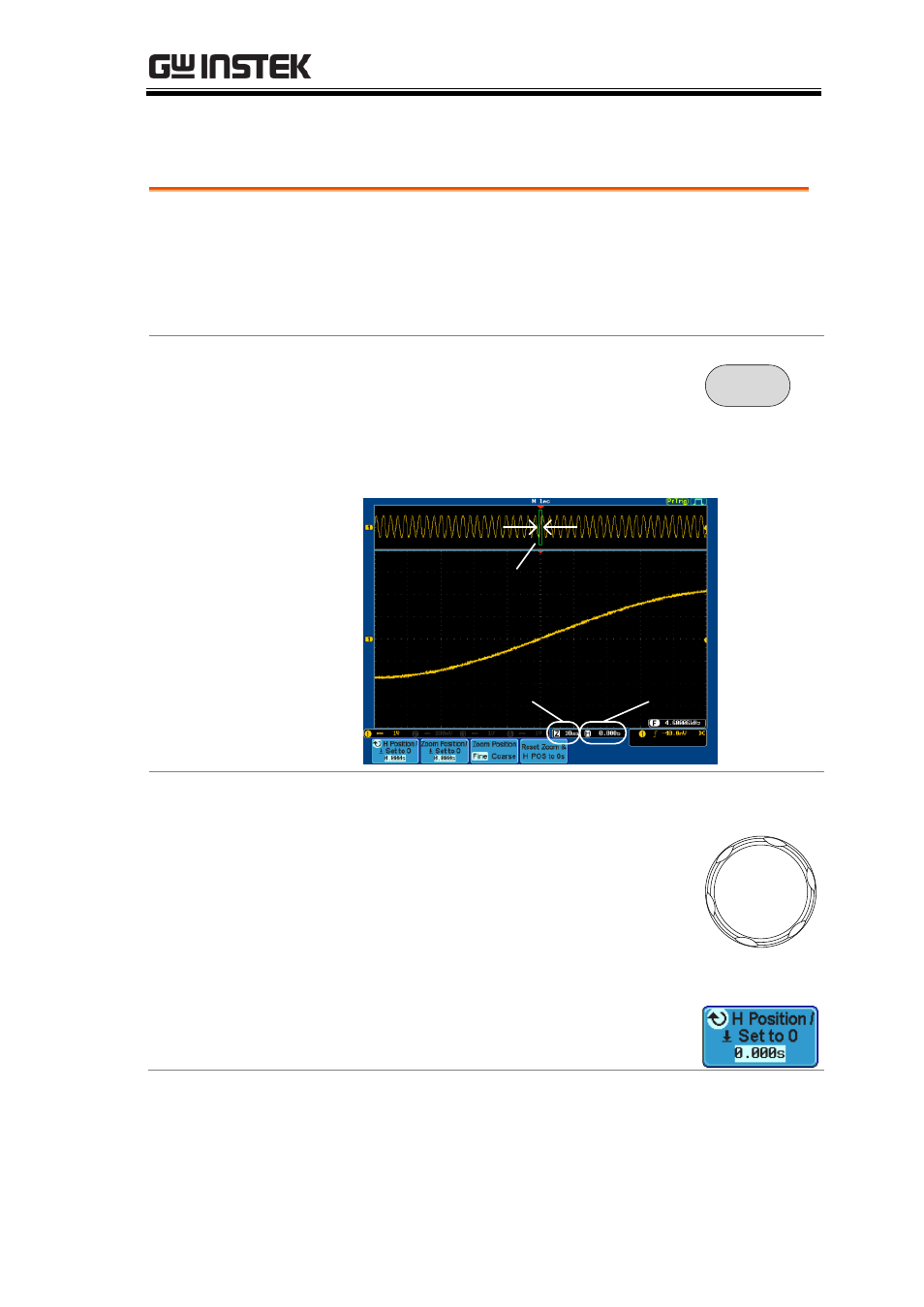

When in Zoom mode, the screen is split into 2
sections. The top of the display shows the full
record length, with the bottom of the screen
showing the normal view.
Panel Operation
1. Press the Zoom key.
Zoom
2. The Zoom mode screen appears.
Zoom time
base
Horizontal
position
Zoom
window
Horizontal
Navigation
To scroll the waveform left or right,
use the Variable Position knob.
VARIABLE
To reset the horizontal position, press
H Position/Set to 0.
