GDS-2000A Series User Manual
74

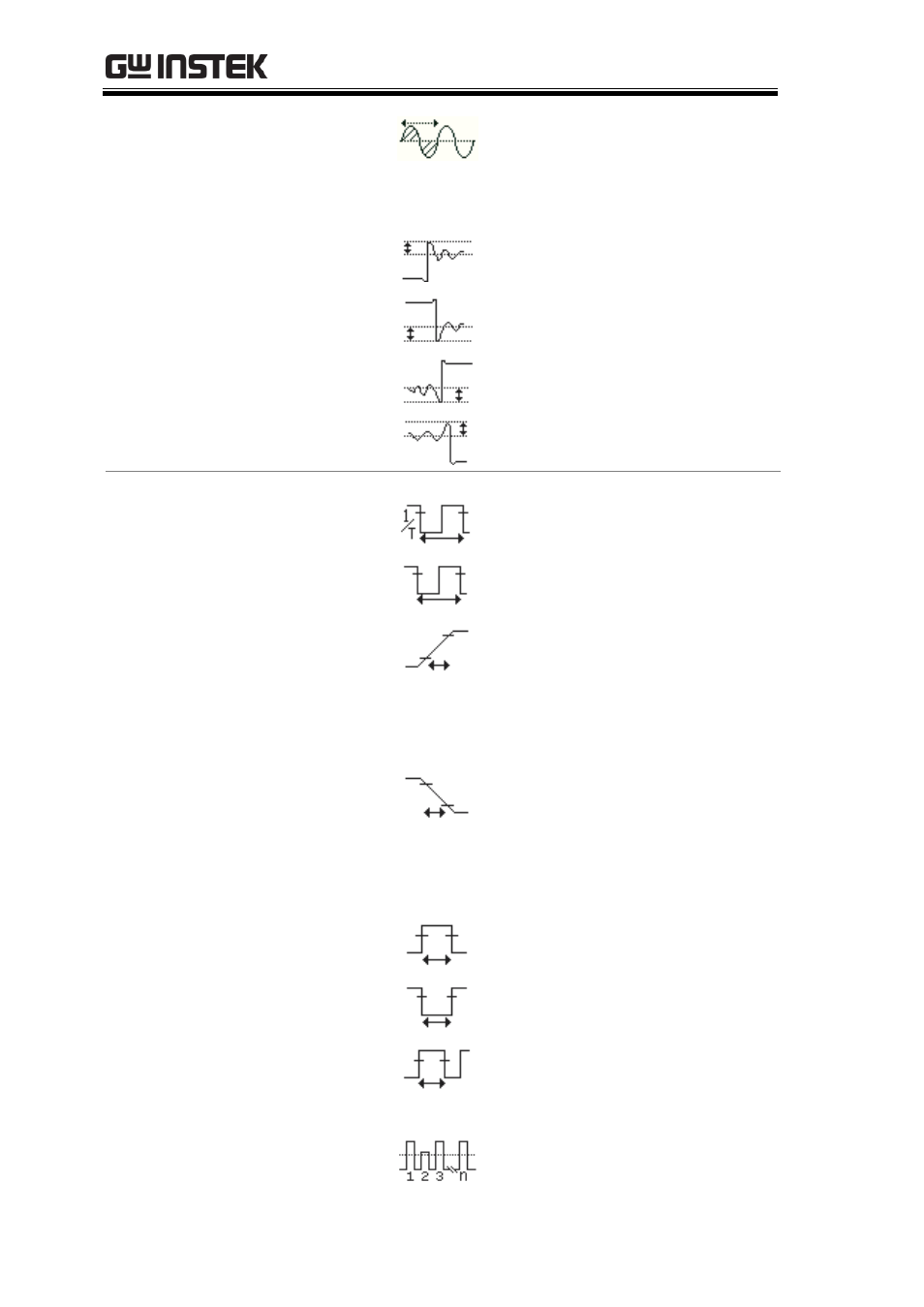

Cycle Area The Summation based on all
data samples within the first
cycle found in the gated
region.
ROVShoot Rise overshoot
FOVShoot Fall overshoot
RPREShoot Rise preshoot
FPREShoot Fall preshoot
Time
Measurement Frequency Frequency of the waveform.
Period Waveform cycle time.
(=1/Freq)
RiseTime The time required for the
leading edge of the first
pulse to rise from the low
reference value to the high
reference value.
FallTime The time required for the
falling edge of the first pulse
to fall from the high
reference value to the low
reference value.
+Width Positive pulse width.
–Width Negative pulse width.
Duty Cycle Ratio of signal pulse
compared with whole cycle.
=100x (Pulse Width/Cycle)
+Pulses Measures the number of
positive pulses.
