GDS-2000A Series User Manual

128

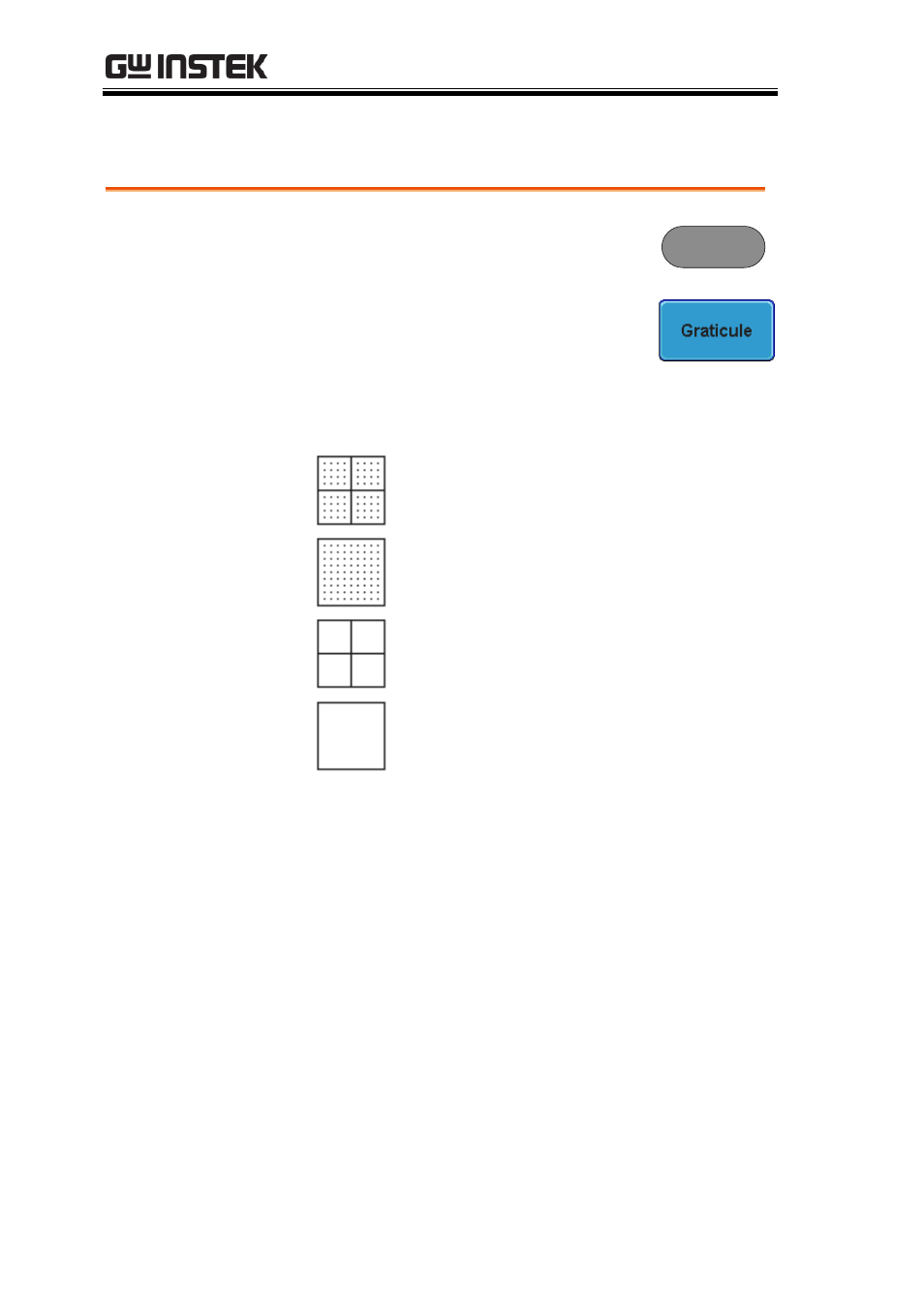

Select Display Graticule

Panel Operation

1. Press the Display menu key.

Display

2. Press Graticule from the bottom

menu.

3. From the side menu choose the

graticule display type.

Full

: Shows the full grid; X and Y axis

for each division.

Grid

: Show the full grid without the X

and Y axis.

Cross Hair

: Shows only the center X

and Y frame.

Frame

: Shows only the outer frame.
