OPTIONAL SOFTWARE and APPS.

179

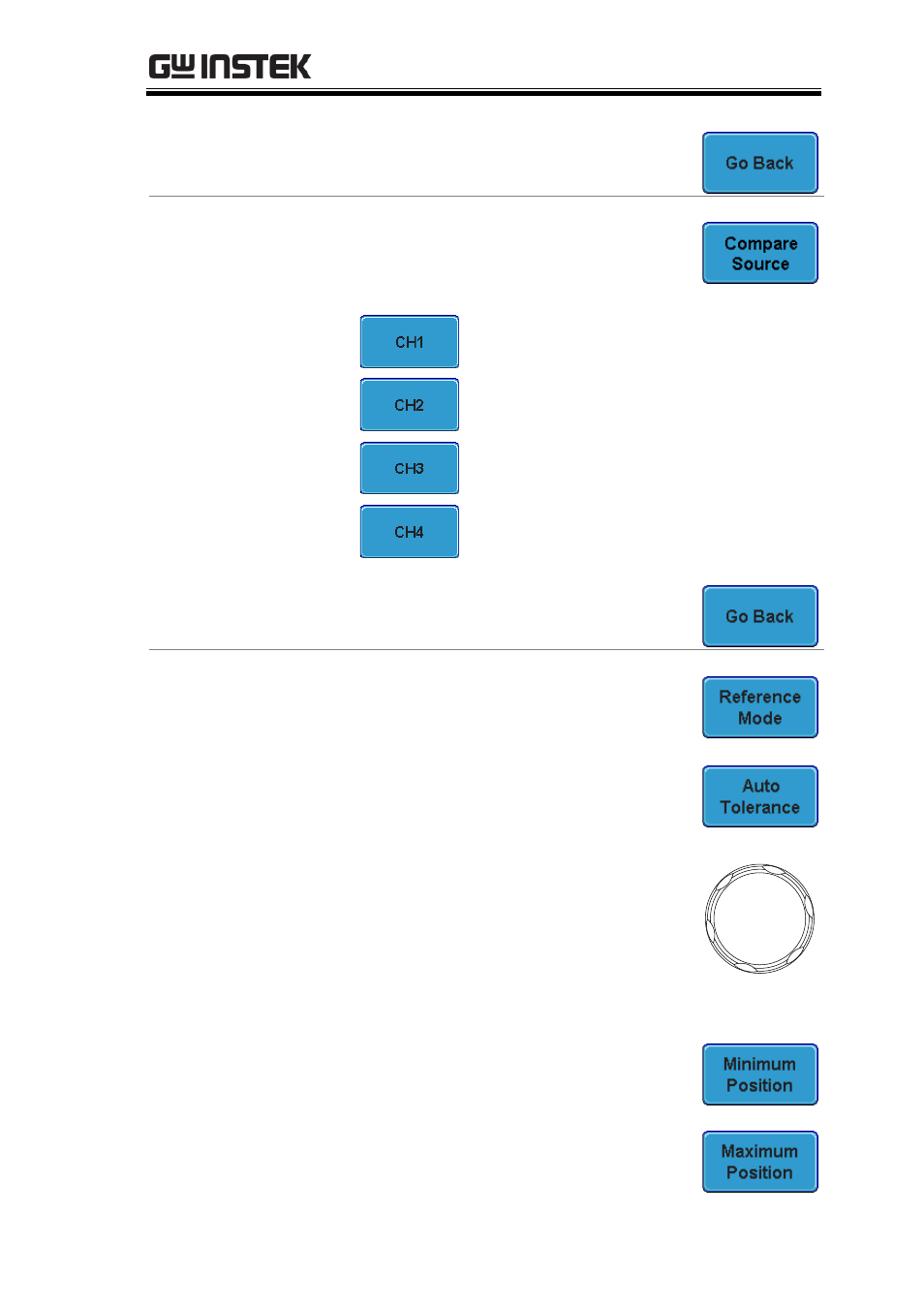

2. Press Go Back to return to the

previous menu.

Set Go-NoGo
Source

1. Press Compare Source from the

bottom menu to set the Go-NoGo
boundary source.

Sets CH1 as the source.

Sets CH2 as the source.

Sets CH3 as the source.

Sets CH4 as the source.

2. Press Go Back to return to the

previous menu.

Set Boundary
Tolerance

1. To set the Go-NoGo boundary

tolerance, press Reference Mode.

Auto Tolerance

2. To set the boundary tolerance as a

percentage offset from the source
waveform, press Auto Tolerance
and use the Variable knob.

VARIABLE

Offset

0.4% ~ 40% (.4% steps)

Maximum and
Minimum
Position

3. To manually set the template

tolerance, press Minimum Position
or Maximum Position and use the
Variable knob to set the absolute
minimum or maximum position.

or
