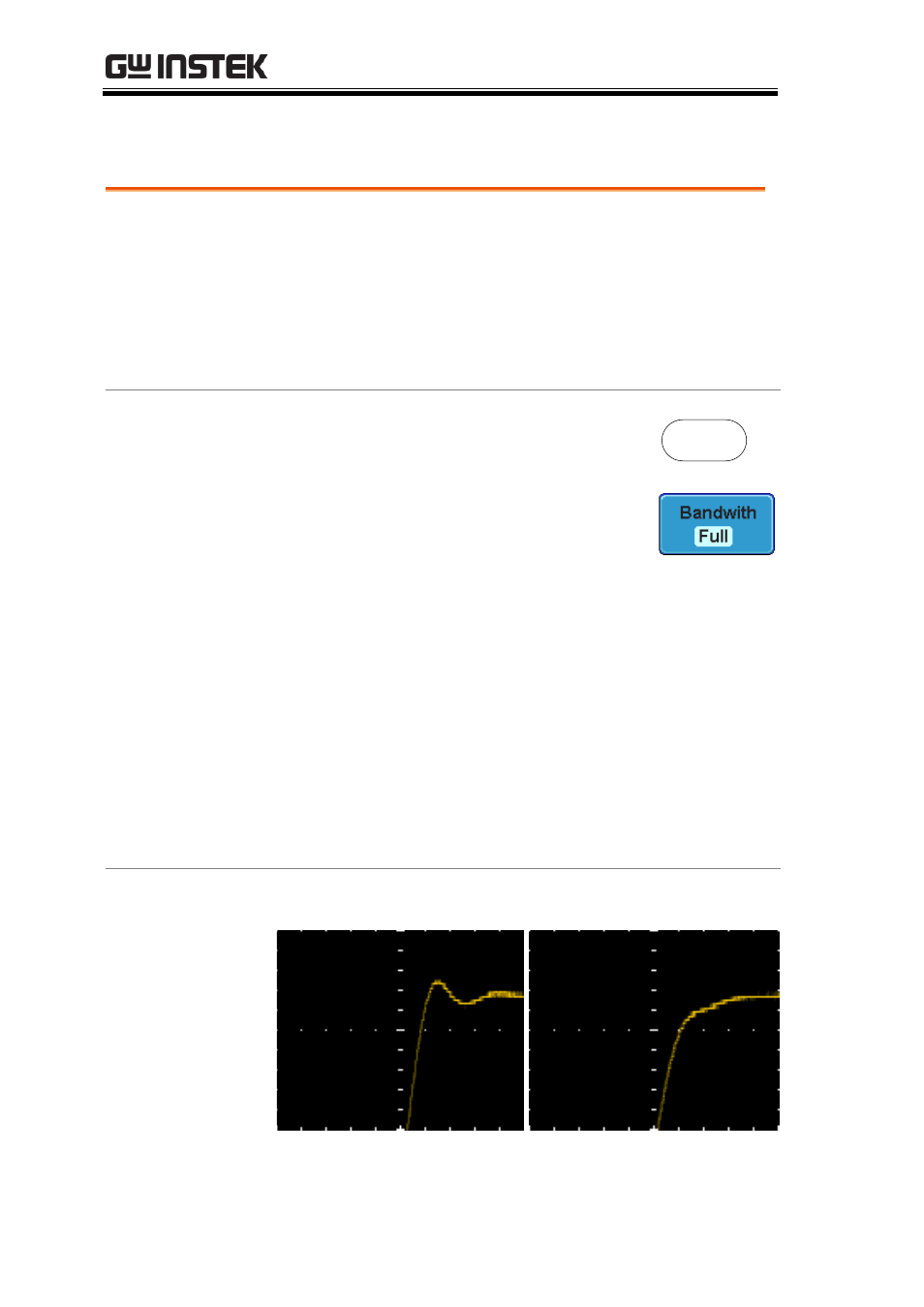

background image

GDS-2000A Series User Manual

140

Limit Bandwidth

Background

Bandwidth limitation puts the input signal into a
selected bandwidth filter.
This function is useful for cutting out high
frequency noise to see a clear waveform shape.
The bandwidth filters available are dependent on
the bandwidth of the oscilloscope model.

Panel Operation

1. Press the Channel key.

CH1

2. Press Bandwidth from the bottom

menu.

3. Choose a bandwidth* from the side menu.

*Depending on the bandwidth of the
oscilloscope.

Range

70MHz models: Full, 20MHz
100MHz models: Full, 20MHz
200MHz models: Full, 20MHz,
100MHz
300MHz models: Full, 20MHz,
100MHz, 200MHz

Example

BW Full

BW Limit 20MHz
