The calibration for Channel 1 starts and ends
automatically, in less than 5 minutes. A
message is displayed when the calibration
procedure has ended.

9. Repeat the above step for Channel 2, 3* and 4*

when prompted.

*4 channel models only.

10. When the calibration for all channels has

completed, the display goes back to the default
state.

Probe Compensation

Panel Operation

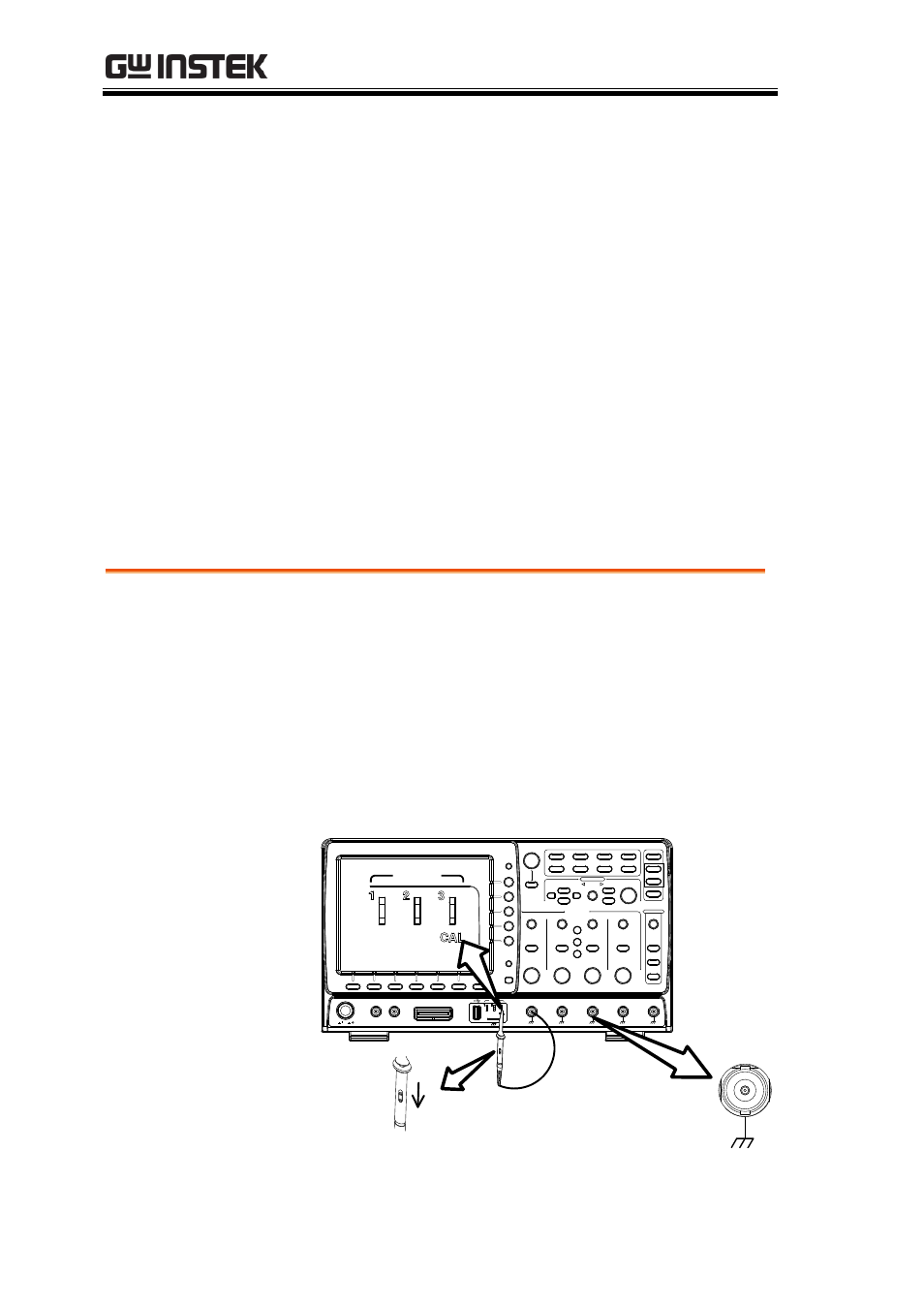

1. Connect the probe between the Channel 1 input

and the probe compensation output (Demo 3
output, by default set as 2Vp-p, 1kHz square
wave) on the front panel. Set the probe
attenuation to x10.

2. Alternatively, the probe compensation signal

can be changed. See page 171 for details.

POSITION

CH1

Demo

x1

x10

X

1

0

X

1

CH1

Demo
