CONFIGURATION

153

5. Use the side menu to select the trigger source

type.

Range

Channel 1 ~ 4 (Alternate On/Off),
EXT (Ext Probe: Volt/Current,
Attenuation: 1mX~1kX ), AC Line

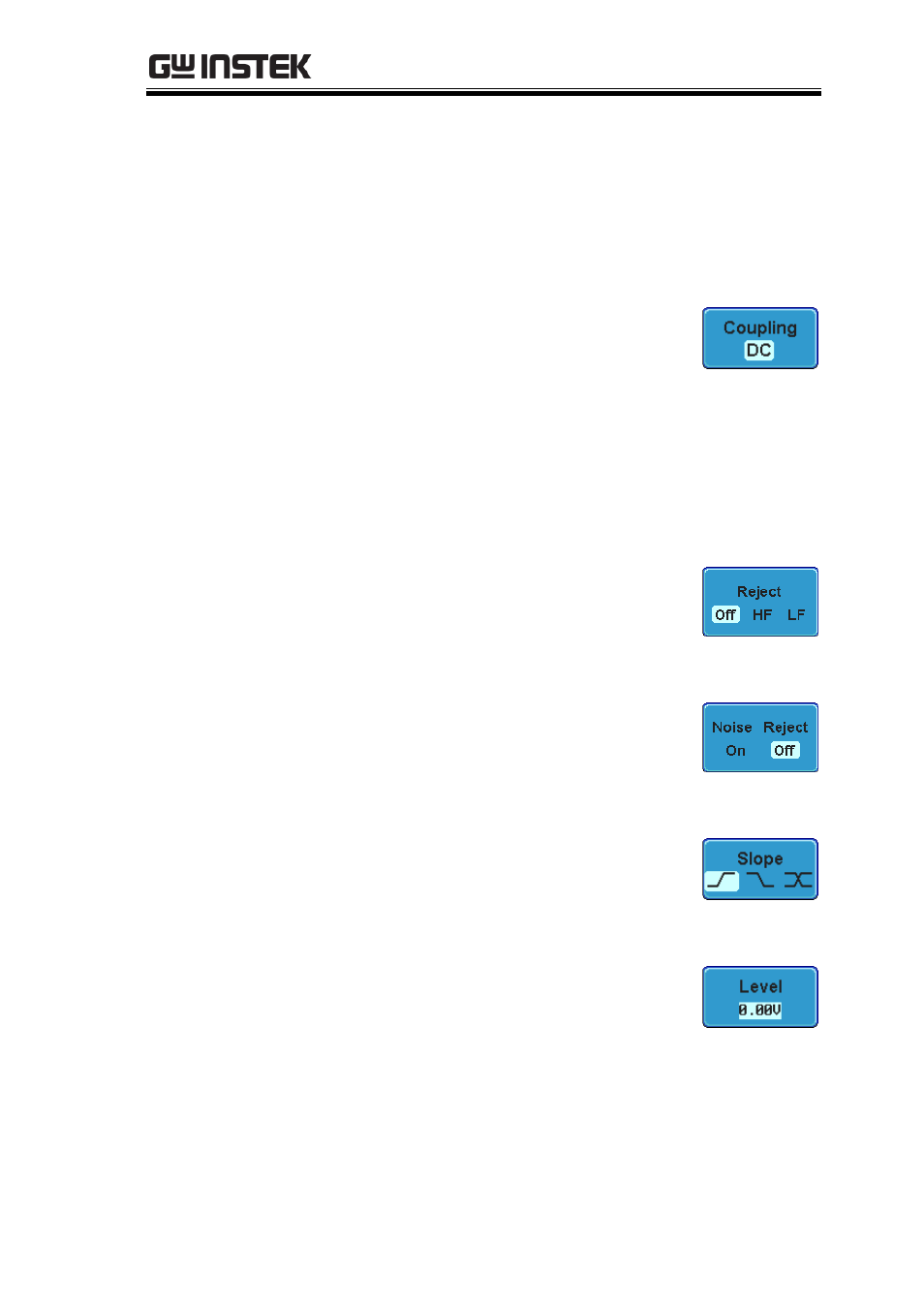

6. Press Coupling from the bottom

bezel menu to select the trigger
coupling or frequency filter
settings.

7. Choose the coupling from the side

menu.

Range

DC, AC

8. Press Reject to toggle the rejection

filter from the side menu.

Range

HF Reject, LF Reject, Off

9. Toggle Noise Rejection On or Off

from the side menu.

Range

On, Off

10. From the bottom menu press Slope

to toggle the slope type.

Range

Rising edge, falling edge, either

11. To set the external trigger level,

select Level from the bottom bezel
menu.
