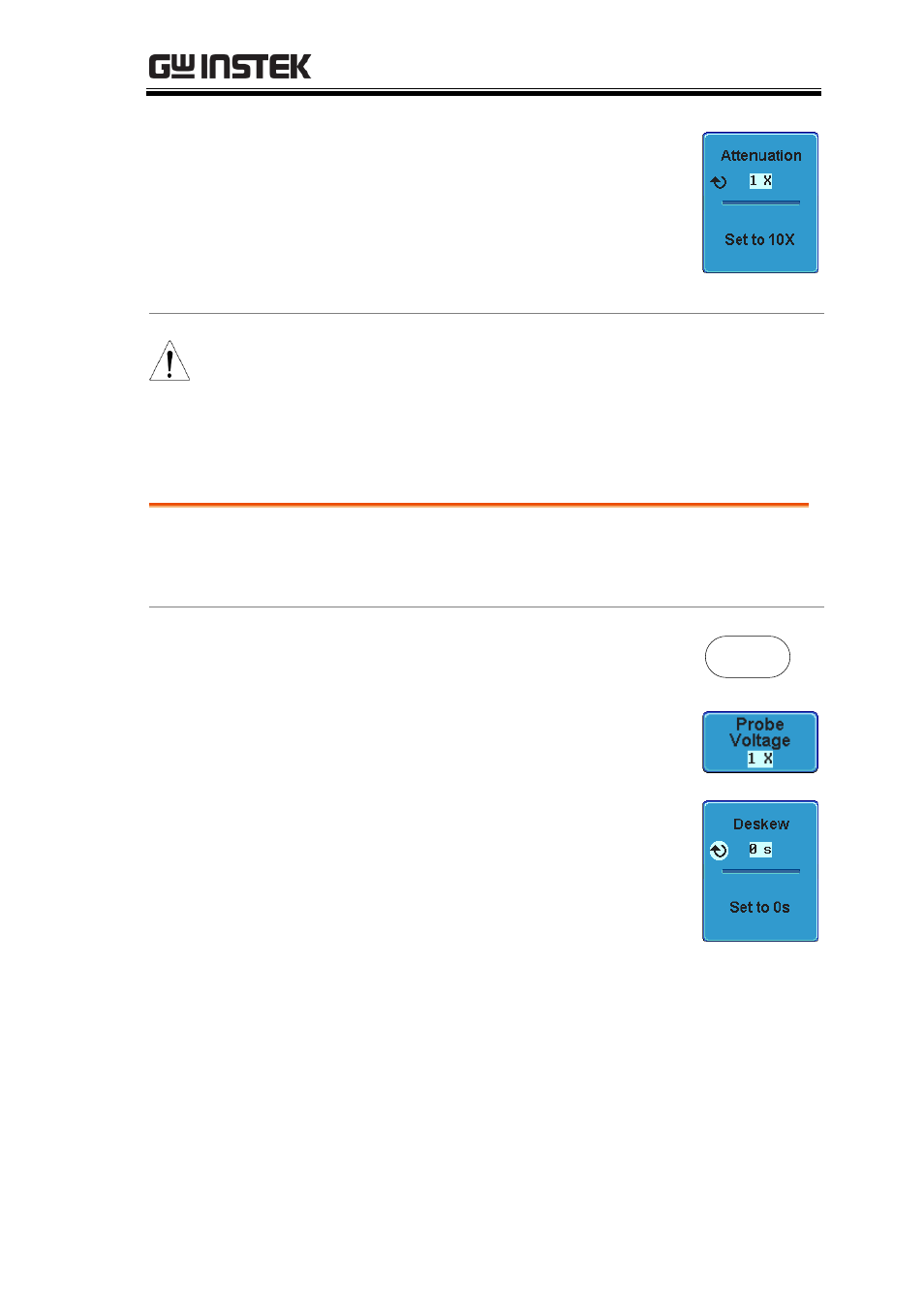

CONFIGURATION

143

3. Press Attenuation on the side menu

and use the Variable knob to set
the attenuation.

Alternatively, press Set to 10X.

Range

1mX ~1kX (1-2-5 step)

Note

The attenuation factor adds no influence on the real
signal. It just changes the voltage/current scale on the
display.

Set the Deskew

Background

The deskew function is used to compensate for the
propagation delay between the oscilloscope and
the probe.

Panel Operation

1. Press one of the Channel keys.

CH1

2. Press Probe from the bottom menu.

3. Press Deskew on the side menu and

use the Variable knob to set the
deskew time.

Alternatively, press Set to 0s to
reset the deskew time.

Range

-50ns~50ns, 10ps increments

4. Repeat the procedure for another channel if

necessary.
