MAINTENANCE

245

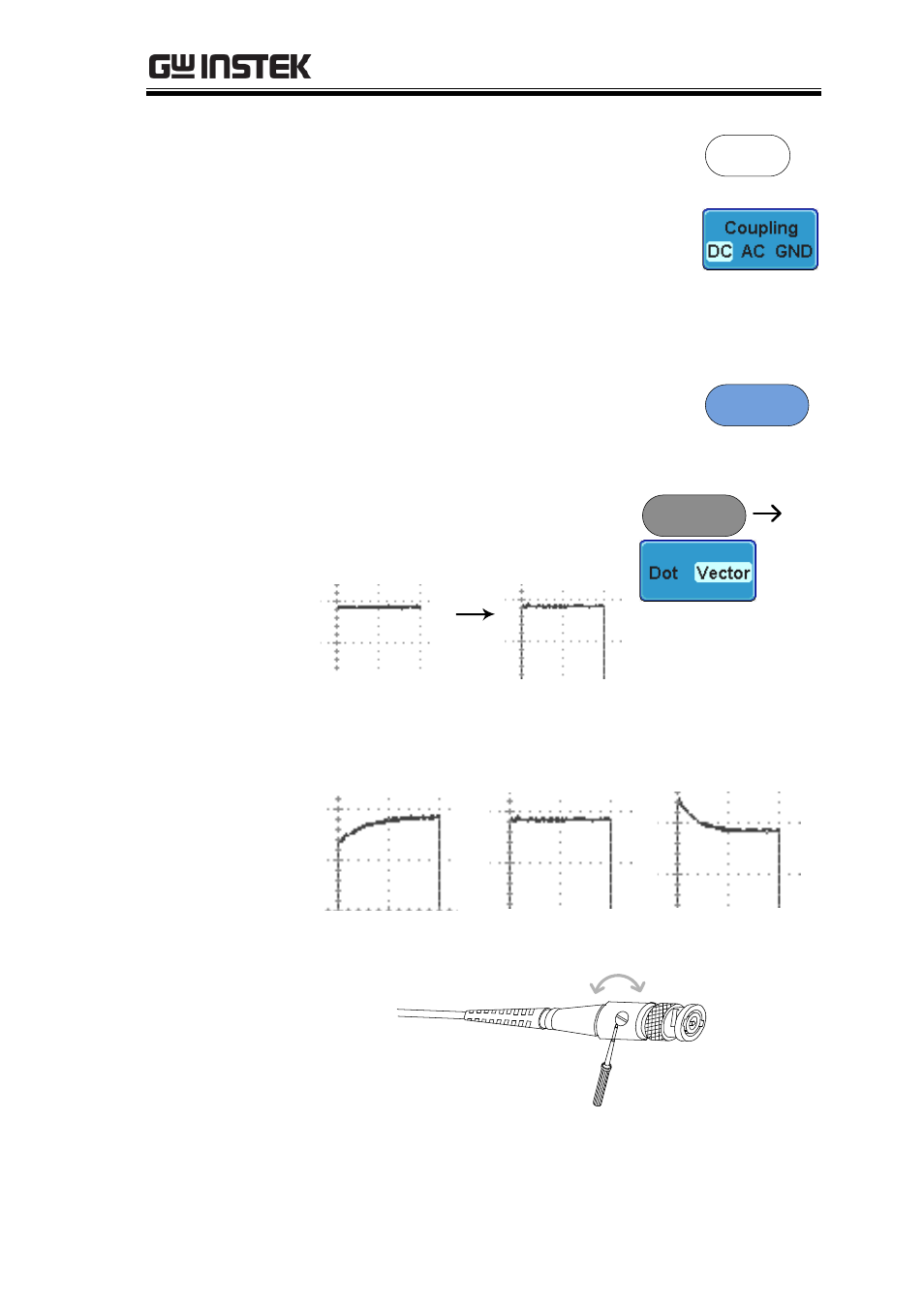

3. Press the CH1 key to activate CH1.

CH1

4. Set the Coupling to DC from the

bottom menu.

5. Set the Probe attenuation to

Voltage, 10X.

Page 142

6. Press the Autoset key. The

compensation signal appears on
the display.

Autoset

7. Press the Display key, then

set the display type to
Vector.

Display

8. Turn the adjustment point on the probe to

make the waveform as square as possible.

Under

Compensation

Normal

Over

Compensation
