GDS-2000A Series User Manual

70

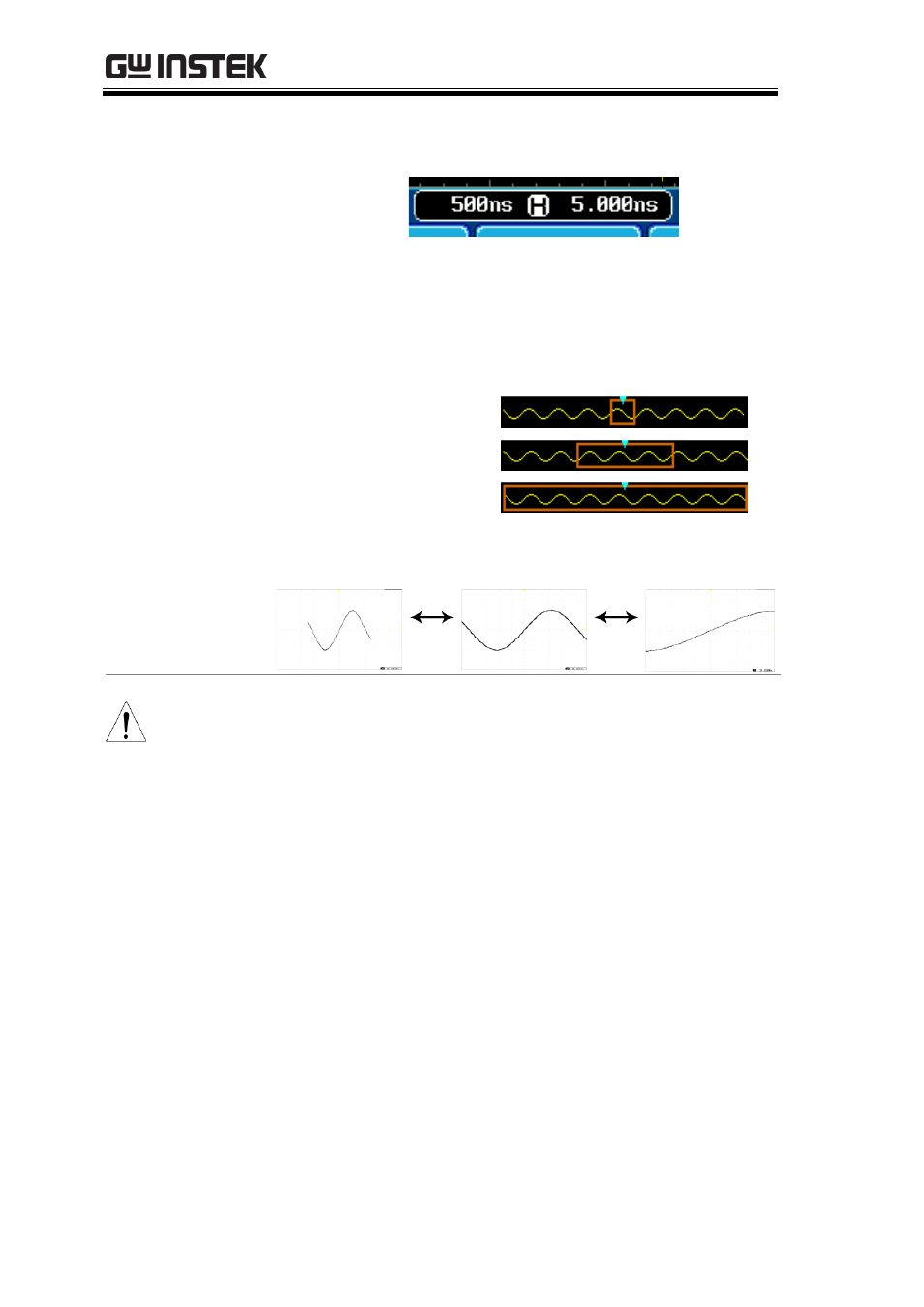

The Time/Division rate is displayed to the left of the H
icon at the bottom of the screen.

Display bar

The display bar indicates how much
of the waveform is displayed on the
screen at any given time. Changes to
timebase will be reflected on the
display bar.

Fast

Medium

Slow

Stop mode

In the Stop mode, the waveform size
changes according to the scale.

Note

The Sample rate changes according to the
time/division and record length. See page 109.
