Do not connect like below – B&K Precision 9171-9174 - Manual User Manual

Page 72

Text mode
Original mode

For operating with output current higher than 10 A, the connection is
the same as Figure 18 above, with the addition of connecting the
second pair of (+) and (-) terminals in the rear panel, like below:

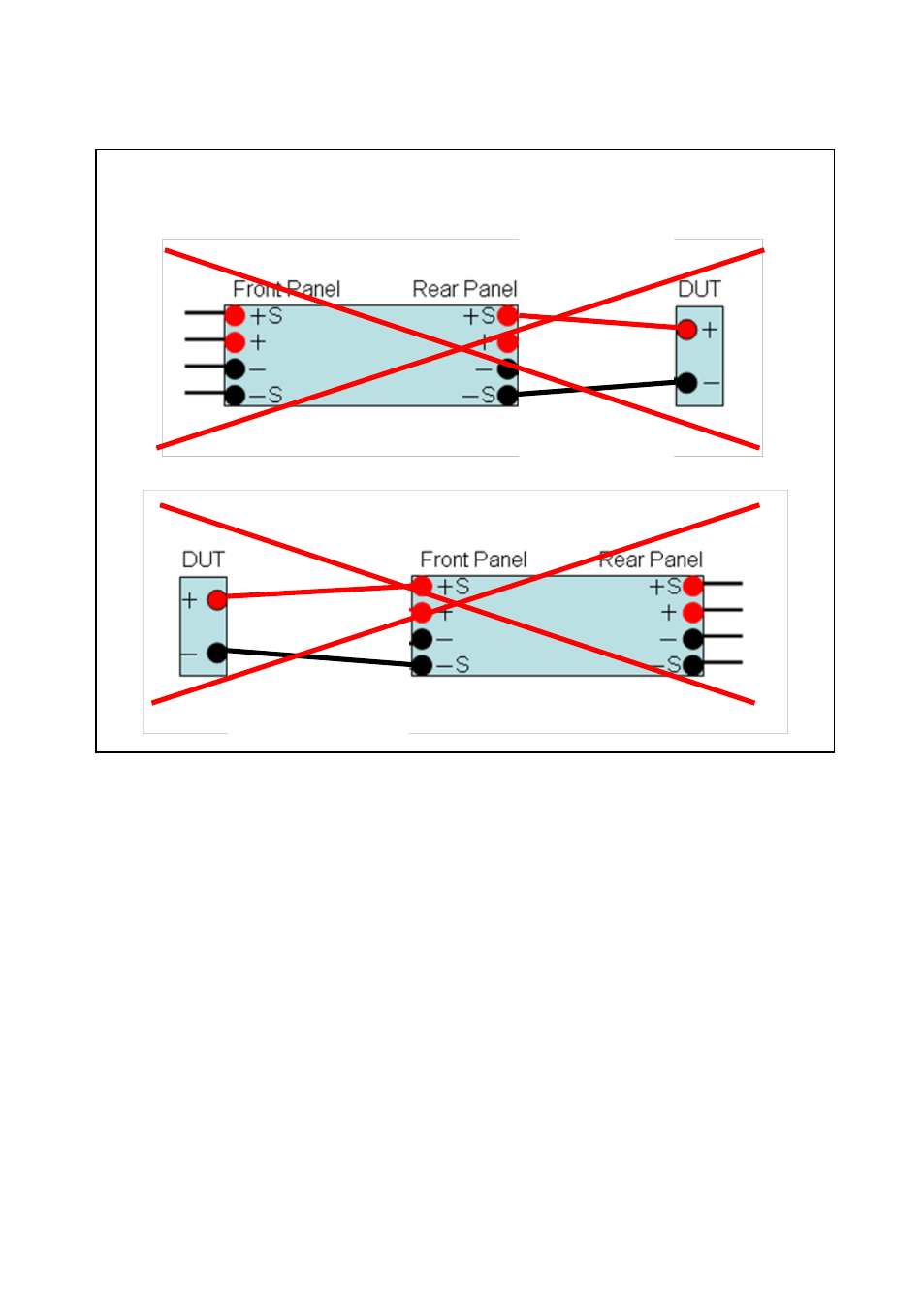

DO NOT CONNECT LIKE BELOW:
