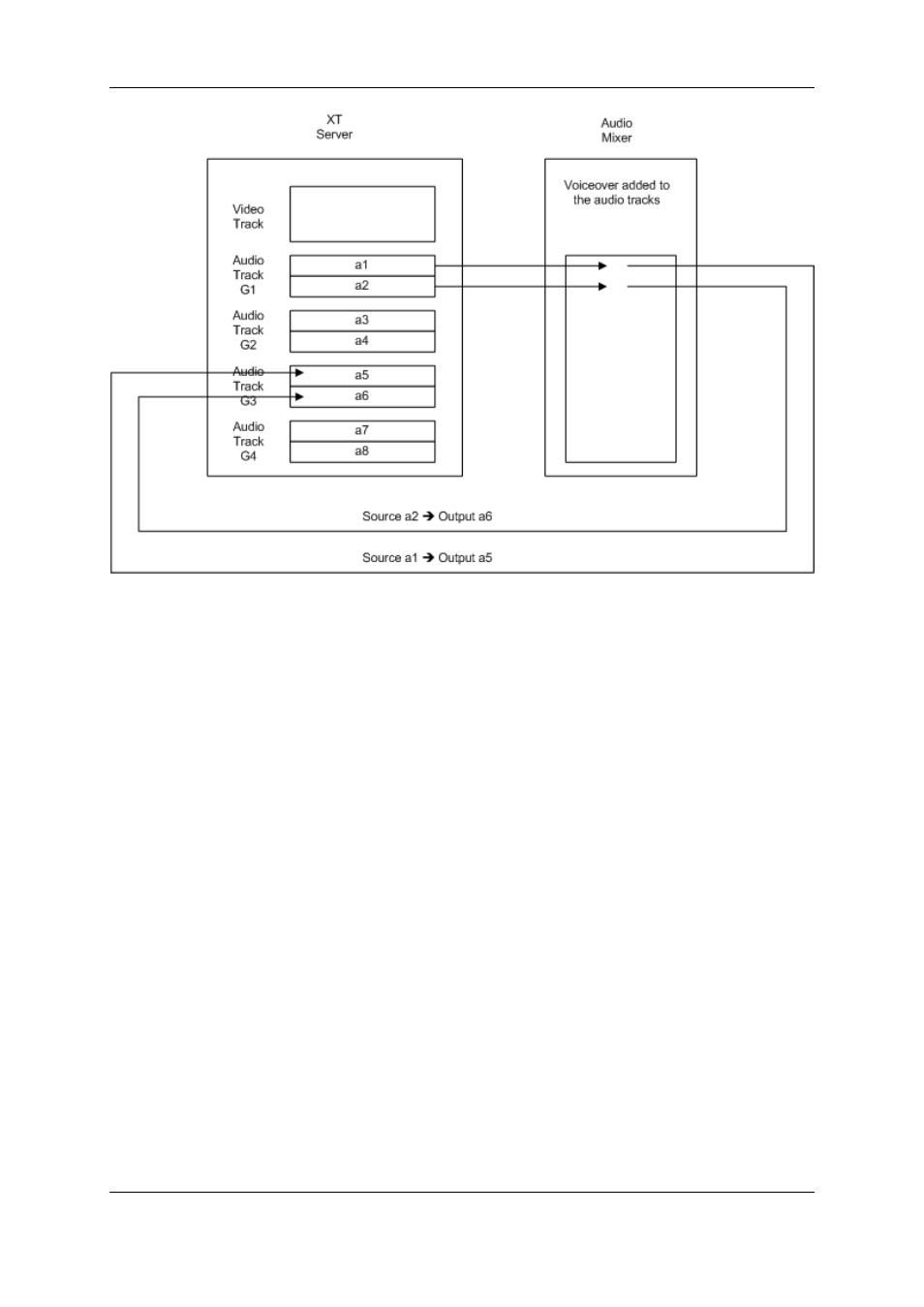

As you want to output the track G1 into the track G3, you will do the following to set up the
audio channel input matrix:
• On the G1 track, click on the bullets to mute the channels a1 and a2.
• On the G3 track, click at the intersection of the a1 source channel and the a5 output
channel to route the a1 source to the a5 output.
• On the G3 track, click at the intersection of the a2 source channel and the a6 output
channel to route the a2 source to the a6 output.
How to Define the Audio Channel Input Matrix
1. Right-click anywhere in the timeline and select Replace Settings.
The Replace Settings window opens.
2. In the Audio Channel Input Matrix group box, map each channel that you want to have
in the replaced media (output channel) to the source channel to be played on this
output channel:
To map the source channel and the output channel, click at the intersection of both
channels in the grid that corresponds to the track where you want to output the signal.
3. Repeat the step 2 for each output channel you want to have in your replaced media.
4. Click Apply to save the Replace settings.
