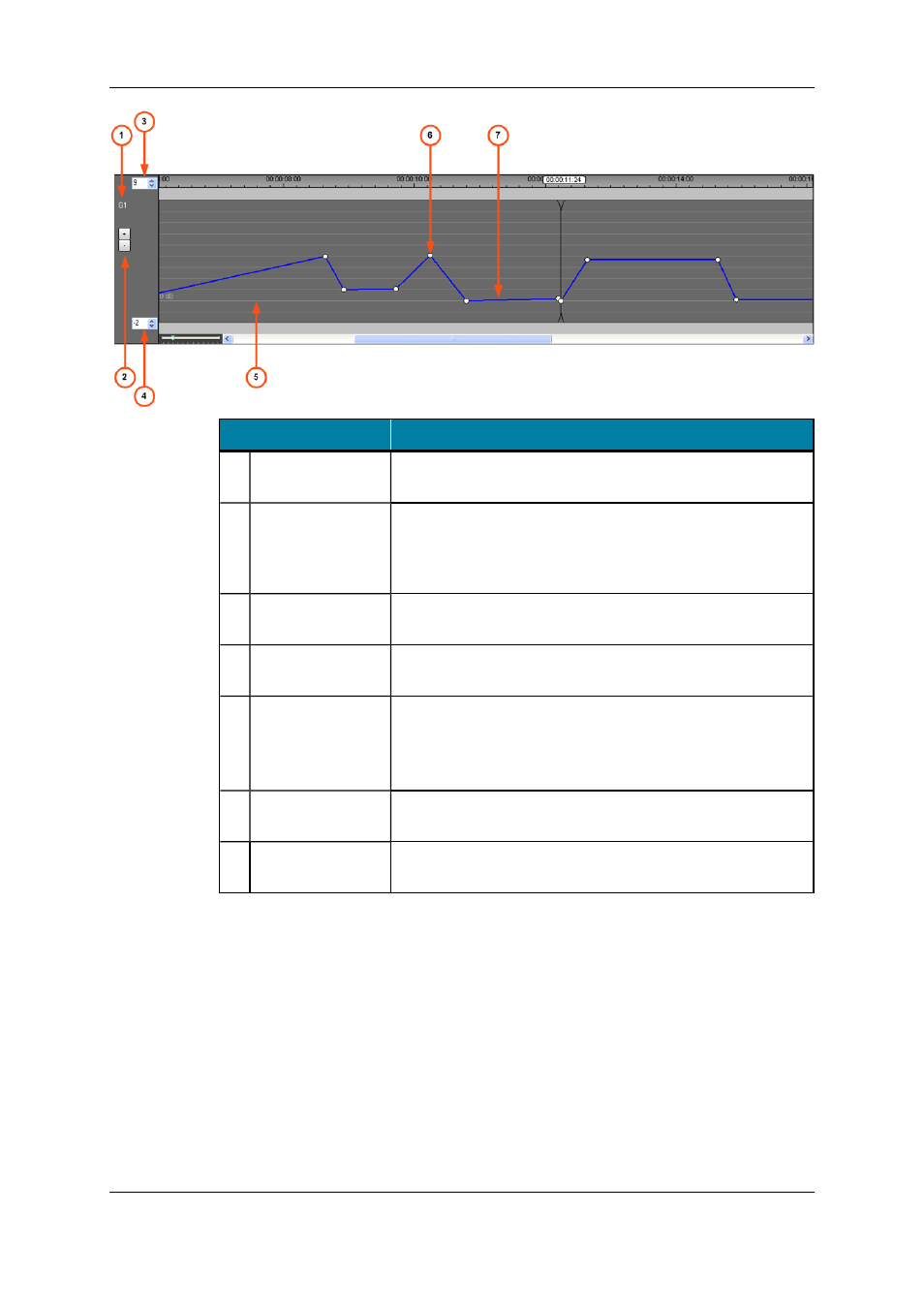

Area Description / See section...
1. Audio Track Name The Audio Track Name shows the name of the audio track
that is displayed in Volume Automation mode.
2. Global
Increase/Decrease
button These buttons makes it possible to increase or decrease the
volume of the whole volume automation line or curve. See
section "Increasing or Decreasing the Global Volume of a
Track" on page 197 for more information.
3. Maximum Graphic
Volume Range "Maximum / Minimum Graphic Volume Range" on page 194.
4. Minimum Graphic
Volume Range "Maximum / Minimum Graphic Volume Range" on page 194.
5. 0 db line The 0 db line represents the original audio level of the track in
the timeline.
When it is added to the timeline, each element on the track
has the same audio level as its source media.
6. Volume
Automation point "Display of the Audio Track Volume" on page 195.
7. Volume
Automation curve "Display of the Audio Track Volume" on page 195.
Maximum / Minimum Graphic Volume Range
The Maximum Graphic Volume Range box (upper box) specifies the range for
increasing the audio volume of a track, track portion or point above the 0 db line. The range
is expressed in decibels and can be between 1 and 18 decibels.
The Minimum Graphic Volume Range box (lower box) specifies the range for
decreasing the audio volume of a track, track portion or point below the 0 db line. The
range is expressed in decibels and can be between -1 and -122 decibels.
