Example 1
Initial Situation
The timeline audio configuration is 4 tracks of 2 channels. You want to play the channels
a3 and a4 (G2 track) of the source media onto the output channels a1 and a2 respectively
(G1 track) of one timeline element.

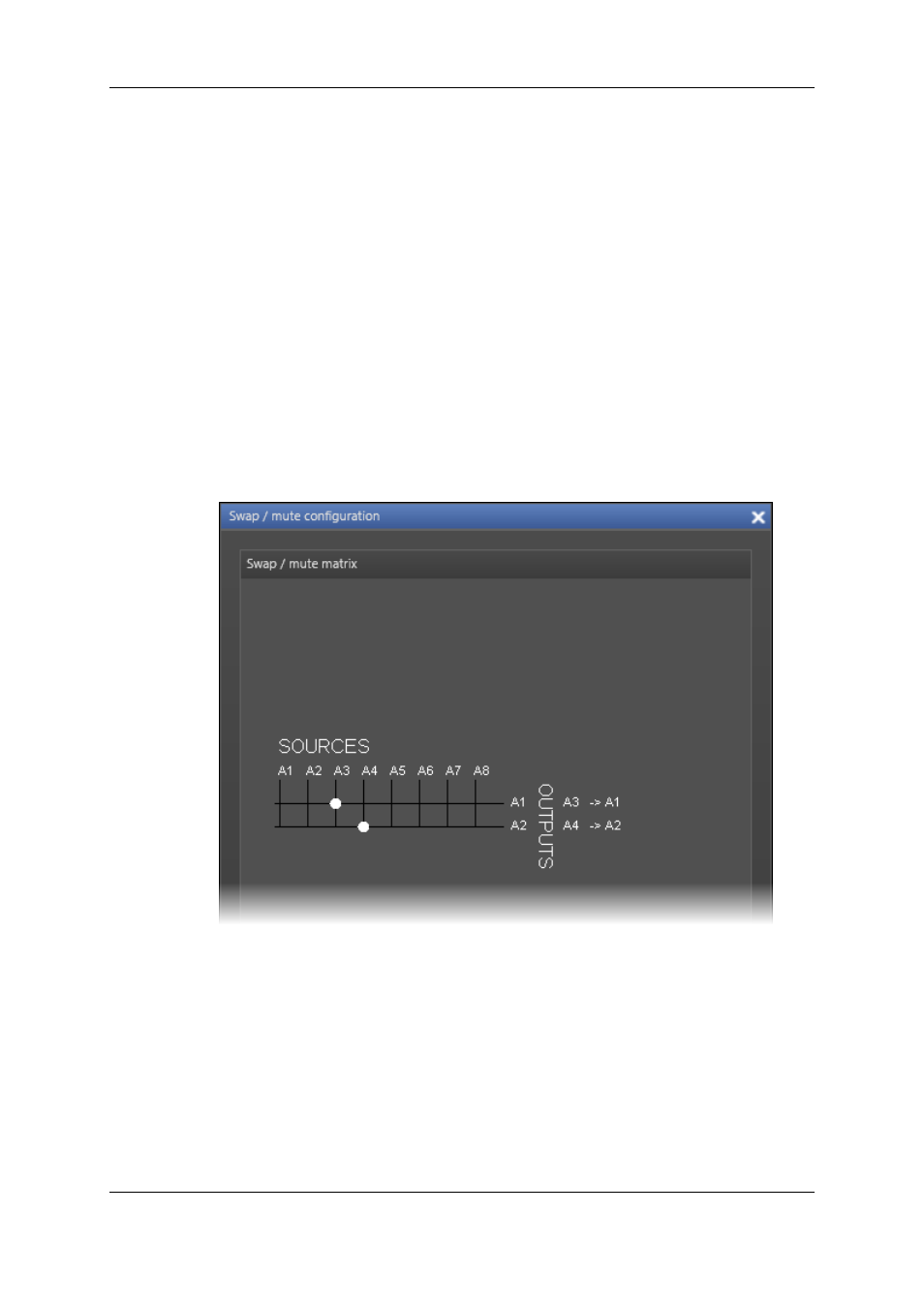

Manual Swap Action
You will perform the swap action on the G1 track of the timeline element, where you
specify which source channels will be played on the channels of the G1 track. In this
case, you will map:
• the source channel a3 to the output channel a1 and
• the source channel a4 to the output channel a2.
Result
In the general timeline display (left screenshot below), you can see the global swap icon
on the G1 track, which means that channels are swapped on this track.
In the Swap/Mute Zoom display (right screenshot below), you can see that the channels
a3 and a4 are played instead of a1 and a2 on track G1 from the IN to the OUT point of the
element.
