Page 89
Install the QPC757 DCH
89

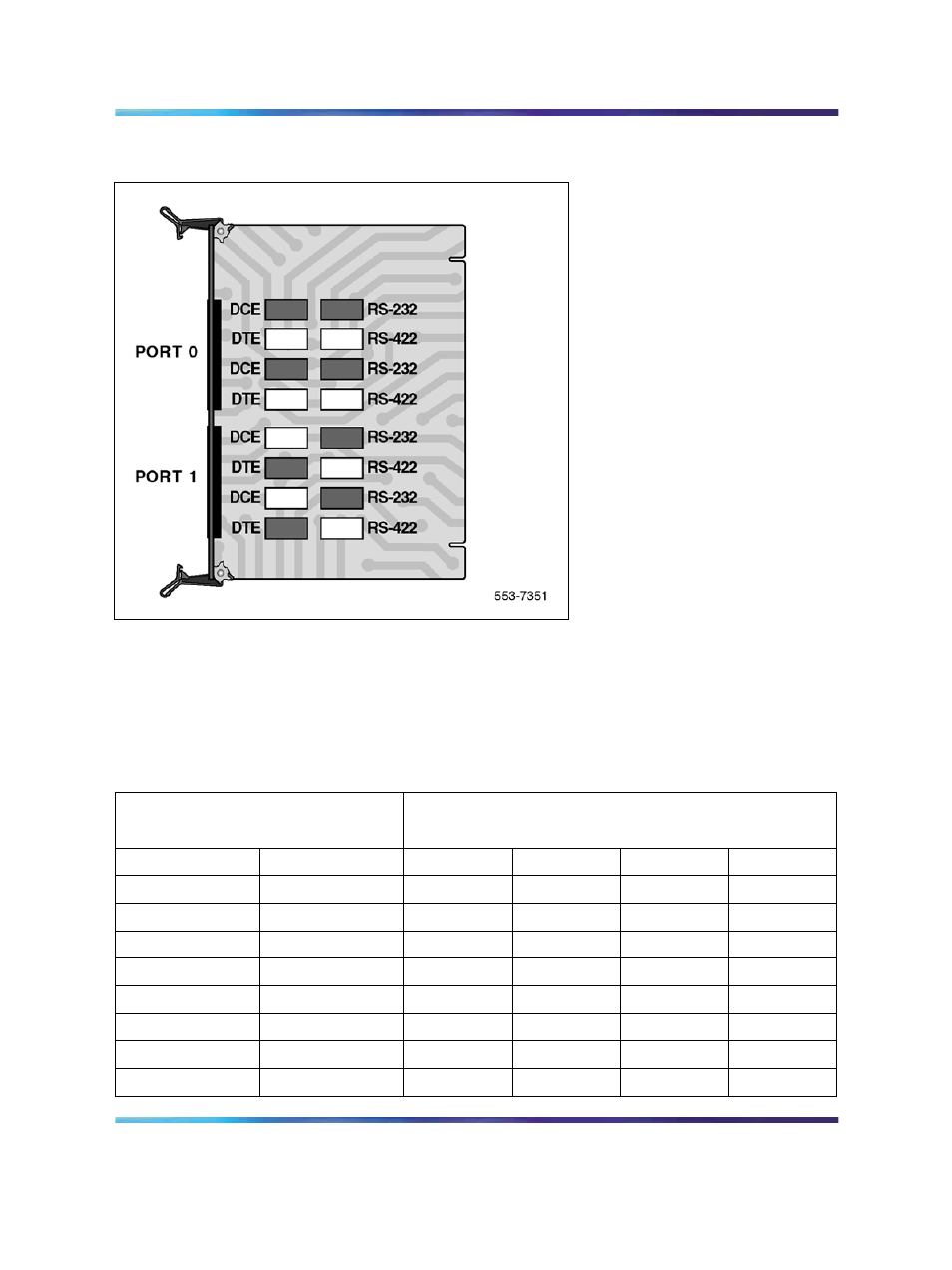

Figure 39
QPC757 option and PRI/ISL low-speed programming switch settings
Port address switch settings
Table 27 "D-channel port address switch settings for PRI" (page 89)
shows
the port address switch settings that apply to SW1, SW2 (the D-channel
port), SW3, and SW4.
Table 27
D-channel port address switch settings for PRI
Port Address Switch Settings
Port Number
J1
J2
SW1
SW2
SW3
SW4
0
1
Off
Off
Off
Off
2
2
Off
Off
On
Off
4
5
Off
On
Off
Off
6
7
Off
On
On
Off
8
9
On
Off
Off
Off
10
11
On
Off
On
Off
12
13
On
On
Off
Off
14
15
On
On
On
Off
