Page 47

NT5D97 Dual-port DTI2/PRI2 card

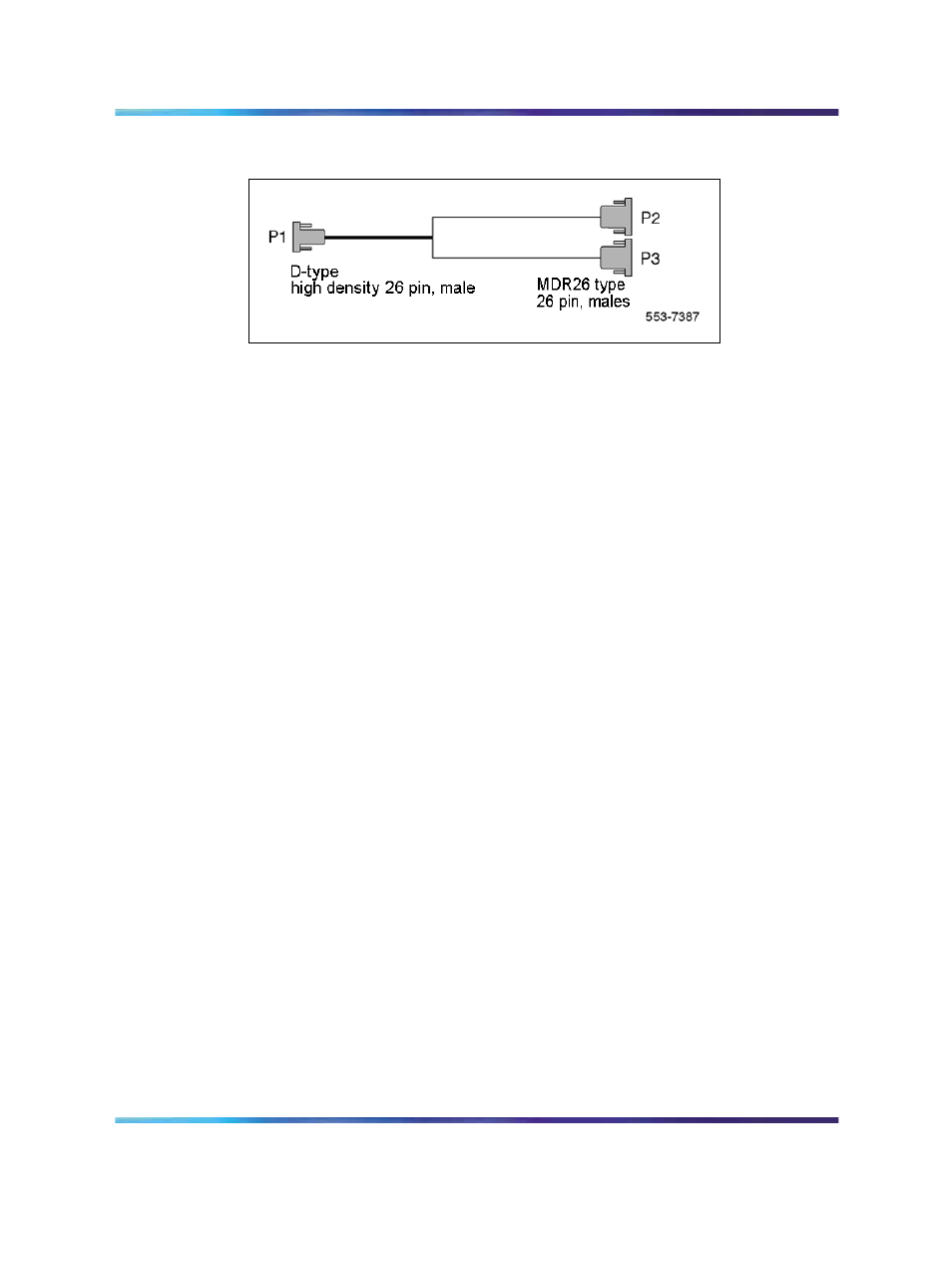

Figure 15
NTCK80AA/AB/AC/AD

Cable diagrams

and

provide

examples of typical cabling configurations for the DDP2.

shows a

typical DDP2 cabling for a system with an I/O panel, with the connection
between the I/O panel and a Network Channel Terminating Equipment
(NCTE).

shows

cabling for a system without an I/O panel. Here, the DDP2 faceplate is
cabled directly to the NCTE.

Note: Since several clock cabling options exist, none has been
represented in the diagrams. Refer to

for a description on each available option.

Nortel Communication Server 1000

ISDN Primary Rate Interface Installation and Commissioning

NN43001-301

02.03

Standard

Release 5.5

7 December 2007
