ISL hardware requirements 285

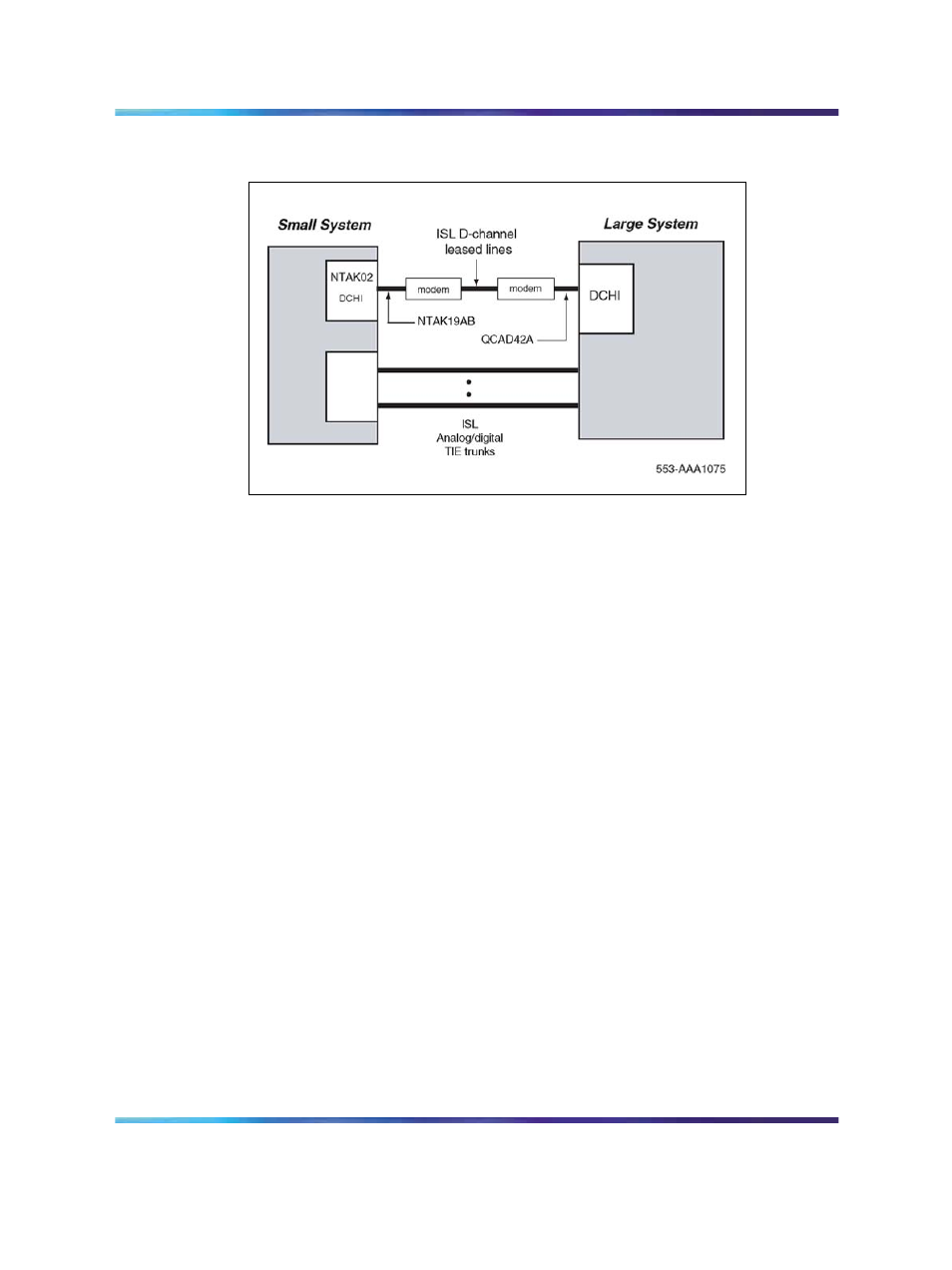

Figure 89
ISL in dedicated mode using leased line
ISL in dedicated mode using dialup modem
The requirements are as follows:
• NTAK02 SDI/DCH D-channel handler interface.
• Modems such as the Ventel 2400, Hayes 2400 (the Hayes Smartmodem
2400 cannot be used on leased lines) or Gandalf 2400 that can support
2 or 4-wire leased line operation. 4-wire operation must be specified
when ordering. Otherwise, modems are factory shipped for 2-wire
operation. Modems capable of the following:
— autodial capability
— minimum of 2400 baud
— synchronous operation
— programmable so that one modem originates the call while the other
auto-answers
• NTAK19BA 4-port SDI cable.
• NT8D09 500 set line card.
