44 ISDN Primary Rate Interface equipment overview

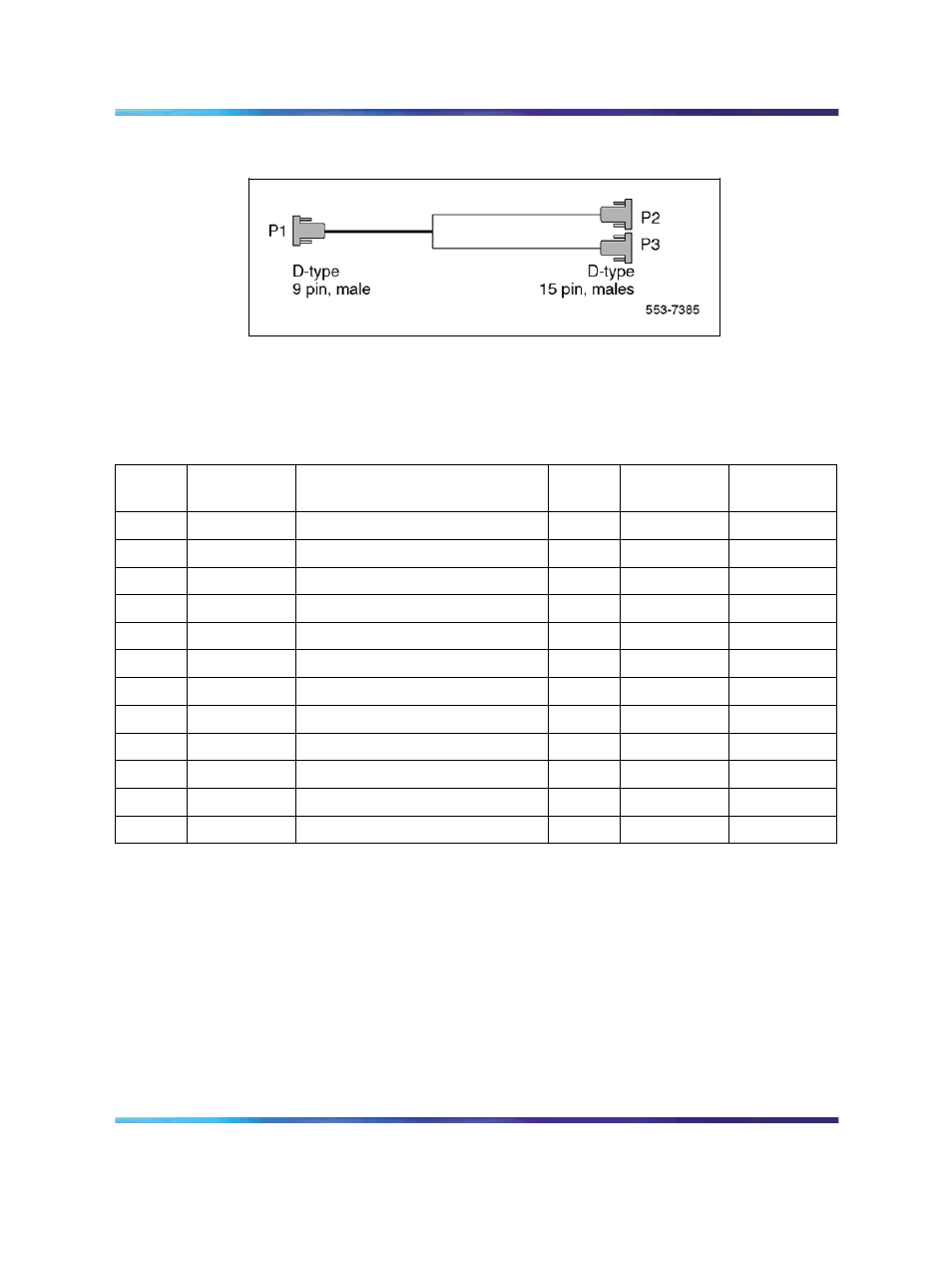

Figure 11
NTCK78AA
Table 11 "NTCK78AA cable pins" (page 44) lists the pin attributes for the
NTCK78AA cable.
Table 11
NTCK78AA cable pins
Cable Name Description Color
DDP2
pins NCTE
pins
0 T-PRI0TX Trunk 0 Transmit Tip Black P1-1 P2-1
0 R-PRI0TX Trunk 0 Transmit Ring Red P1-2 P2-9
0 T-PRI0RX Trunk 0 Receive Tip Black P1-3 P2-3
0 R-PRI0RX Trunk 0 Receive Ring White P1-4 P2-11
0 GND Shield Wire Bare P1 Case P2-2
0 GND Shield Wire Bare P1 Case P2-4
1 T-PRI1TX Trunk 1 Transmit Tip Black P1-5 P3-1
1 R-PRI1TX Trunk 1 Transmit Ring Red P1-6 P3-9
1 T-PRI1RX Trunk 1 Receive Tip Black P1-7 P3-3
1 R-PRI1RX Trunk 1 Receive Ring White P1-8 P3-11
1 GND Shield Wire Bare P1 Case P3-2
1 GND Shield Wire Bare P1 Case P3-4
NTCK79AA (A0618296) The NTCK79AA (40 ft) is a 75W coaxial cable for
connecting the TRK port on the DDP2 faceplate (P1, D-type 9 pin male) to
the Line Terminating Unit (LTU) (P2, P3, P4, P5 BNC males).
