Dedicated mode using leased line 183

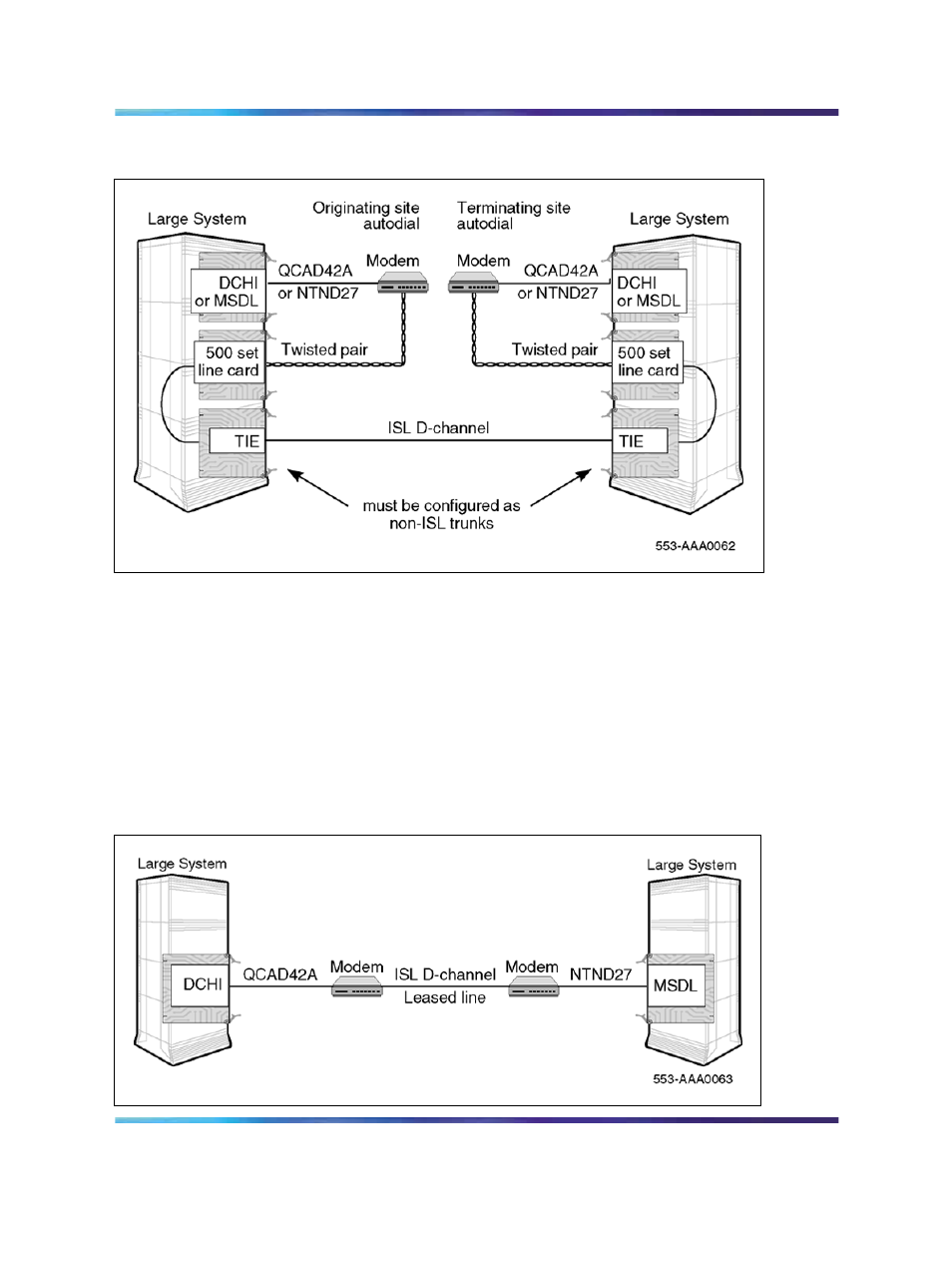

Figure 70
ISL in shared mode
Dedicated mode using leased line
In this configuration, the D-channel connects the DCHI or MSDL to a
modem which communicates with a far-end modem over a dedicated leased
line. See
Figure 71 "ISL dedicated mode, using leased line" (page 183) . A
2400 baud D-channel can support signaling for approximately 382 (T1) or
480 (E1) trunks without non-call associated messages.
Both modems should be set in the synchronous mode.
Figure 71
ISL dedicated mode, using leased line
