1.5 Mb PRI implementation

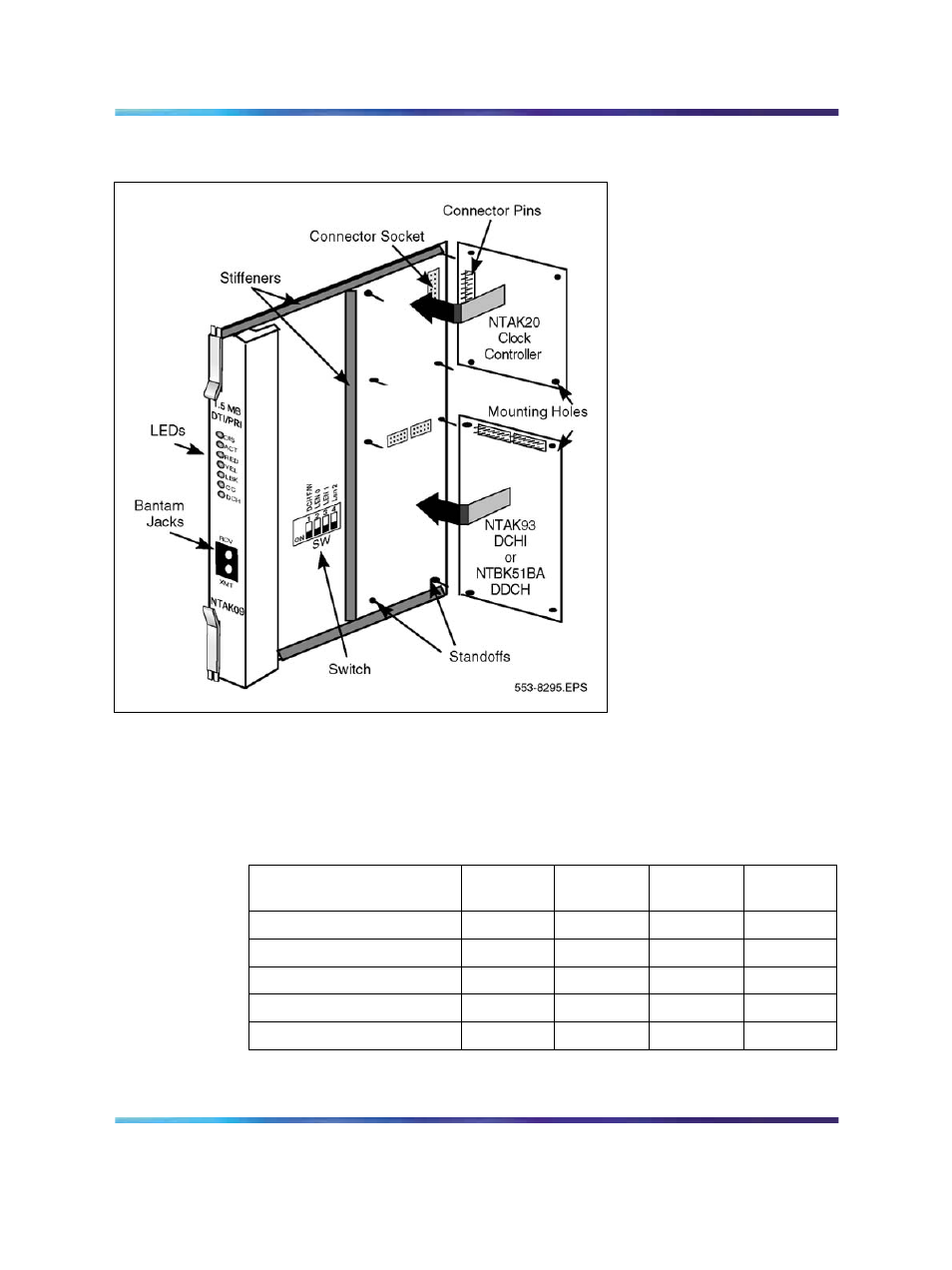

Figure 79
Daughterboard installation on the NTAK09
Set switches on NTAK09 DTI/PRI card
Set the switches on the NTAK09 DTI/PRI card according to
"NTAK09 switch settings" (page 208)
.
Table 75
NTAK09 switch settings
Distance to digital
cross connect
1
DCH F/W
2
(LEN 0)
3
(LEN 1)
4
(LEN 2)
0 - 133 feet
Off
Off
Off
On
133 - 266 feet
Off
On
On
Off
266 - 399 feet
Off
Off
On
Off
399 - 533 feet
Off
On
Off
Off
533 - 655 feet
Off
Off
Off
Off
