NT5D12 Dual-port DTI/PRI 67

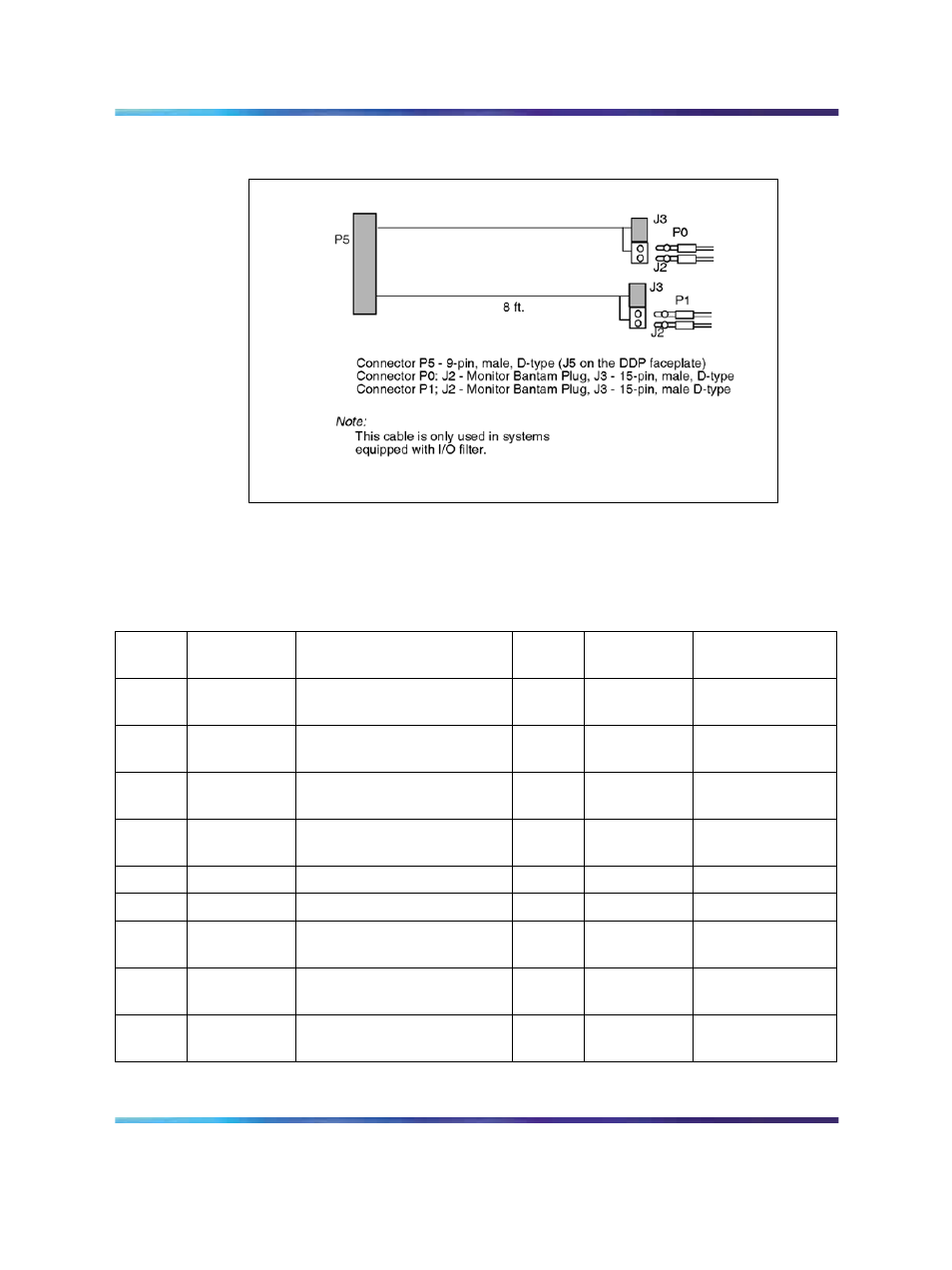

Figure 25
NT5D16AA
Table 18 "NT5D16AA cable pins" (page 67) lists the pin attributes for the
NT5D16AA cable.
Table 18
NT5D16AA cable pins
Cable Name Description Color
DDP
pins (J5) I/O Panel
pins (J2, J3)
0 T-PRI0TX Trunk 0 Transmit Tip Black J5-1 P0J3-1
P0J2-3
0 R-PRI0TX Trunk 0 Transmit Ring Red J5-2 P0J3-9
P0J2-9
0 T-PRI0RX Trunk 0 Receive Tip Black J5-3 P0J3-3
P0J2-4
0 R-PRI0RX Trunk 0 Receive Ring White J5-4 P0J3-11
P0J2-10
0 GND Shield Wire Bare N/C Case P0
0 GND Shield Wire Bare N/C Case P0
1 T-PRI1TX Trunk 1 Transmit Tip Black J5-5 P1J3-1
P1J2-3
1 R-PRI1TX Trunk 1 Transmit Ring Red J5-6 P1J3-9
P1J2-9
1 T-PRI1RX Trunk 1 Receive Tip Black J5-7 P1J3-3
P1J2-4
