Before Configuration
This section describes how to access the Corecess R1-SW24L2B CLI and provides information
that you should know before using the Corecess R1-SW24L2B Command Line Interface (CLI).
Accessing the CLI
When the Corecess R1-SW24L2B starts up for the first time, the only CLI access available is
through the console port. The following steps describe how to access the CLI on the console
terminal connected to the console port:

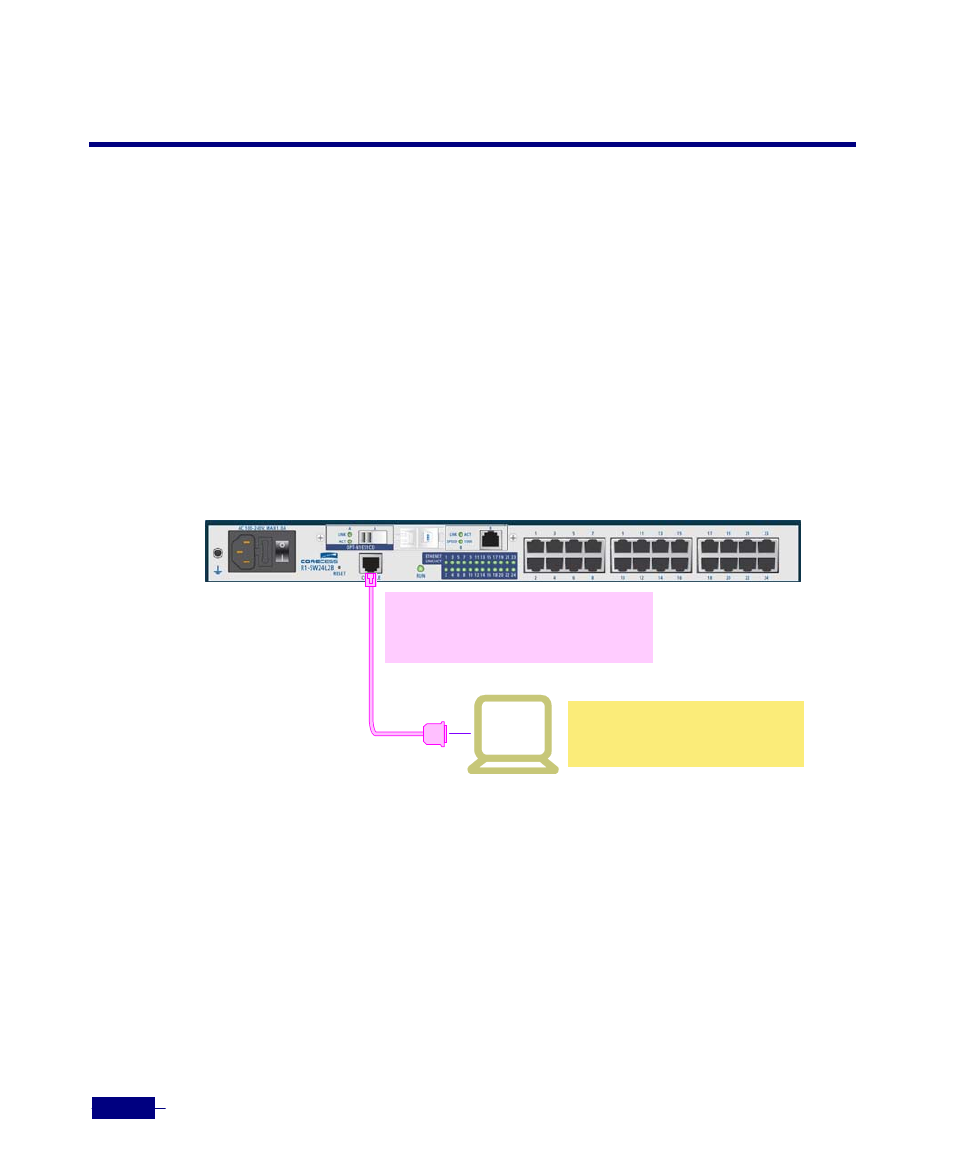

1. To access the Corecess CLI on the console screen, the console port on the Corecess R1-
SW24L2B should be connected to a serial port (DB-9) of the console terminal using a console
cable as the following figure:
2. Make sure that you have started the emulation software program such as HyperTerminal
from your console terminal.
3. Press [Enter] and the following login message is displayed on the console terminal:
login:
R1-SW24L2B
Console Terminal
Console termial environment
- 9600 bps, 8 data bits, no parity bit,
no stop bit, no hardware flow
Console cable (RJ-45 - DB-9)
y
Console cable included with the system
y Max. cable length : 15m
