R1-SW24L2B User’s Manual
2-2

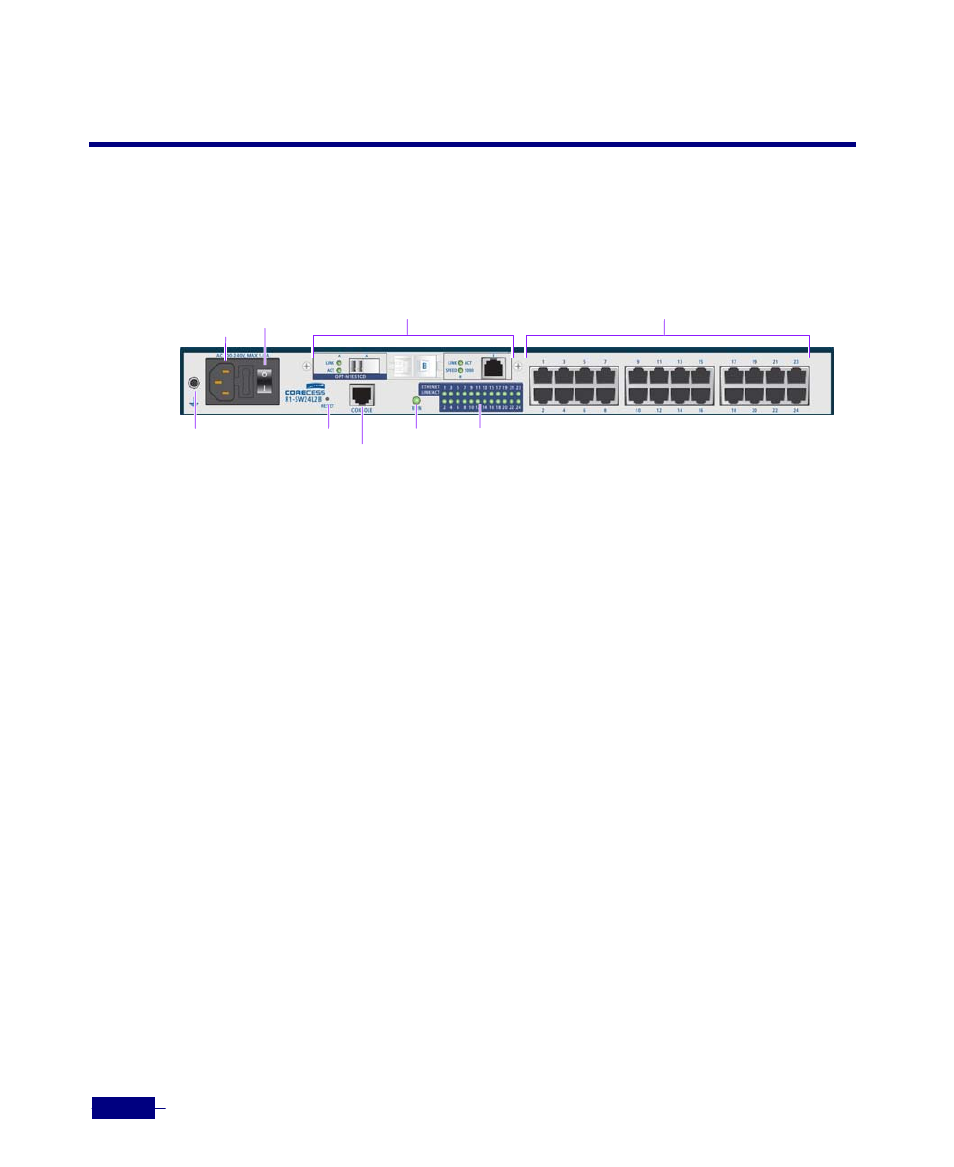

System Chassis
This section describes the external features of the Corecess R1-SW24L2B chassis.
On the front panel of the Corecess R1-SW24L2B, there are LEDs, ports, an uplink slot and
power devices; thus users can monitor the switch status immediatly, and connect cables easily.
Ground Connector
Ground connector is used to ground the Corecess R1-SW24L2B for preventing damage from
electrostatic discharge or lightning. Before connecting power to the system, connect it according
to local site practice.
Power Input
The power input is a terminal that connects external AC power of 100 - 240VAC by using a
power cord.
Power Switch
The power switch is used when turning the Corecess R1-SW24L2B on and off.
Option Slots
On the left of the 10/100Base-TX port, there are an option slot in which an option module can
be installed. The Corecess R1-SW24L2B provides a variety of option modules that support
gigabit ports of various interfaces. The kinds of option modules that can be installed in the
option slots of the Corecess R1-SW24L2B are described in the
Option Modules section in this
chapter.
Ground Connector Reset Switch
Console Port
RUN LED
Power Input
Power Switch
Option Module
Fast Ethernet Port LED
Fast Ethernet Port
