R1-SW24L2B User’s Manual
4-6
Connecting Network Devices
This section describes how to connect the 10/100Base-TX ports located on the front panel of the
Corecess R1-SW24L2B and the ports on the option module installed in the option slots to
network devices. The kinds of cables used for port connection are described in
Chapter 3/ Before
Installation and Appendix B/ Connectors and Cables Specifications .
10/100Base-TX Port
The 10/100Base-TX port on the front of the Corecess R1-SW24L2B can be connected with the
Fast Ethernet network that supports the transmission speed up to 100Mbps.

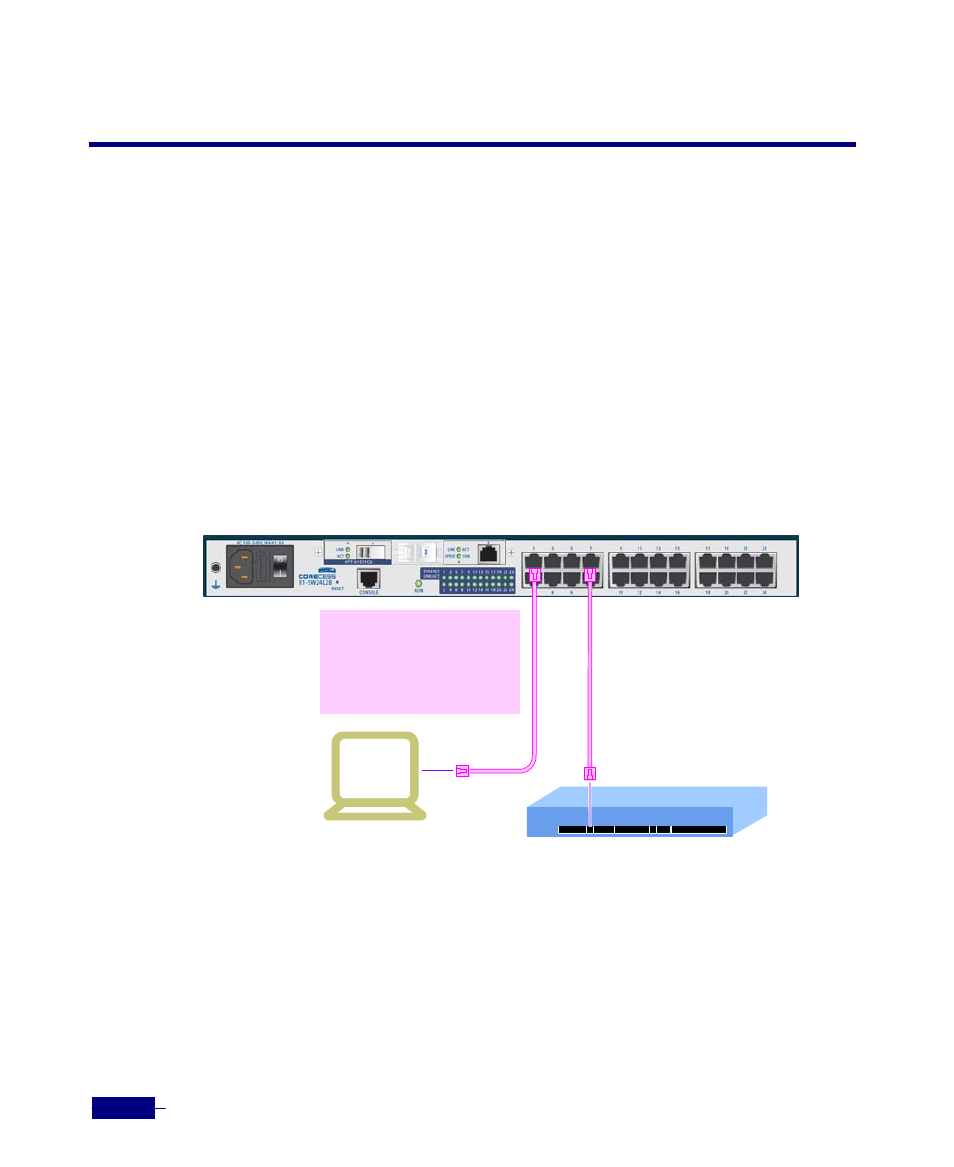

Using the RJ-45 UTP cable, connect the 10/100Base-TX port to the Fast Ethernet device as
follows:
R1-SW24L2B
PC
Hub or Switch
UTP cable
y
10Mbps : Category-3,4
y 100Mbps : Category-5
y 1000Mbps : Category-5+, 6
y MAX. cable length : 100m
