Connector & Cable Specifications

B-7

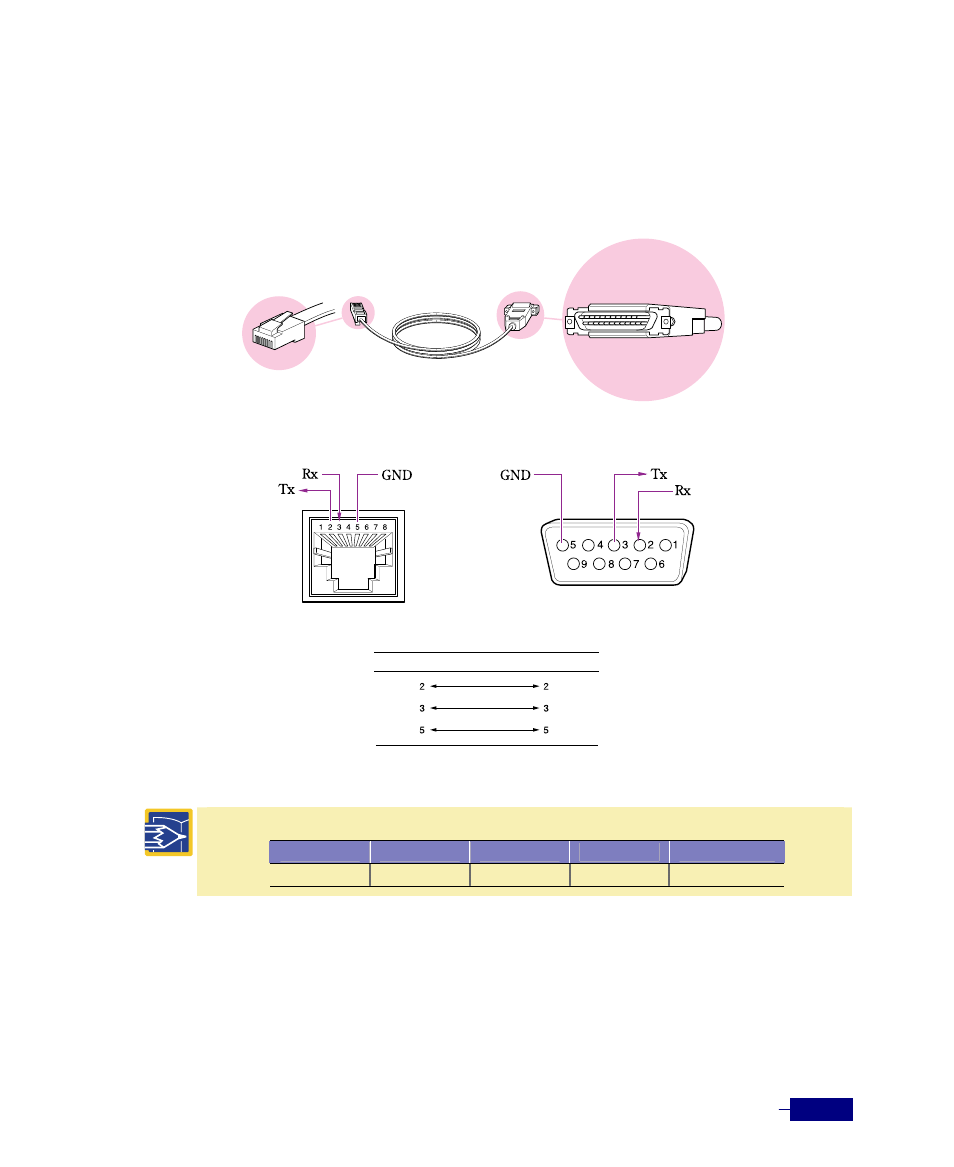

Console Cable

Console cable is used to connect the console port to a console terminal (ASCII terminals or PCs
equipped with terminal emulation programs). Console cable has an

RJ-45 connector

and a

DB-9

connector

at each ends.

Note:

Before connecting the console port, ensure that console terminal is configured as follows:

Baud rate

Data bit

Parity

Stop bit

Flow control

9600 8

None

Console Port

DB-9 Connector

Console Port

DB9 Connector
