Connector & Cable Specifications
B-5
Fiber Optic Cable
The system modules with fiber optic ports are connected using fiber optic cables as follows:
Table B-3 System Modules with Fiber Optic Ports
Module Connector Interface
Fiber
Optic
Cable
Wave Length(nm)
100/1000Base-SX
Multi-
mode
y Rx/Tx : 850nm OPT-N1ES1CD
OPT-N1EL1CD
OPT-N2CD
OPT-N2CS
Duplex LC
100/1000Base-LX
Single
mode
y Rx/Tx : 1310nm
OPT-N1ES1CD
OPT-N1EL1CD
Simplex SC/APC 1000Base-PX
Single
mode y Rx : 1310nm
y Tx : 1490nm

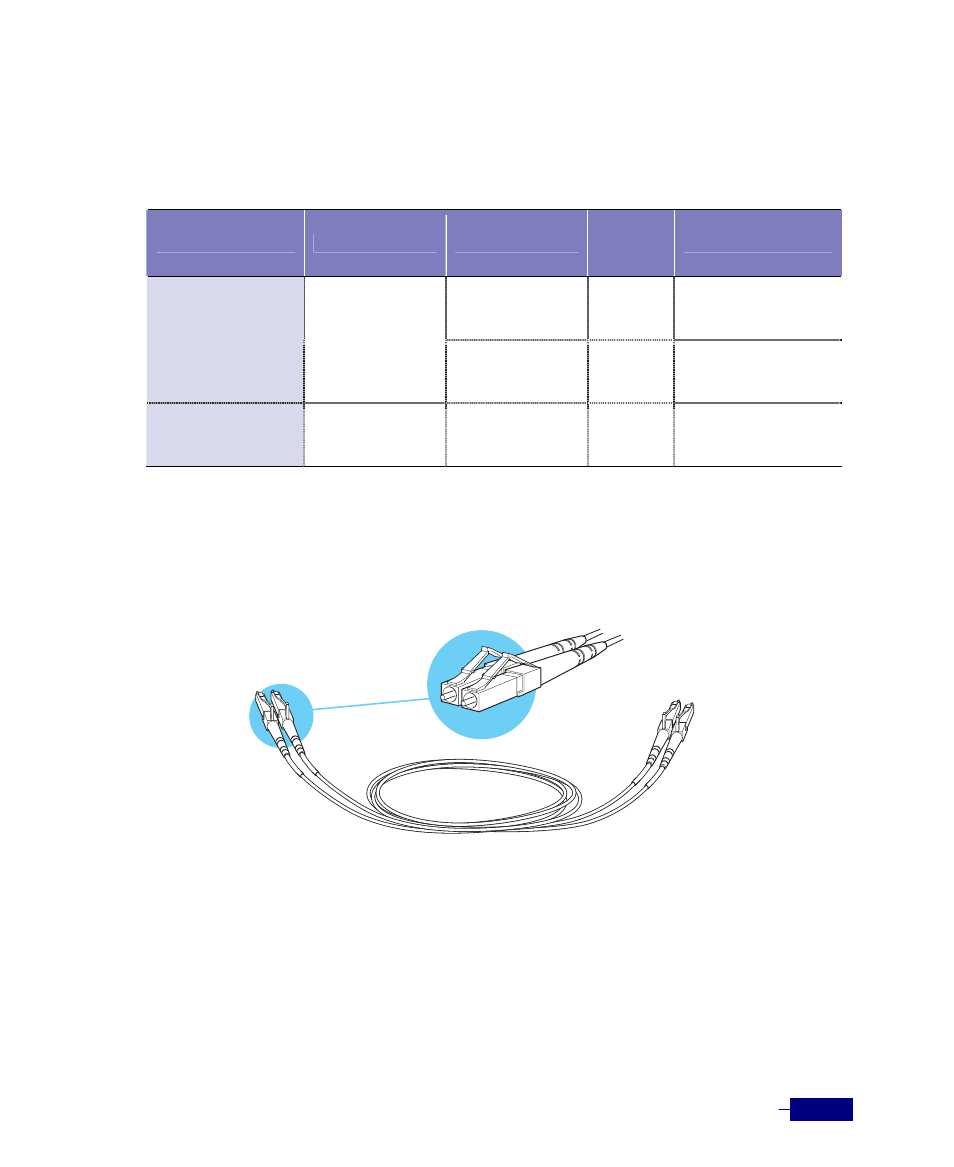

Duplex LC Fiber Optic Cable
The cable used for connecting the
1000Base-SX/LX SFP ports
on the
uplink modules
is fiber-optic
cable with
duplex LC connectors
at both ends (transmitting/receiving wavelength: 1310nm).
