Connector & Cable Specifications
B-3

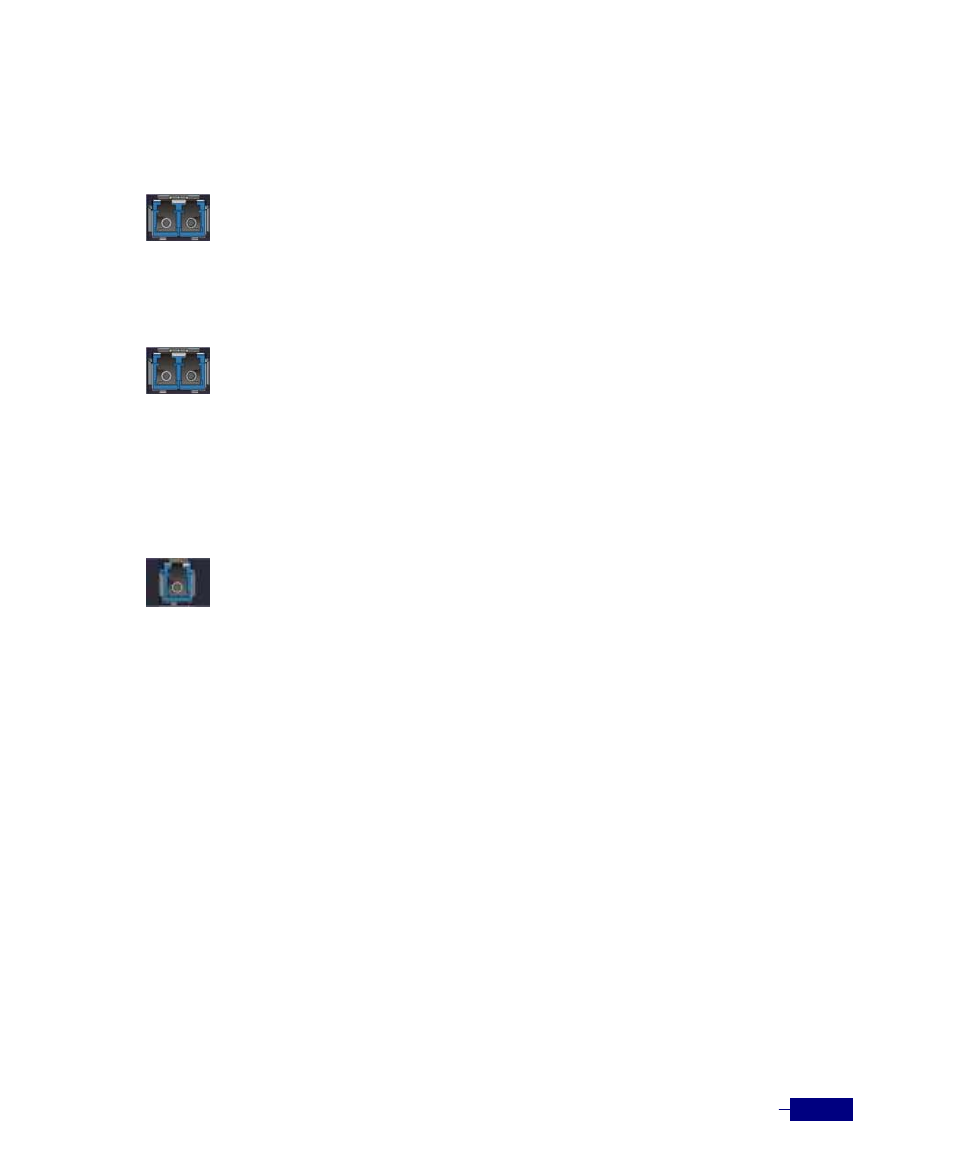

LC Connector
1000Base-SX Port
100/1000Base-SX ports
on the
uplink modules
have
Duplex LC connectors
. The cable
used for connecting these LC connectors is multi mode fiber optic cable
(transmitting/receiving wavelength: 850nm).
1000Base-LX Port
100/1000Base-LX ports
on the
uplink modules
have
Duplex LC connectors
. The cable
used for connecting these LC connectors is multi mode fiber optic cable
(transmitting/receiving wavelength: 1310nm).
SC/APC Connector
1000Base-PX Port
1000Base-PX ports
on the
OPT-N1ES1CD module
and
OPT-N1EL1CD module
have
simplex SC/APC connectors
. The cable used for connecting these SC connectors is
single mode fiber optic cable (transmitting/receiving wavelength: 1490/1310nm).
