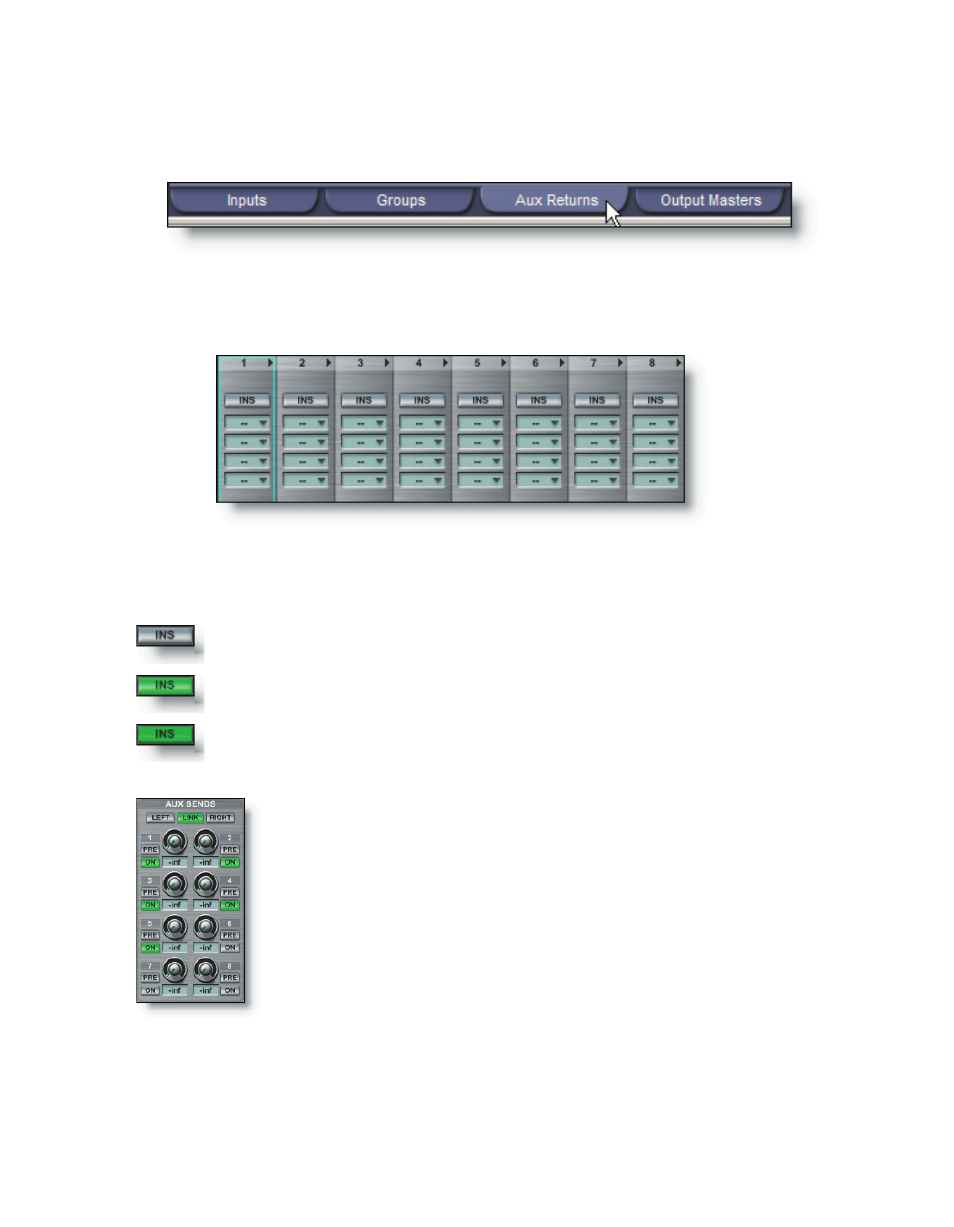

Select the Aux Returns tab to view the eight Aux Buss channel strip pairs.
These have a much simpler control interface. There are four insert slots for each of
the Aux Busses. Load a plug-in to an insert slot and control the level returned to the mix
at its selected Output Master channel pair.
In the same way as the Input channel strips, the inserted plug-in(s) can be toggled on
and off with the “INS” button at the top of the Aux Buss channel strip. The INS button
has three states.
Grey = Off. No Insert effect has been assigned
Bright Green = Active. Inserted effect is sent to the Output Master.
Dim Green = Inactive. Inserted effect is not sent to the Output Master.
To control the amount of the individual level sent to the shared
plug-in effect, go back to the Inputs tab and open a strip to Wide Chan-
nel view. Go to the Aux Sends section of the Wide Channel view. Every
Input and Group channel has up to eight Aux Sends available. More
than one, in fact many, mixer Input and/or Group channels can be
handled by each of the eight Aux Busses.
We have activated Aux Sends 1-5 for routing send levels from this
channel to five different Aux Busses each having a different effect.
Here any of the eight Aux Busses can be accessed by each of the available mixer in-
put channels. For example, we could have a reverb on Aux Buss 1, a chorus on Aux Buss
2, a stereo multi-tap delay on Aux Buss 3, a ThunderChicken FlapperWapperator VST on
Aux Buss 4, and a GigaPulse modeled resonance of a railroad boxcar on Aux Buss 5. We
