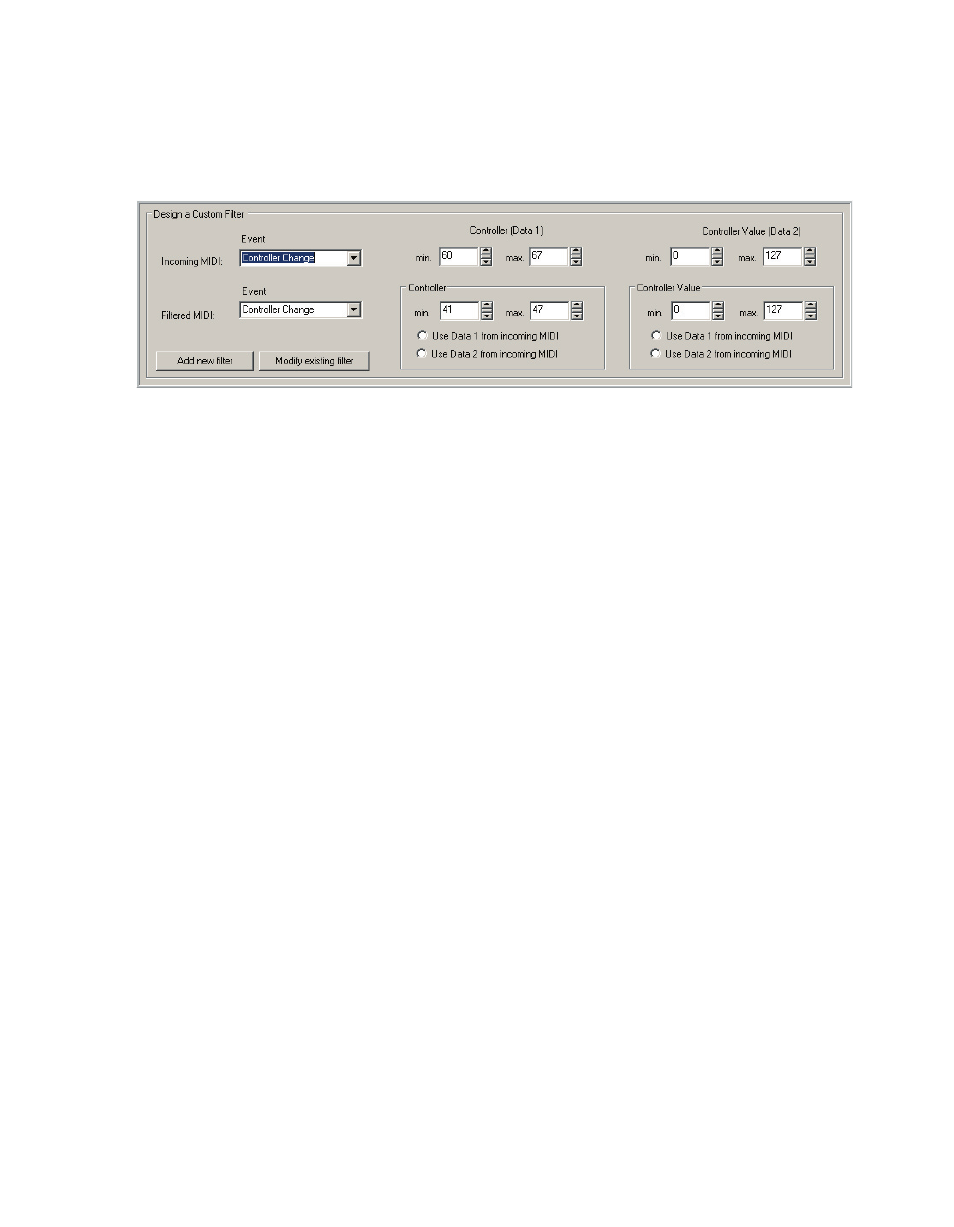

Design a Custom Filter
This is the section where MIDI rules are designed.
Incoming MIDI: Event
Incoming MIDI: Data-1
Incoming MIDI: Data-2
Select an incoming MIDI event type from the drop down list.
•This will change depending on the type of incoming MIDI event.
•For Note On & Off the data will be in Note Names. (C-1 – G9)
•For all the other controllers the data will be in MIDI control numbers. (0-127)
•Set a minimum and maximum value. Use the incoming MIDI data window at
the bottom of this window to help figure out what Notes or MIDI controller
numbers to use.
•This will also change depending on the type of incoming MIDI event.
•For Note On & Off the data will be Velocity Levels. (0-127)
•For all the other controllers, the data will be in MIDI control numbers. (0-127)
•Set a minimum and maximum value.
Filtered MIDI: Event
Select the outgoing MIDI event type from the dropdown list.
Use Data 1 from incoming:
This overrides the values entered here and lets whatever values are in the In-
coming Data-1 section determine the range instead
