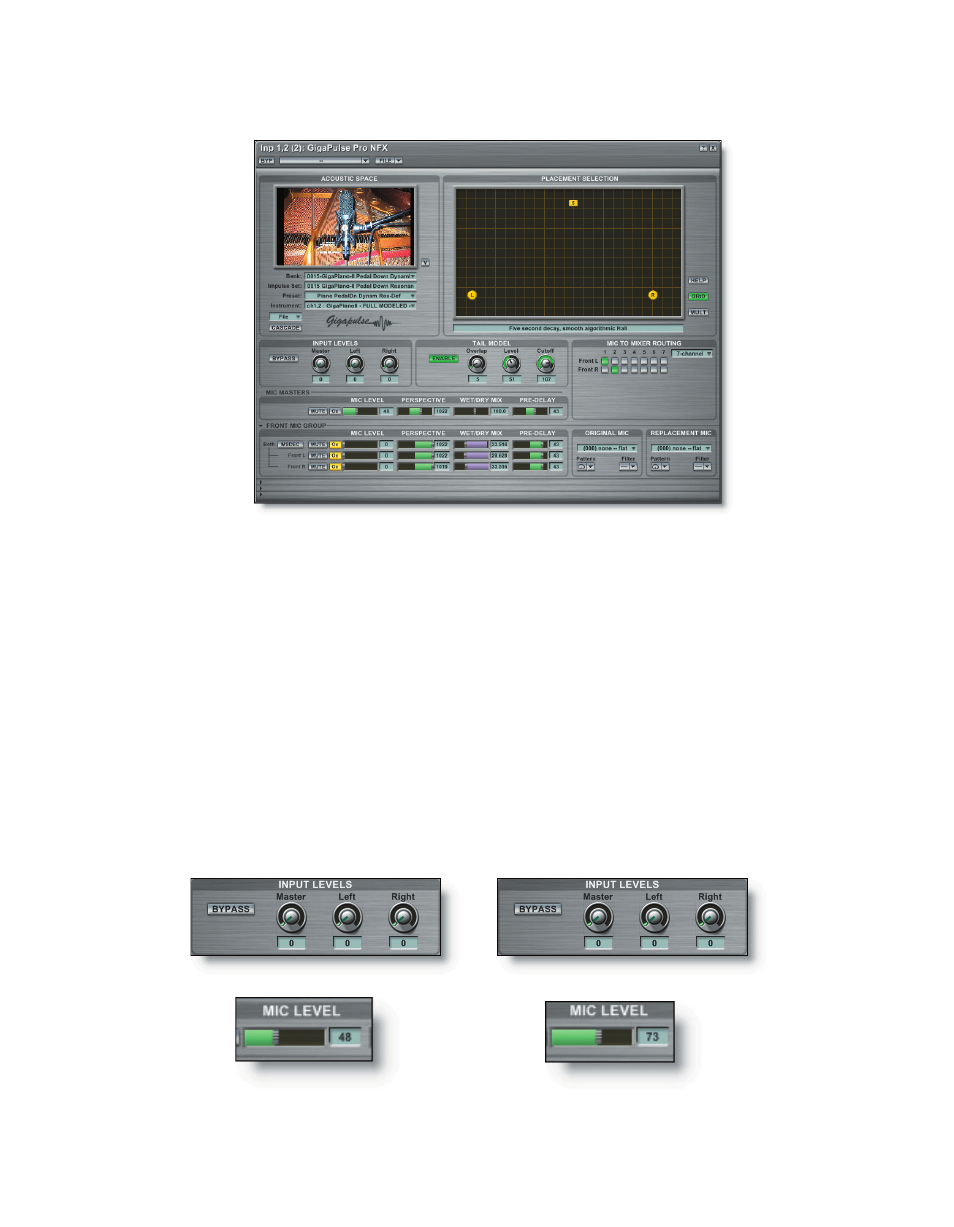

The ‘pedal down’ impulse (2nd insert in the series) is dynamically damped by the
pedal movement, and its wet/dry mix passes the damped ‘pedal up’ sound. The pedal
movement is assigned to automation on both the Input Level (pre convolution) and mic
level (post convolution). You will see this in the Pedal Down resonance presets. In the
DSP Station, expand the mixer channel 1, and open up the 2nd insert GigaPulse instance
using ‘Edit..’. You will see the movement of the input level and mic level when you press
down the sustain pedal.
Pedal Up Control Settings Pedal Down Control Settings
