DSP Station Output Masters
Narrow/Wide Views
Each DSP Station Output Master pair can be viewed in either narrow (default) or
wide (detailed) view. Both narrow and wide views provide access to the same functions.
The only extra benefit with wide view is more horizontal space is provided for the text
display fields.

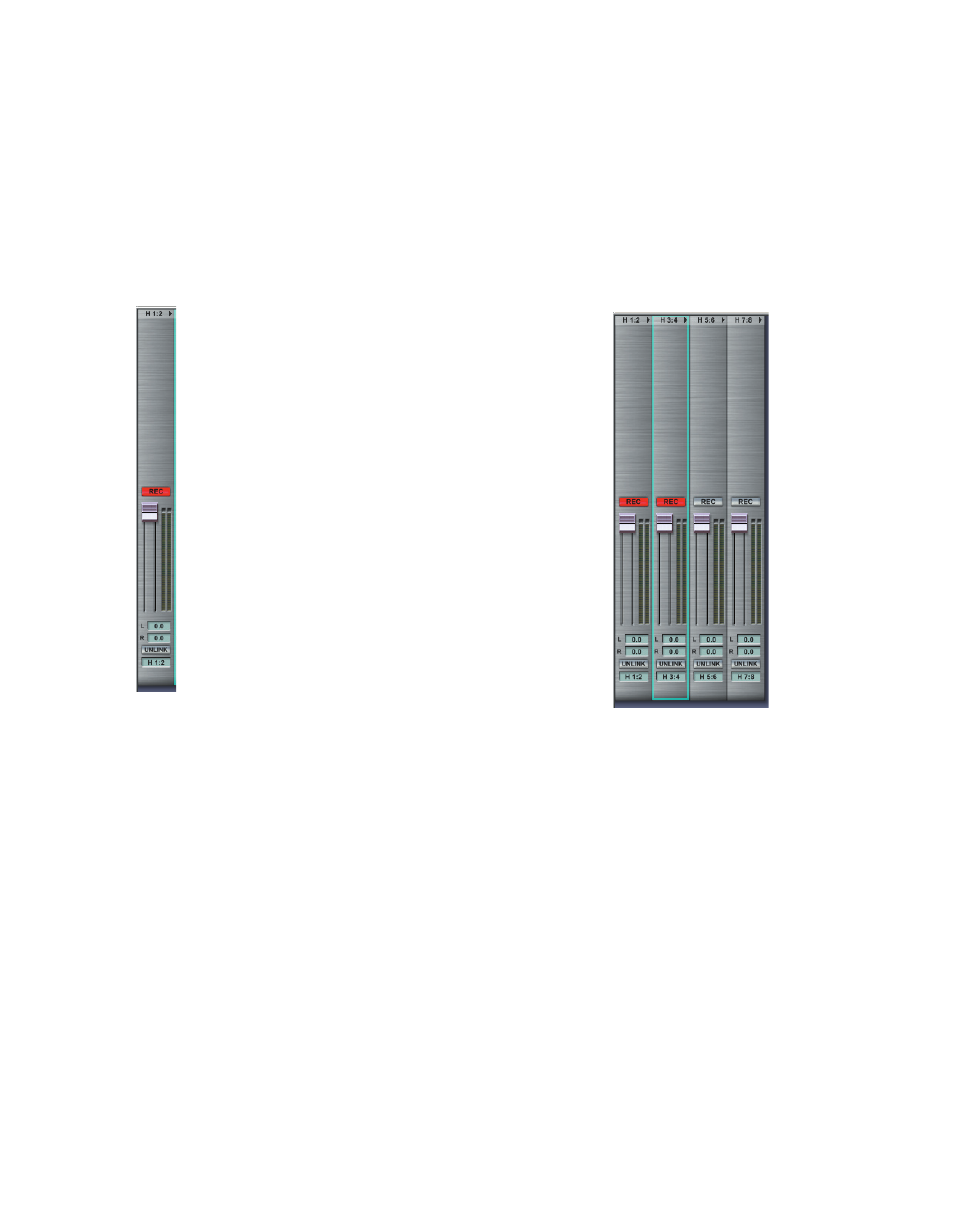

In the default narrow channel
view, all the controls such as fader
levels, input and output routing are
available. The wide view provides
wider view for the text fields.
To expand a channel to wide view,
click in the very top area where the
Aux Busses are displayed. To collapse
the Aux Buss down to narrow view,
click the same area. Narrow or wide
view is available on an Aux Buss by
Aux Buss basis.
Source Input Selection
There is no way to define any input source in the Output Master view. You must as-
sign an source in either the Input, Group, or Aux Buss Channel strips. The Output Chan-
nel numbers correspond with the numbered Output Masters in this view.
Record Arm Button
Enable a track for recording using the capture function. There are three possible
states for each of these buttons.
• A grey button indicates the current Output Master channel is not armed. This is
the default state of a channel strip.
• A dim red button indicates that the respective Output Master channel is armed
and ready to record to disk.
• A bright red button indicates that the respective Output Master channel is actively
recording.
