DSP Station Input Channels
Narrow/Wide Views

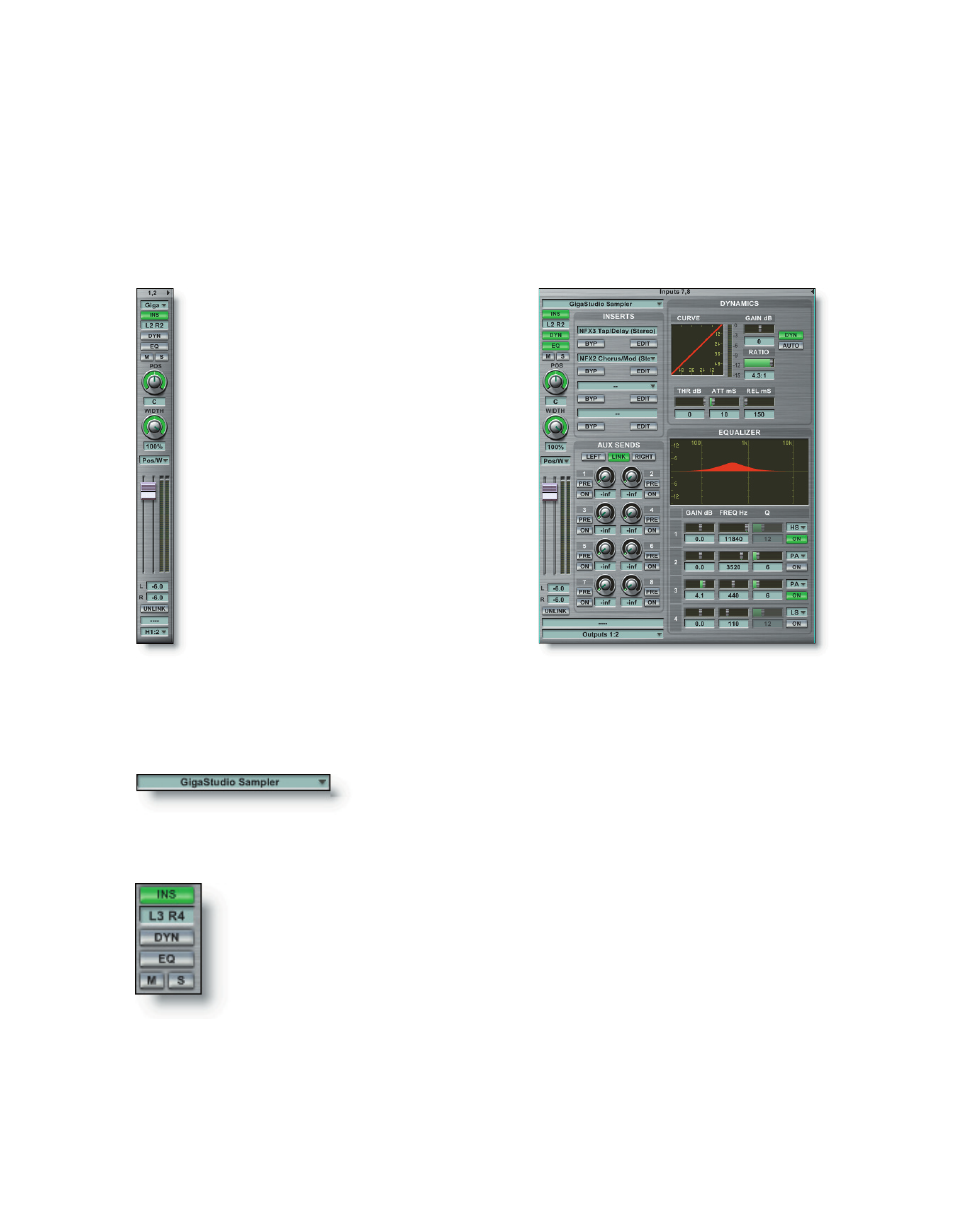

Each DSP Station Input channel pair can be viewed in either narrow (default) or wide
(detailed) view. Narrow view provides access to commonly used functions, while Wide
view enables you to access the inserts, aux sends, dynamics, and EQ control settings.
To expand a channel to wide view,
click in the very top area where the
channels are displayed. To collapse
the channel down to narrow view,
click the same area. Narrow or wide
view is available on a channel by
channel basis.
It is possible to have more than
one channel strip set to wide view at
one time.
Source Input Selection
audio hardware input channels.
Select a source input from either the GigaStudio Sam-
pler port channels or from a GSIF 2 input available on your
Activation Buttons
Activate/by-pass the inserts, dynamics, and equalizer. There are
three possible states for each of these buttons.
• A grey button indicates that no effects are loaded, activated, or
bypassed. This is the default state of a channel strip.
• A bright green button indicates that the respective insert effect,
dynamics, or EQ is activated and is currently affecting the incom-
ing audio signal
.
• A dim green button indicates that the respective insert effect, dy-
namics, or EQ is activated, but is currently bypassed.
The function of each element of the Input Channel strip is described in the following
sections.
