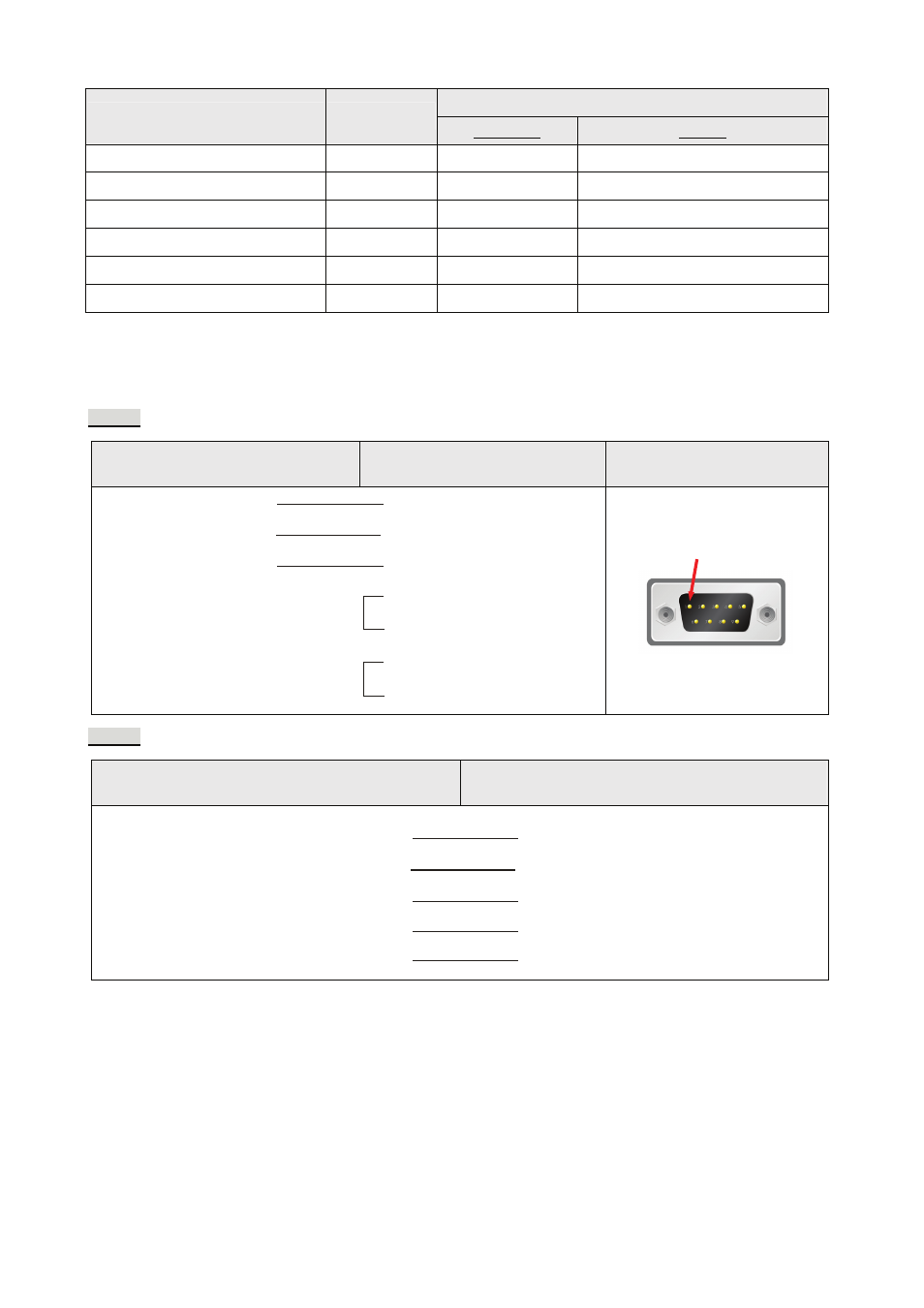

Read/Write Range
Contact type Format
Word No. Bit No.
Link Relay Bn N/A n: 0-1FFF
Annunciator Fn N/A n: 0-2047
Timer Contact TSn N/A n: 0-2047
Timer Coil TCn N/A n: 0-2047
Counter Contact CS-n N/A n: 0-2047
Counter Coil CC-n N/A n: 0-2047
¾ Xn, Yn, Bn : n is in hexadecimal.
C. Connections (Connector Pinouts)
RS-232
DOP Series
9 pin D-SUB male (RS-232)
Controller
9 pin D-SUB male (RS-232)
Controller
9 pin D-SUB male (RS-232)
RXD (2) (2) TXD
TXD (3)
GND (5)
( 3) R XD
(5 ) SG
(8) RTS
(7) CTS
(4) DSR (D R)
(6) DTR (ER)
Top View
RS-422
DOP
9 pin D-SUB male (RS-422)
Controller
Cable Connector (RS-422)
RXD+ (2) S DA ( 1)
RXD- (1)
TX D+ (3)
S DB ( 2)
RDA ( 3)
TXD- (4) RDB (4)
GND (5) S G
Pin1
