Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
Revision January, 2008, Doc. Name: 2007PDD23000007 1-13

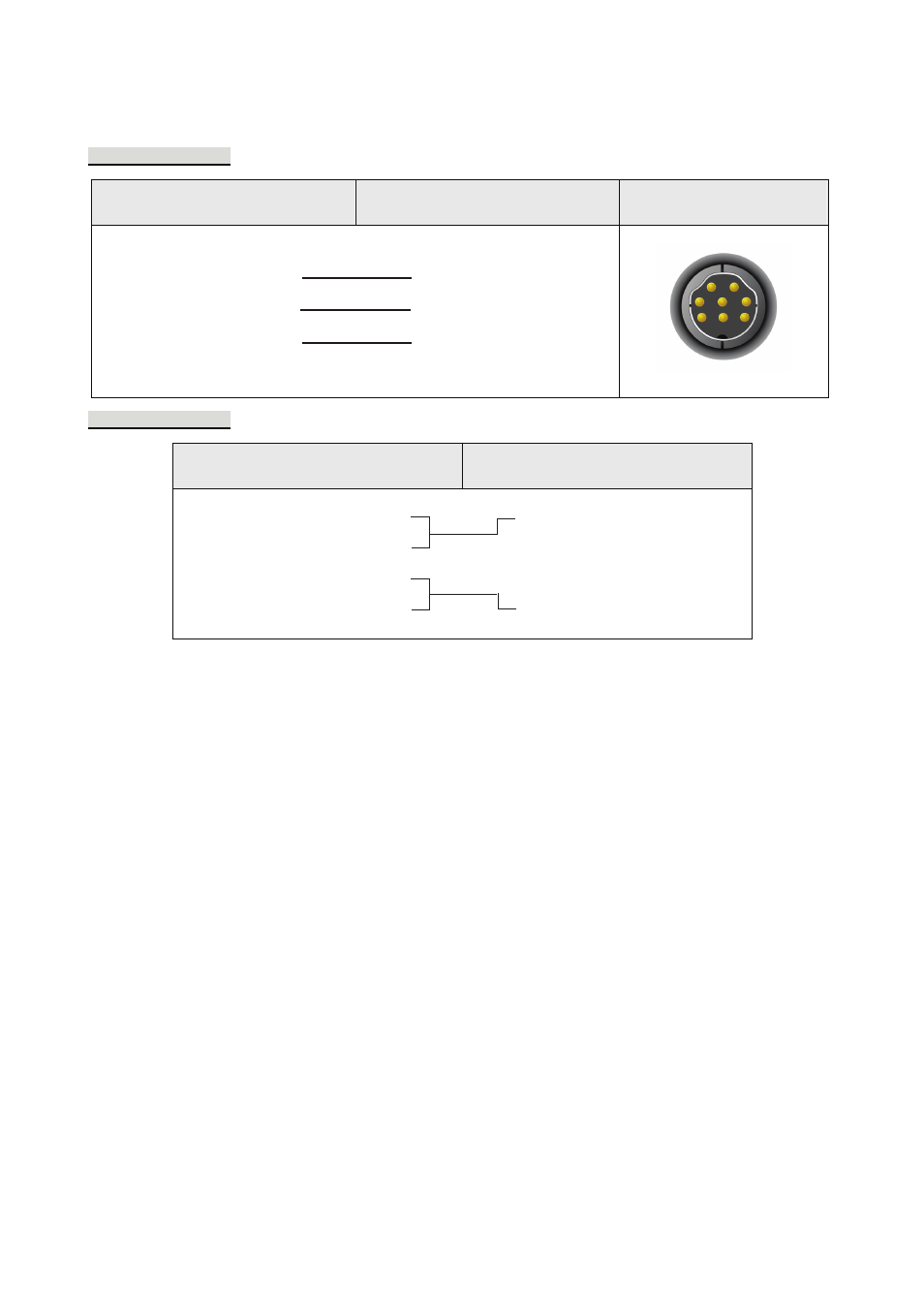

C. Connections (Connector Pinouts)
RS-232 Connection
DOP Series
9 pin D-SUB male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
RXD (2) (5) TXD
TXD (3)
GND (5)
(4) RXD
(8) GND
Top View
RS-485 Connection
DOP Series
9 pin D-SUB male (RS-485)
Controller
RS-485 cable connector
R XD + ( 2) D +
TXD+ (3)
R XD - (1 )
TXD- ( 4) D -
1
4 5
8
