Delta Electronics Network Device DOP-A/AE/AS User Manual
Page 17
Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
1-16
Revision January, 2008, Doc. Name: 2007PDD23000007

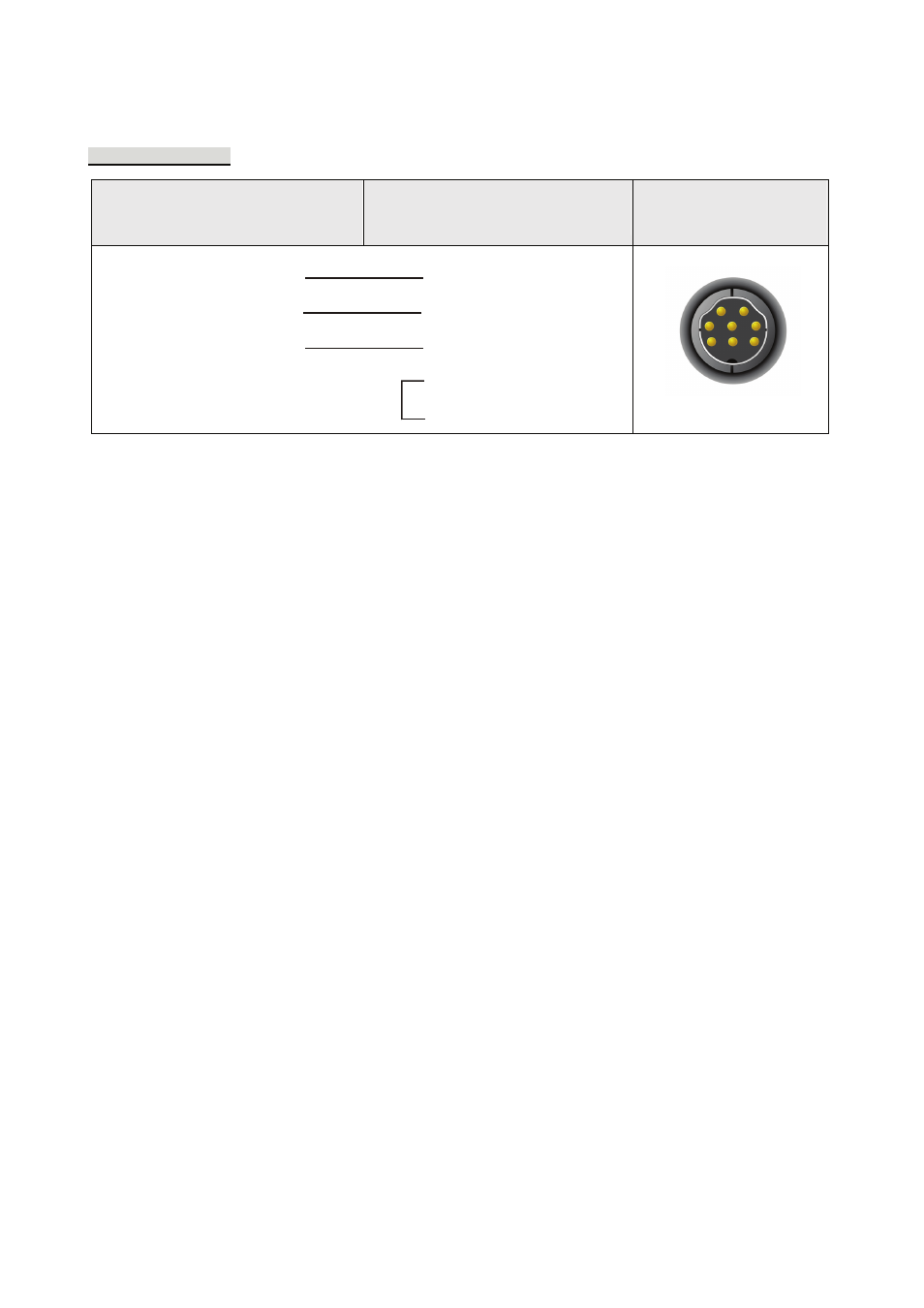

C. Connections (Connector Pinouts)
RS-232 Connection
DOP Series
9 pin D-SUB male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
Controller
8 pin Mini DIN male
(RS-232)
RXD (2)
(7) TXD
TXD (3)
GND (5)
(4) RXD
(2) GND
(3) RTS
(6) CTS
Top View
1
4 3
7
2
6
