Delta Electronics Network Device DOP-A/AE/AS User Manual
Page 114
Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
Revision January, 2008, Doc. Name: 2007PDD23000007
1-113

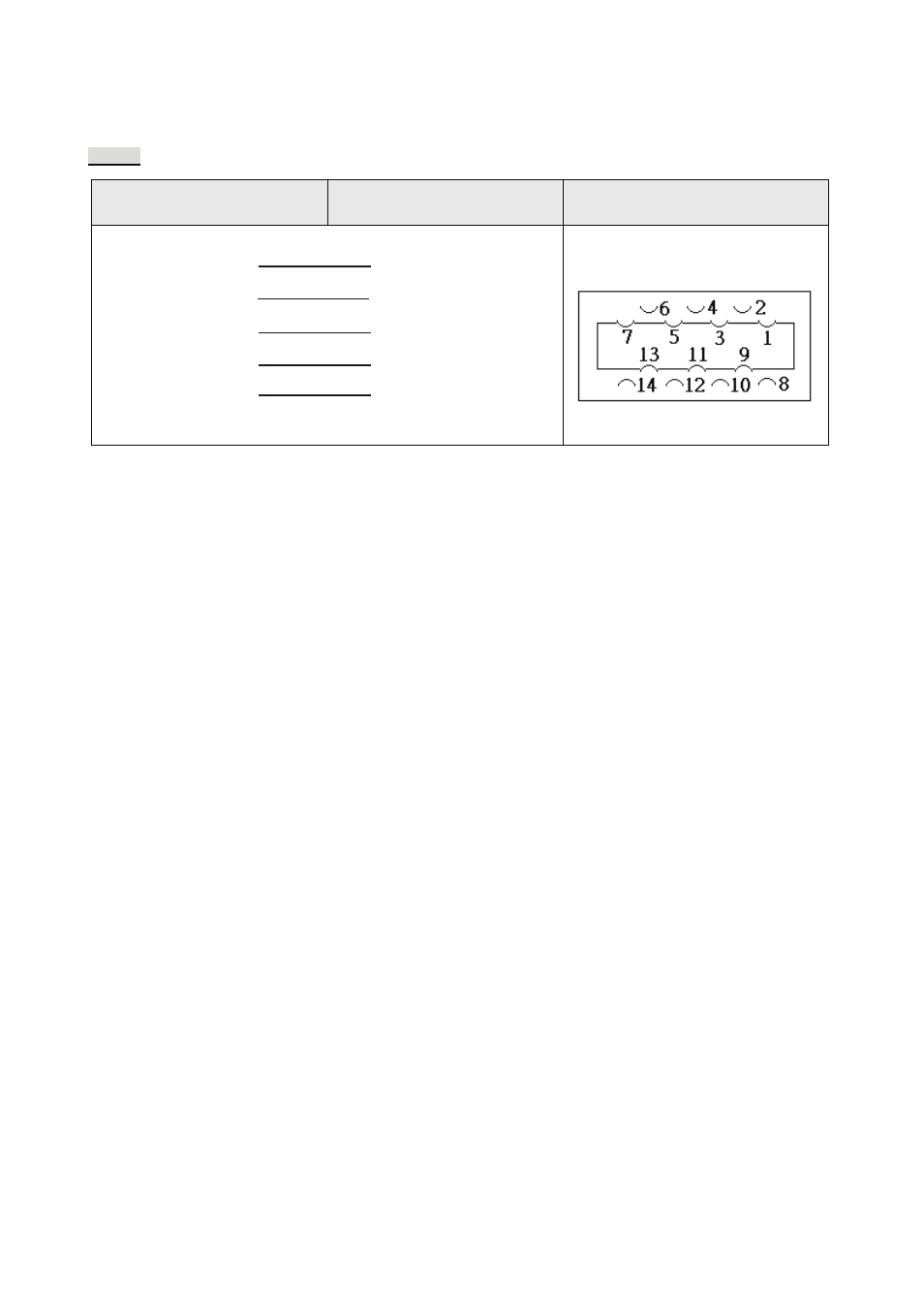

C. Connections (Connector Pinouts)
RS-422
DOP
9 pin D-SUB male (RS-422)
Controller
14 pin special male (RS-422)
Controller
14 pin special male (RS-422)
RXD- (1)
(9) TXD (B)
RXD+ (2)
TXD+ (3)
(2) TXD (A)
(4) RXD (A)
TXD- (4)
(11) RXD (B)
GND (5)
(14) GND
Cable (PLC side (J1), male)
.
Top View
