Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series

1-80

Revision January, 2008, Doc. Name: 2007PDD23000007

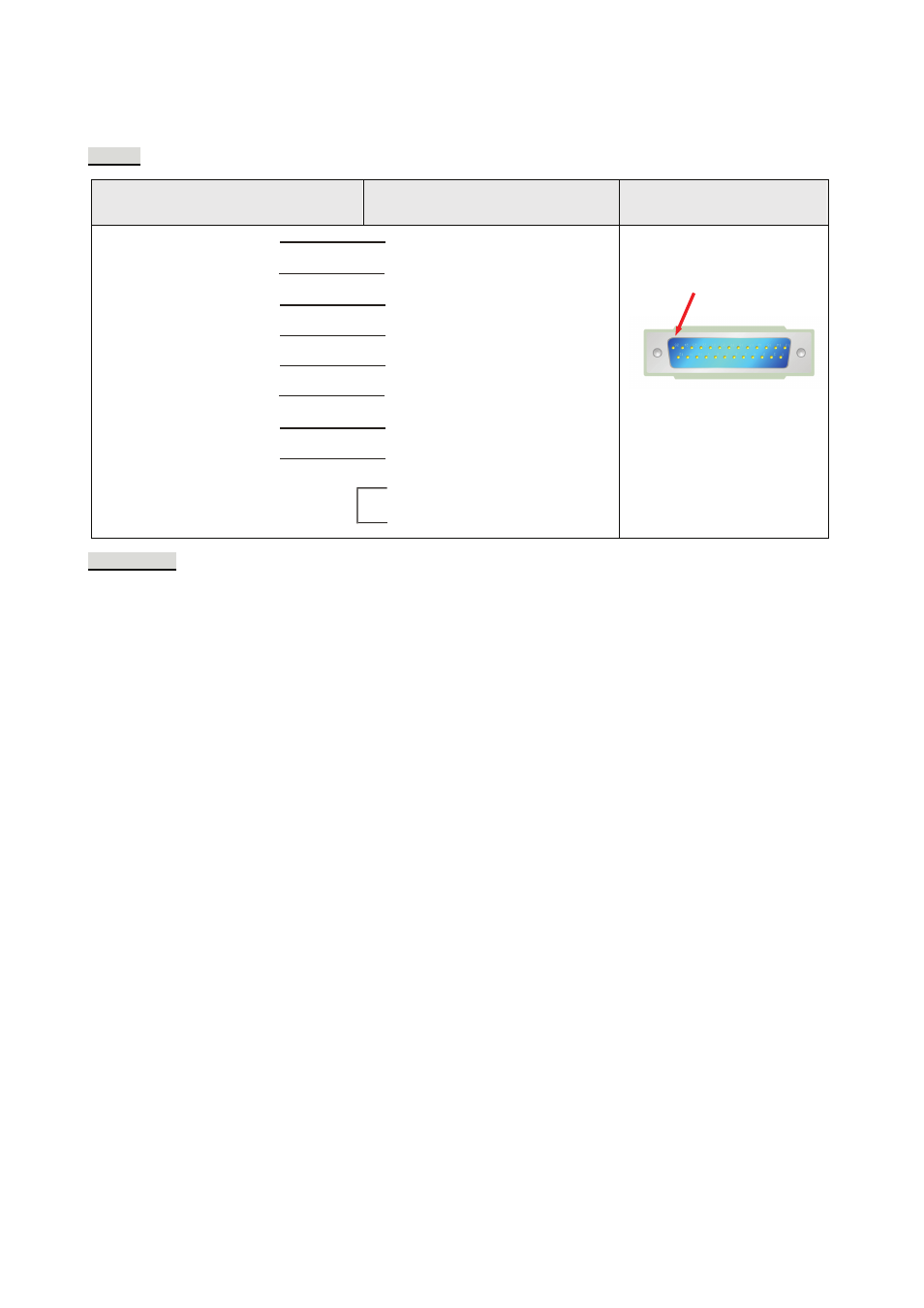

C. Connections (Connector Pinouts)

RS-422

DOP Series

9 pin D-SUB male (RS-422)

Controller

25 pin D-SUB male (RS-422)

Controller

25 pin D-SUB male(RS-422)

Pi n 2 ( RXD +)

Pi n3 SDB ( TXD +)

Pi n 1 ( RXD-)

Pi n 4 ( TXD -)

Pi n16 SDA (TXD-)

Pi n 15 RDA (RX D-)

Pi n 3 ( TXD +)

Pi n 2 RDB (RX D+)

Pi n 7 ( RTS +)

Pi n4 (CTS+)

Pi n 8 ( CTS+)

Pi n 6 ( RTS -)

Pi n5 (RTS+)

Pi n 17 (CT S-)

Pi n 9 ( CTS -)

Pi n 18 (RTS-)

Pi n 20

Pi n 21

Explanation

How to set File Register (R) for Mitsubishi A serial PLC:

1. Startup MELSOFT series GX Developer.

2. Open “Project Data List” windows. (“View” Option)

3. Double click Parameter \ PLC Parameter, and open “Setting” window.

4. Set Memory Capacity \ File Register (0 ~8).

5. Press “End” button on the bottom and complete the setting.

6. Execute OnLine\Write to PLC.

7. Enable the “Parameter \ PLC/Network” and “File register \ Main” option (check the check box next to

“Parameter \ PLC/Network” and “File register \ Main”).

8. Press “Execute” button.

9. Complete

Pin1
