Delta Electronics Network Device DOP-A/AE/AS User Manual
Page 44
Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
Revision January, 2008, Doc. Name: 2007PDD23000007
1-43

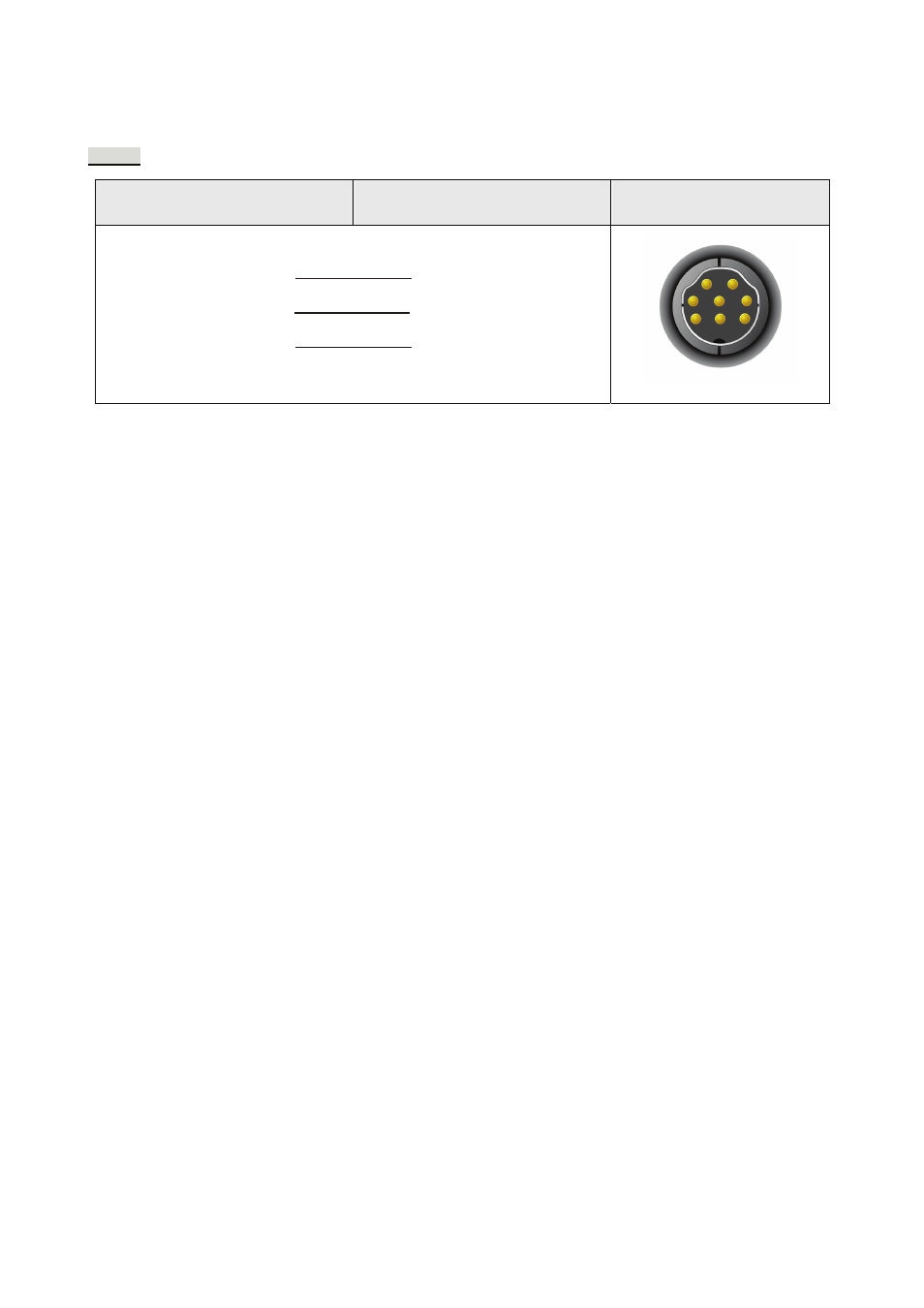

C. Connections (Connector Pinouts)
RS-232
DOP Series
9 pin D-SUB male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
RXD (2)
(8) TXD
TXD (3)
GND (5)
(4) RXD
(2) GND
Top View
2
4
8
