Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
1-48
Revision January, 2008, Doc. Name: 2007PDD23000007

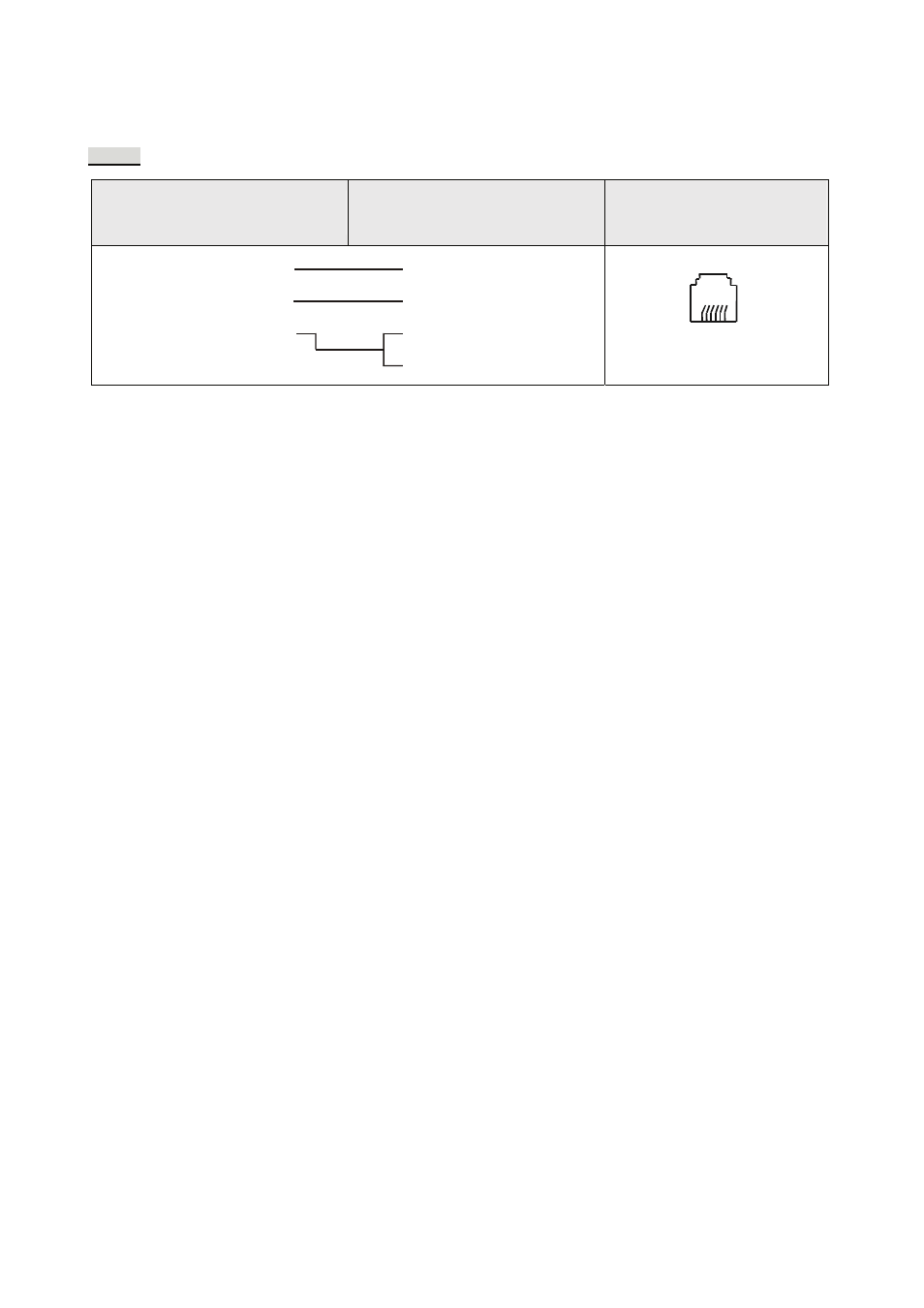

C. Connections (Connector Pinouts)
RS-232
DOP
9 pin D-SUB male (RS-232)
Controller
RJ-11 cable connector (RS-232)
Controller
RJ-11 cable connector
(RS-232)
RXD(2)
TXD(3)
GND(5)
(4)TXD
(3)RXD
(1)GND
(6)GND
Top View
1 - 6
