Delta Electronics Network Device DOP-A/AE/AS User Manual
Page 67
Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
1-66
Revision January, 2008, Doc. Name: 2007PDD23000007

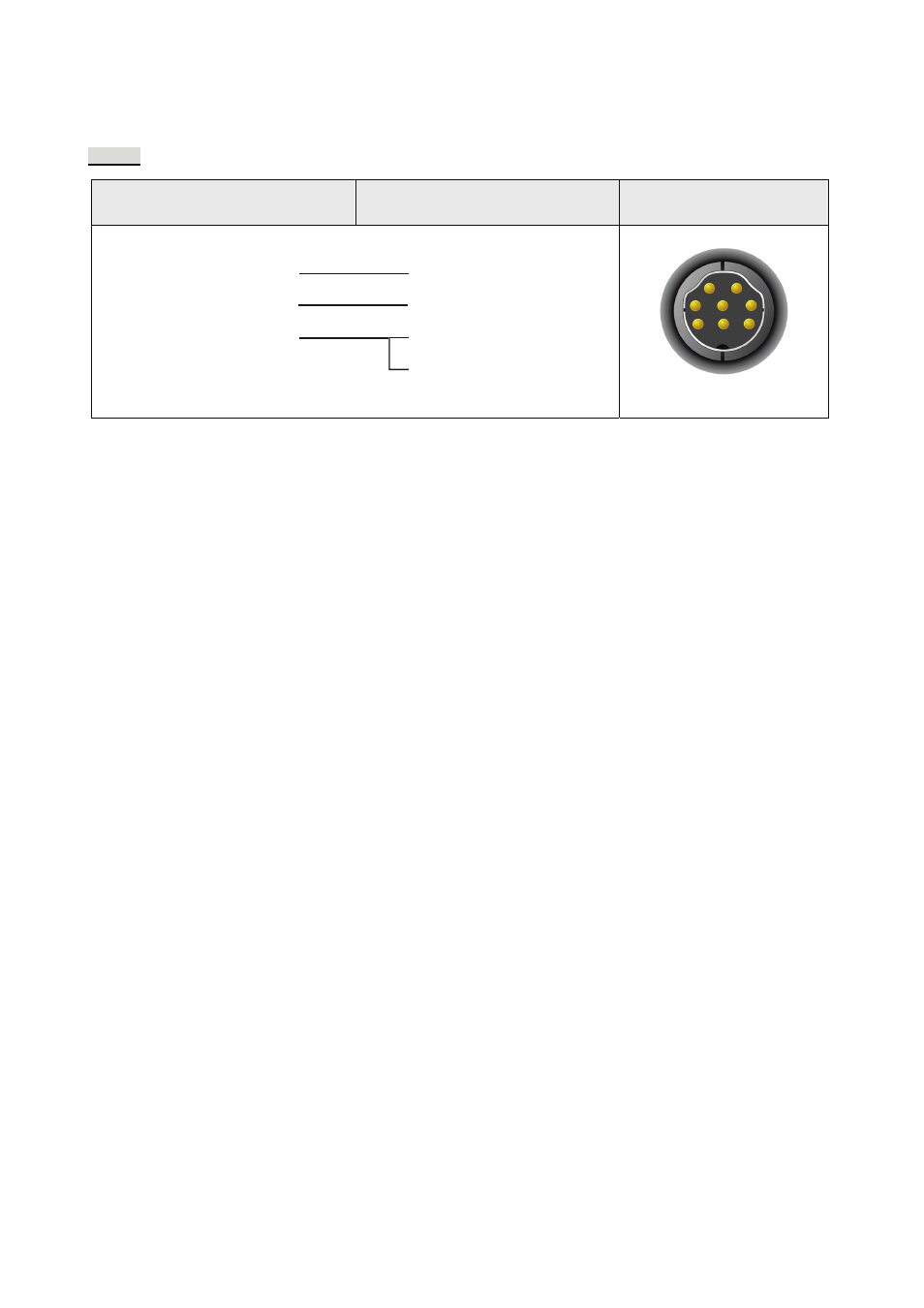

C. Connections (Connector Pinouts)
RS-232
DOP
9 pin D-SUB male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
Controller
8 pin Mini DIN male (RS-232)
RXD (2)
(2) TXD
TXD (3)
GND (5)
(7) RXD
(3) GND
(6) GND
Top View
2
3
6
7
