Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
1-64 Revision January, 2008, Doc. Name: 2007PDD23000007

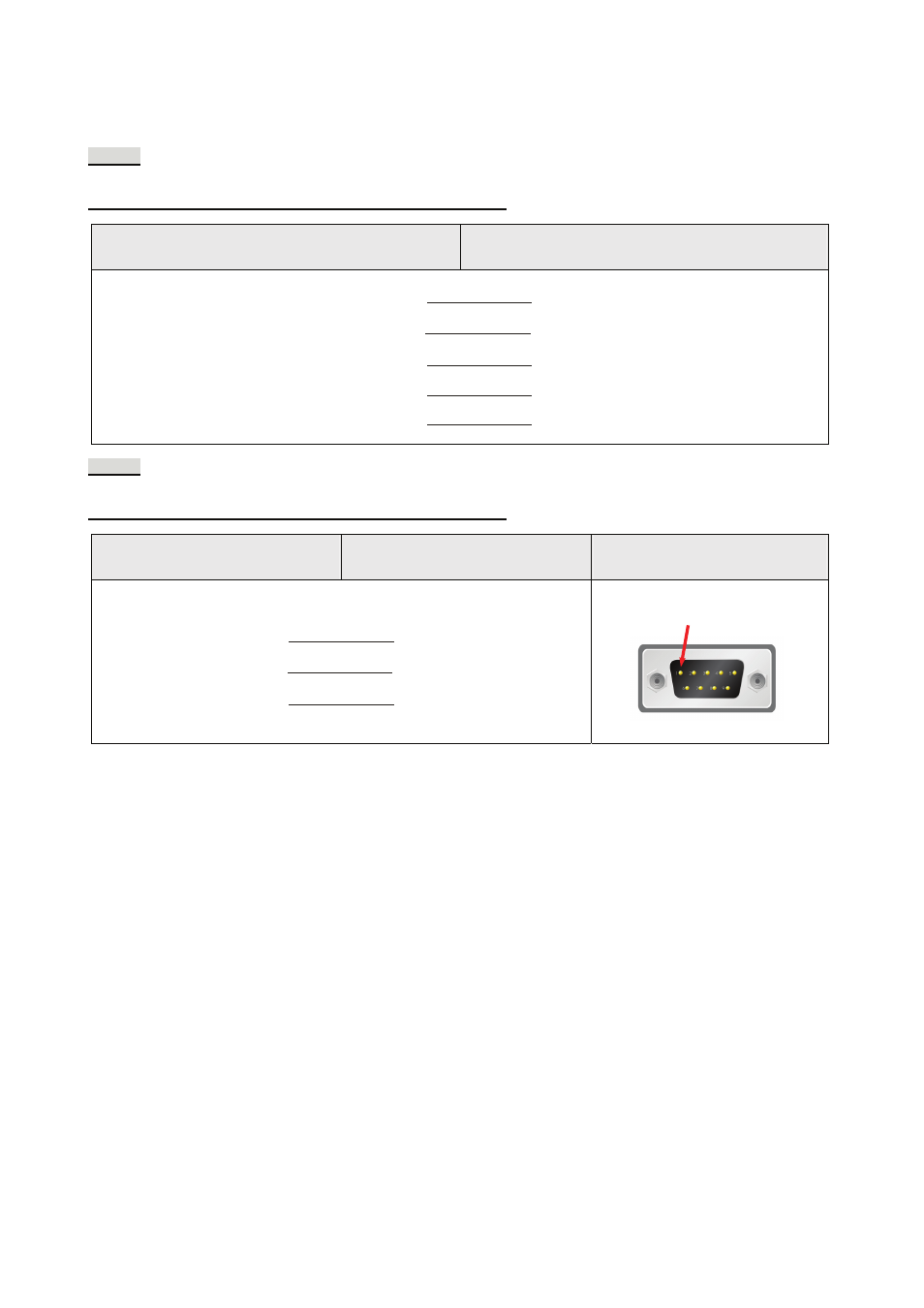

C. Connections (Connector Pinouts)
RS-422
via XGL-CH2A CNET communication module (Channel 2)
DOP
9 pin D-SUB male (RS-422)
Controller
Cable Connector (RS-422)
RX D+ (2) TX+
RX D- ( 1)
TX D- (4)
TX-
R X-
TX D+ (3) R X+
G ND (5) S G
RS-232
via XGL-CH2A CNET communication module (Channel 1)
DOP
9 pin D-SUB male (RS-232)
Controller
9 pin D-SUB male (RS-232)
Controller
9 pin D-SUB male (RS-232)
R XD (2) (3) TXD
T XD ( 3)
G ND (5)
(2 ) RXD
(5 ) GND
Top View
Pin1
