Delta Electronics Network Device DOP-A/AE/AS User Manual
Page 125
Delta DOP Series HMI Connection Manual|DOP-A/AE/AS Series
1-124
Revision January, 2008, Doc. Name: 2007PDD23000007

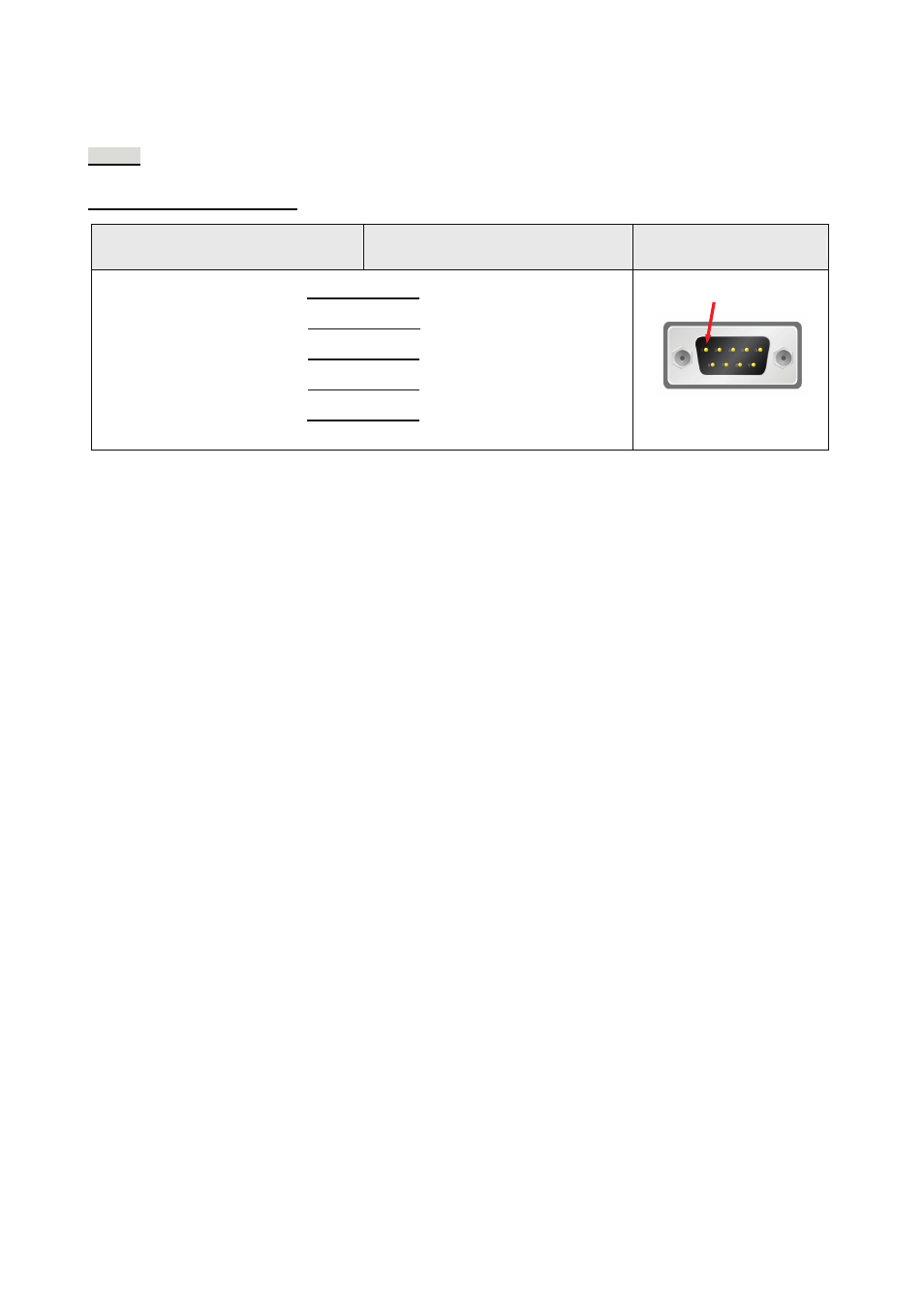

C. Connections (Connector Pinouts)
RS-232
HMI connects to PC Adaptor
DOP
9 pin D-SUB male
Controller
9 pin D-SUB female
Controller
RXD (2)
(3) TXD
TXD (3)
GND (5)
(2) RXD
(5) GND
(8) CTS
(7) RTS
RTS (7)
CTS (8)
Top View
Pin1
