Settings

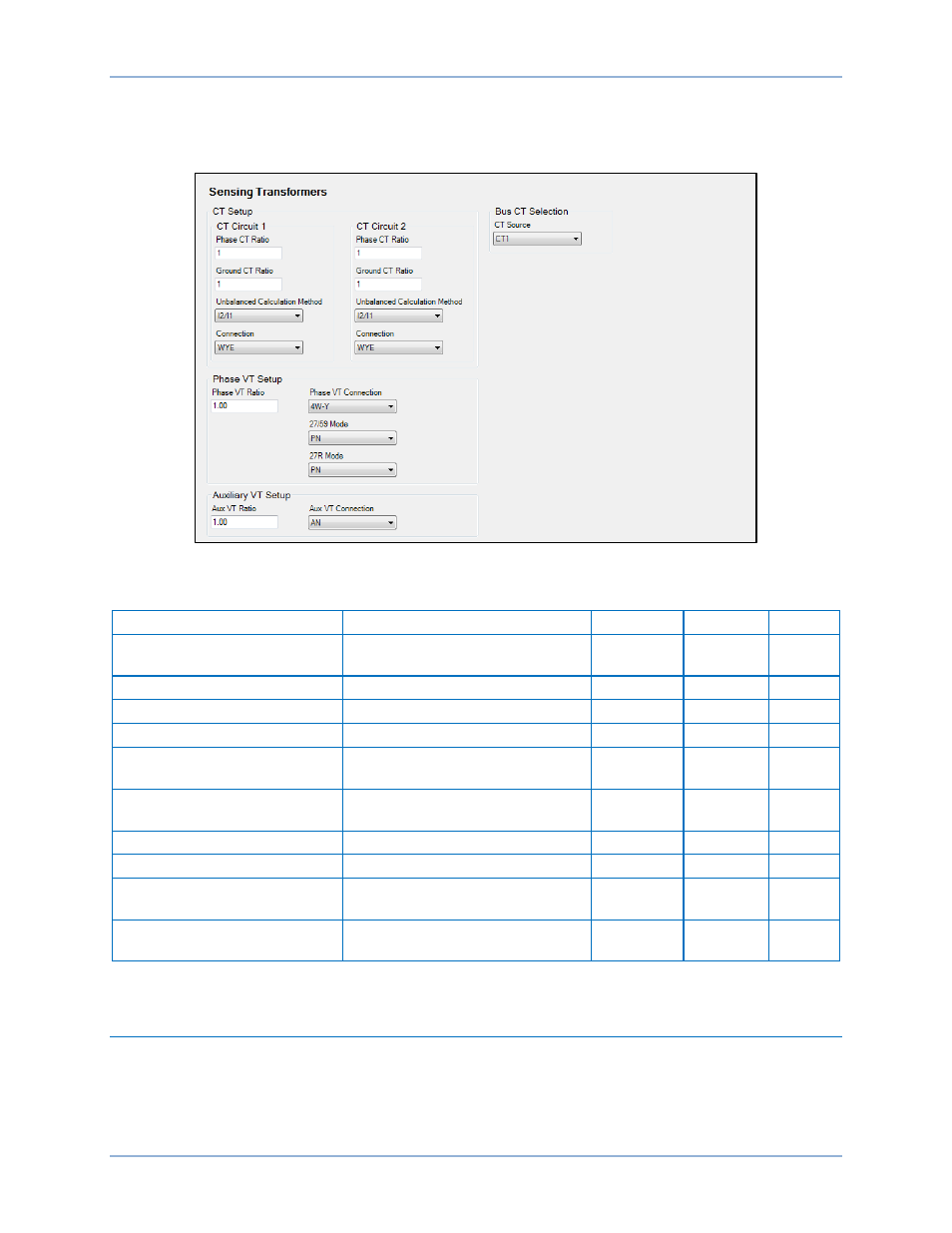

Sensing transformers settings are configured on the Sensing Transformers settings screen (Figure 269)
in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 113.
Figure 269. Sensing Transformers Settings Screen
Table 113. Sensing Transformers Settings
Setting Range Increment Unit Default
Phase/Ground CT Ratio 1 to 50,000 0.01
turns
ratio
1
Unbalanced Calculation Mode I2/I1 or Average n/a n/a I1/I2
CT Connection WYE, DAB, or DAC n/a n/a WYE
CT Source
*
CT1 or CT2 n/a n/a CT1
Phase VT Ratio 1 to 10,000 0.01
turns
ratio
1
Phase VT Connection
AB, BC, CA, AN, BN, CN, 3W-D,
or 4W-Y
n/a n/a 4W-Y
27/59 Mode PP or PN n/a n/a PN
27R Mode PP or PN n/a n/a PN
Aux VT Ratio 1 to 10,000 0.01
turns
ratio
1
Aux VT Connection
AB, BC, CA, AN, BN, CN, or
Ground
n/a n/a AN
* For protection systems equipped with two sets of CTs.
Transformer Setup
The BE1-11g requires information about the transformer windings to provide differential metering and
differential protection. See the
Phase Current Differential (87) Protection chapter for more information.
Transformer setup is accomplished on the Sensing Transformers settings screen (Figure 270) in
BESTCOMSPlus. Setting ranges and defaults are summarized in Table 114.
